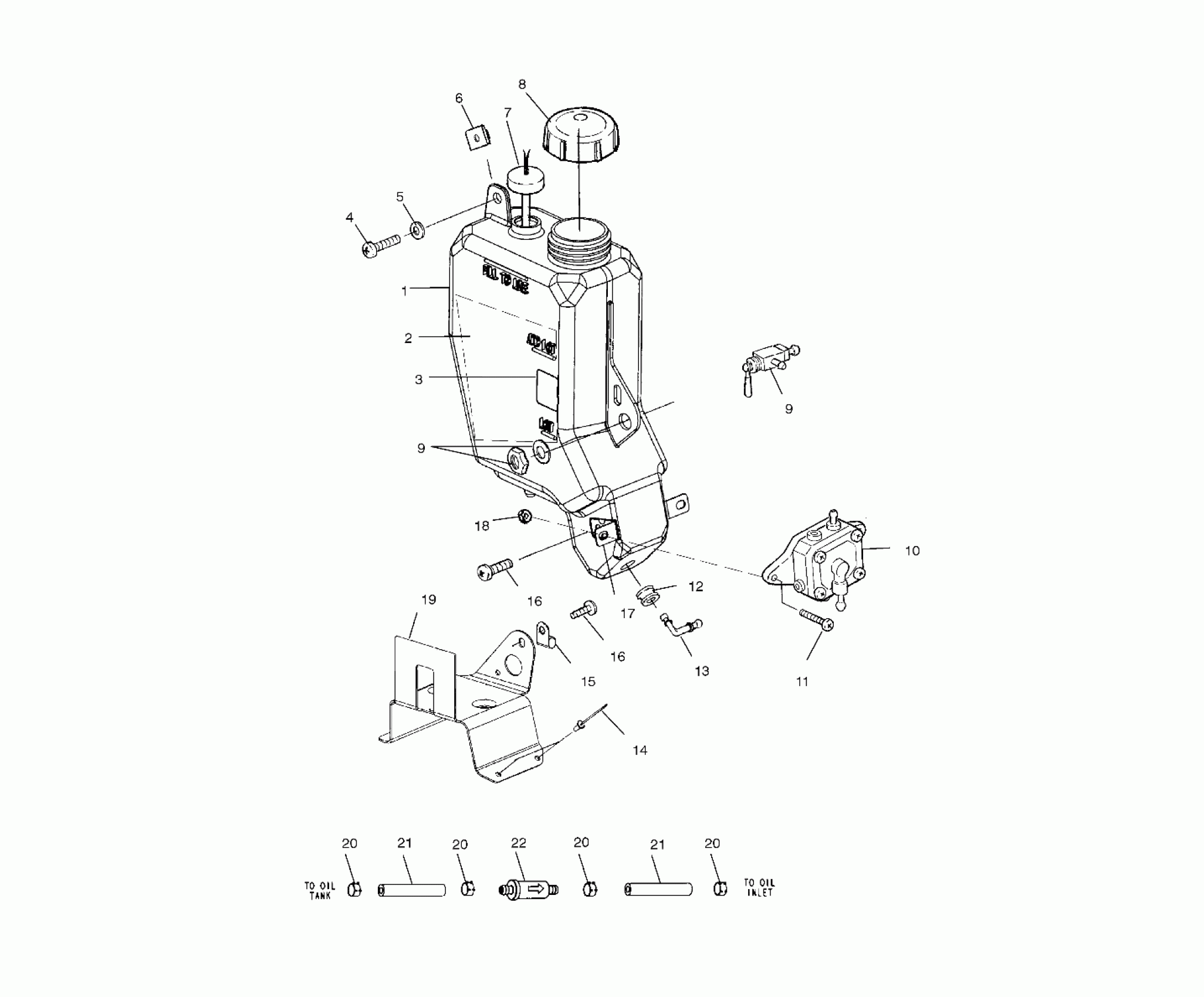

Polaris TRAIL RMK 136 - S02SR5BS OIL TANK - S02SR5BS (4969366936B012) Diagram

#

Description
Price

1

ASM-OIL TANK W/FOIL,FC

1253352

Unavailable

2

FOIL,OIL TANK

5811934

Unavailable

3

DECAL,FUEL SHUT-OFF

7077442

Unavailable

4

BOLT(10)

7512276

$4.79

5

WASHER,WROUGHT(10)

7558302

$1.59

6

Nut

7670096

$1.59

7

SENSOR,OIL LEVEL

4110134

$72.84

8

CAP-OIL,VENTED/CUSTOM COLOR

1240094

$36.41

9

Valve, Fuel Shut-Off (See Engine Mounting Pg. C1, Ref. 22)

-------

Unavailable

9

Valve, Fuel Shut-Off (See Engine Mounting Pg. C1, Ref. 22)

-------

Unavailable

10

Asm., Fuel Pump (See Engine Mounting Pg. C1, Ref. 19)

-------

Unavailable

11

Screw

7517264

$3.99

12

GROMMET-TANK FITTING(10)

7052028

$6.39

13

FTTNG,90 D.PRESS-ON

7052208

$6.39

14

RIVET-3/16-.090-.290

7661637

$1.49

15

CLIP,J

7080884

$3.99

16

SCREW(10)

7517615

$3.19

16

SCREW(10)

7517615

$3.19

17

BRKT,FUEL PUMP MOUNT-Z

5242680

$9.91

18

NUT-LOCK(10)

7542122

$1.49

19

BRKT-OIL TANK W/BRIDGE

5244339

$16.47

20

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

20

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

20

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

20

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

21

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

21

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

22

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65
