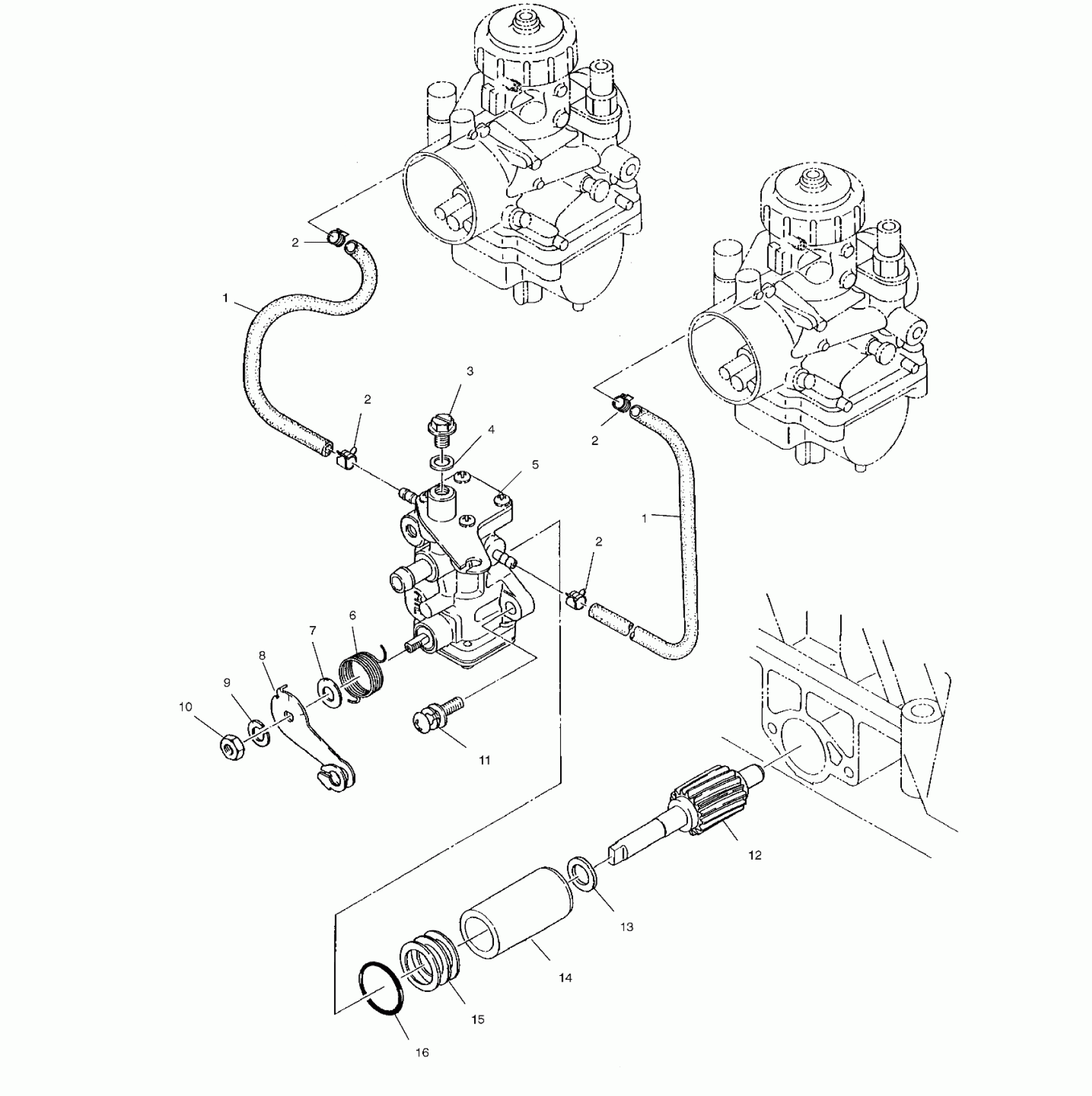

Polaris TRAIL RMK 136 - S02SR5BS OIL PUMP - S02SR5BS (4969366936C008) Diagram

#

Description
Price

1

PIPE,VINYL 1

3085157

$29.99

1

PIPE,VINYL 1

3085157

$29.99

2

CLAMP-HOSE,(10)

3083141

$1.49

2

CLAMP-HOSE,(10)

3083141

$1.49

2

CLAMP-HOSE,(10)

3083141

$1.49

2

CLAMP-HOSE,(10)

3083141

$1.49

3

SCREW-AIR VENT

3083125

Unavailable

4

PACKING(10)

3083126

$4.03

5

PUMP,OIL (Incl. 3-10,16)

3087105

Unavailable

6

SPRING-RETURN

3083123

Unavailable

7

COLLAR, CAMSHAFT(10)

3083445

$2.39

8

LEVER-CONTROL

3087133

Unavailable

9

WASHER-SPRING(10)

3083121

$299.99

10

NUT(10)

3083120

$3.19

11

SCREW&WASHER,(10)

3083783

$2.39

12

GEAR,SMALL,OIL PUMP

3083131

$89.99

13

SPACER

3083130

$1.59

14

BUSHING(OIL PUMP)

3083353

$31.99

15

SPACER #3 (.6mm)

3083673

Unavailable

15

SPACER #2 (.3mm)

3083672

Unavailable

15

SPACER #1 (.15mm)

3083671

Unavailable

16

O RING

3083127

Unavailable
