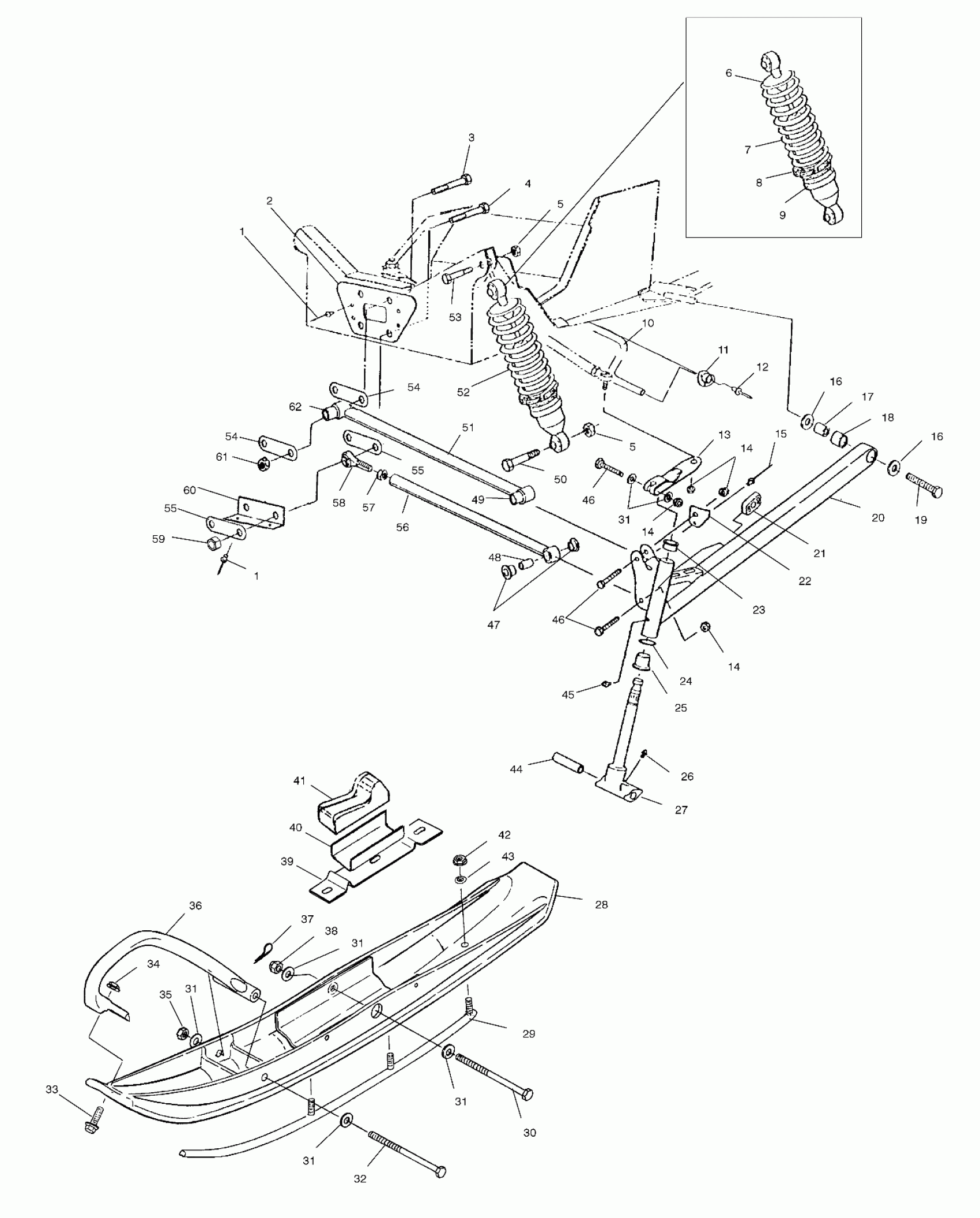

Polaris TRAIL RMK 136 - S02SR5BS FRONT SUSPENSION and SKI - S02SR5BS (4969366936A013) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

2

BRACE,BLKHD/STRG,BLK.

5211589-067

Unavailable

3

BOLT(10)

7512582

$8.79

4

BOLT(10)

7512684

Unavailable

5

NUT-LOCK(10)

7542439

$1.49

5

NUT-LOCK(10)

7542439

$1.49

6

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

7

SPRING,COMP,IFS

7041552-067

$44.51

8

RING,SPRING PRELOAD ADJ.

5431734

$52.60

9

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

10

BAR,SWAY

5224757-067

Unavailable

11

BUSHING,SWAY BAR

5432412

$15.99

12

RIVET,(50)

7621477

$1.19

13

ARM-STEERING,SLV

5241560-244

Unavailable

14

NUT LOCK(10)

7542403

$3.99

14

NUT LOCK(10)

7542403

$3.99

14

NUT LOCK(10)

7542403

$3.99

15

RIVET-3/16-.214-.420

7661130

$1.49

16

WASHER(10)

7555721

$1.49

16

WASHER(10)

7555721

$1.49

17

TUBE, BUSHING

5010310

$9.70

18

PIVOT,TRLG.ARM,RUBBER

5410872

$10.99

19

BOLT(10)

7512557

$7.60

20

ASM-TRAILING ARM,LH,SILVER (Incl. 17,18)

1822506-244

$344.99

20

ASM-TRAILING ARM,RH,SILVER (Incl. 17,18)

1822507-244

Unavailable

21

SLIDE,SWAYBAR,9/16

5432674

Unavailable

22

STOP-STEERING,LH,SLV

5241569-244

$3.81

22

STOP-STEERING,RH,SLV

5241570-244

$3.51

23

BUSHING-FLANGE

3573909

$2.39

24

WASHER SPECIAL(10)

7556509

$1.59

25

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

26

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

27

SHAFT,SPINDLE,TRLG,BLK

6230102-067

$294.99

28

COMP,SKI BLANK,W/SS SDL,BLK

1820783-070

Unavailable

29

SKAG,3" 90� COMP (Pair)

2872566

$55.99

30

SCREW,(10)

7512596

$19.99

31

WSHR-.813X.406X.105-Y

7555832

$2.39

31

WSHR-.813X.406X.105-Y

7555832

$2.39

31

WSHR-.813X.406X.105-Y

7555832

$2.39

31

WSHR-.813X.406X.105-Y

7555832

$2.39

31

WSHR-.813X.406X.105-Y

7555832

$2.39

32

BOLT(10)

7515514

$7.19

33

BOLT(10)

7515307

$3.99

34

NUT LOCK(10)

7542321

$1.49

35

NUT, FLEXLOC(10) Substituted by 7542411

7542452

Unavailable

36

TOE-PLASTIC SKI,BLK

5434165-070

$40.46

37

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

38

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

39

SUPPORT,SKI,RUBBER,BLK

5241912-067

Unavailable

40

RETAINER-SKI RUBBER

5243824

$27.99

41

STOP,RUBBER

5411094

Unavailable

42

NUT-5/16-18 NYLOK-Y

7542324

$1.49

43

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

44

BUSHING,PIVOT,(10)

5010158

$19.99

45

ZERK,FITTING,THREADED(10)

7080433

$1.49

46

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

46

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

47

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

48

BUSHING-RADIUS ROD,(10)

5010127

$7.99

49

BUSHING,RAD.ROD PIVOT,3/8

5411099

$11.99

50

BOLT Substituted by 7515491

7515433

$1.59

51

DESC NOT_AVAILABLE

1822425-244

Unavailable

52

SHOCK,GAS,IFS

7041544

Unavailable

53

BOLT(10)

7515415

$1.49

54

STRAP,SPACER TOP

5211344

$7.27

54

STRAP,SPACER TOP

5211344

$7.27

55

STRAP,SPACER BOTTOM

5211345

$12.99

55

STRAP,SPACER BOTTOM

5211345

$12.99

56

WELD-RADIUS ROD,LOWER,SILVER

1822444-244

Unavailable

57

NUT-JAM(10)

7542711

$2.39

58

ROD END-RADIUS,RH,LOWER

7061052

$48.56

59

NUT FLEX,(10)

7542703

Unavailable

60

BRKT,RAD.ROD,BTM.

5242578

$44.99

61

NUT, LOCK,(10)

7542503

$10.39

62

BUSHING,PIVOT,7/16

5411095

$15.99
