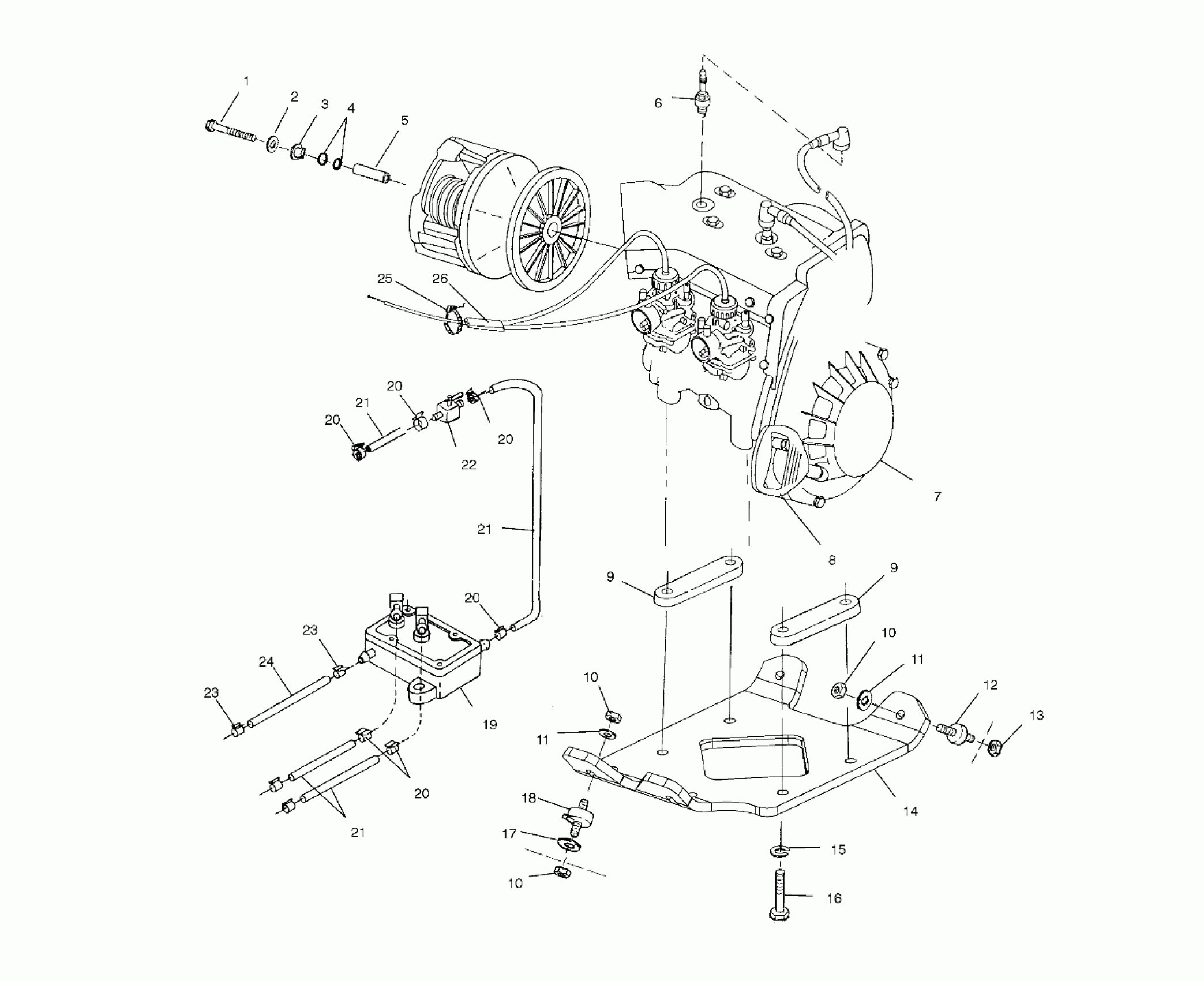

Polaris TRAIL RMK 136 - S02SR5BS ENGINE MOUNTING - S02SR5BS (4969366936C001) Diagram

#

Description
Price

1

SCR,7/16-20X8.250HXCP

7517776

$34.99

2

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

3

WASHER,CLUTCH RETAIN.

5010287

$12.99

4

O RING,(10)

5410507

$1.49

5

SPACER,CLUTCH BOLT

5020513

$44.99

6

SPARK PLUG-NGK BR9ES

3070163

$3.99

7

ENG.(S.B.)EC55PM-010 The short block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization required for warranty conside

3085618

Unavailable

8

HANDLE-RECOIL,BLK

5431499-070

$15.48

9

SPACER-ENGINE,.50

5243195

$61.99

9

SPACER-ENGINE,.50

5243195

$61.99

10

NUT,FLEXLOCK,(10)

7547008

$6.39

10

NUT,FLEXLOCK,(10)

7547008

$6.39

10

NUT,FLEXLOCK,(10)

7547008

$6.39

11

WASHER(10)

7555893

$1.49

11

WASHER(10)

7555893

$1.49

12

MOUNT-ENGINE,3/8-16,3-TAB

3021099

$28.32

13

NUT FLEX LOC,(10)

7542402

$6.39

14

PLATE-MOTOR MOUNT

5132001

$119.99

15

WASHER LOCK(10)

7553101

$3.99

16

BOLT,(10)

7517442

$6.39

17

WASHER,FLAT(10)

7555915

$3.19

18

MOUNT,ENGINE

3110062

Unavailable

19

Asm., Fuel Pump (See Fuel Pump Pg. C7, Ref. 2)

-------

Unavailable

20

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

20

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

20

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

20

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

20

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

21

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

21

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

21

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

22

VALVE-FUEL,PLASTIC 90�,1/4HOSE

7052249

$24.27

23

HOSE CLAMP, RED

7080003

$1.49

23

HOSE CLAMP, RED

7080003

$1.49

24

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

25

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

26

CABLE-THROTTLE

7080888

$157.84
