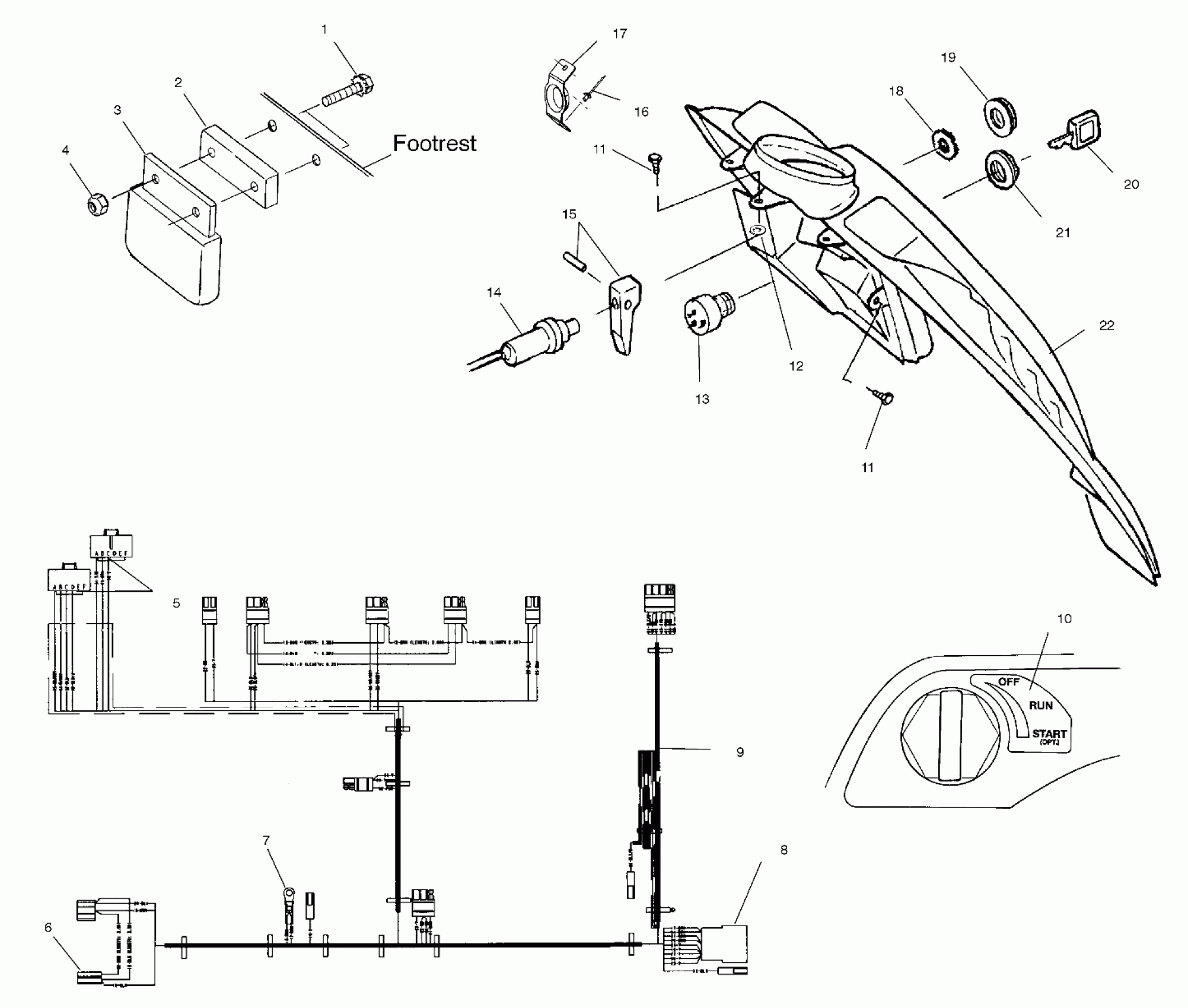

Polaris TRAIL RMK 136 - S02SR5BS CONSOLE - S02SR5BS (4969366936A011) Diagram

#

Description
Price

1

BOLT(10)

7512031

$2.23

2

SPACER,REGULATOR

5211573

Unavailable

3

REGULATOR,(14.3VAC),LR-7

4060123

Unavailable

4

NUT(10)

7541925

$1.49

5

SOCKET-PACKARD#12047767

4010192

Unavailable

6

HOUSING

4020063

$3.19

7

Terminal, Ring

4020092

Unavailable

8

Housing w/Receptacle

4020057

$3.51

9

HARNESS-MAINWIRE,STAR,COM

2460799

$404.99

10

DECAL,IGN,OFF/RUN/START

7078603

Unavailable

11

SCREW(10)

7515199

$1.49

11

SCREW(10)

7515199

$1.49

12

WASHER,NYLON

7555932

$2.39

13

KIT,IGN.SWITCH

2200358

$76.89

14

Cable, Choke Control (Incl. 15,19)

7080290

$105.22

15

LEVER,CHOKE Substituted by 2201439 (Incl. Pin)

5432943

Unavailable

16

RIVET, POP(50)

7621330

$1.49

17

GUIDE-RECOIL

5243049

$9.70

18

WASHER-LOCK(10)

7571610

$3.99

19

NUT,CHOKE

5432944

$8.79

20

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behin

5410611

Unavailable

21

NUT,IGNITION

7547035

$8.79

22

CONSOLE,HYB,RACER,BASIC

5433693

Unavailable
