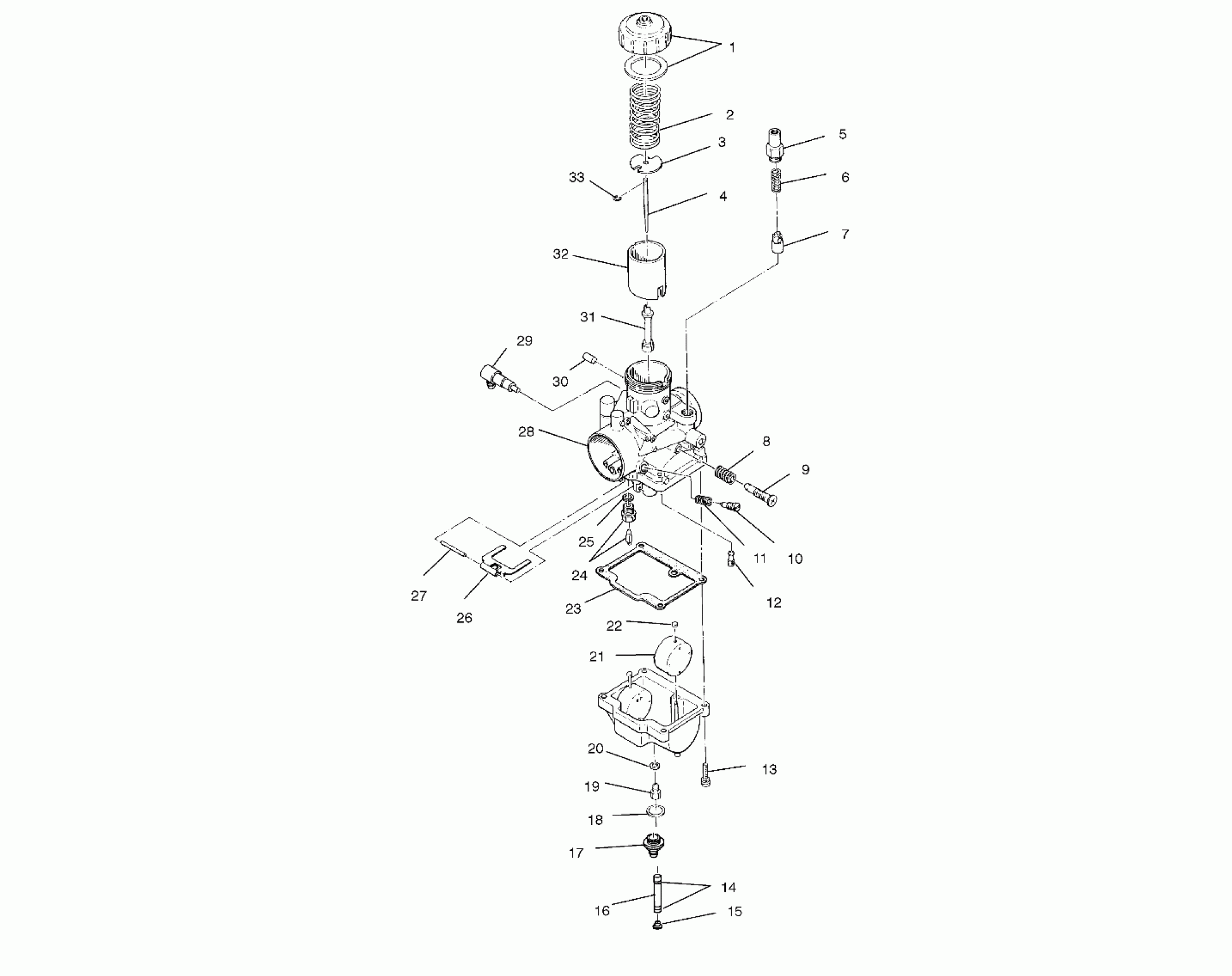

Polaris TRAIL RMK 136 - S02SR5BS CARBURETOR - S02SR5BS (4969366936C006) Diagram

#

Description
Price

1

TOP ASM,MIX.CHAMBER Substituted by 3130184

3130877

Unavailable

2

SPRING,THROTTLE

3130439

$13.59

3

PLATE,THROTTLE Substituted by 3130027

3130879

Unavailable

4

JET,NEEDLE(6DEH11) (6DEH11-3)

3131221

$18.23

5

HOLDER,GUIDE

3130199

$28.32

6

SPRING,PLUNGER Substituted by 3130006

3130884

Unavailable

7

PLUNGER ASM, STARTER

3130328

$32.37

8

SPRING,THROTTLE ADJ.

3130010

$8.89

9

SCREW,THROT.STOP

3130437

Unavailable

10

SCREW,AIR

3130011

$19.99

11

SPRING,AIR ADJUST

3130012

$8.89

12

JET,PILOT,#35(10) (#35)

3130066

$8.89

13

SCREW & WASHER(10)

3130025

$3.19

14

HOSE CLAMP, RED

7080003

$1.49

15

PLUG,TRAP

5431893

$12.94

16

FUEL,LINE,ETHER,RED,5/16" Substituted by 8350017-160

8350017-600

Unavailable

17

FITTING,SEDIMENT Substituted by 3130573

5020476

$10.63

18

O RING

3130239

Unavailable

19

JET,MAIN,HX.HD#270(10) (#270)

3130130

$7.27

20

WASHER (10)

3130014

$1.59

21

FLOAT ASM.

3130430

$43.56

22

CAP,(10)

3130237

$4.03

23

PACKING,FLOAT CHAMBER

3130020

$16.17

24

VALVE-NEEDLE (1.5)

3131146

$48.56

25

PACKING(10)

3130017

$4.03

26

ARM,FLOAT

3130018

$24.27

27

PIN, FLOAT

3130361

$8.89

28

CARBURETOR (PTO)(Incl. 1-13,17-33)

3130955

$385.70

28

CARBURETOR (MAG)(Incl. 1-13,17-33)

3130956

$376.17

29

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

30

CAP

3130479

$14.56

31

JET,NEEDLE(Q-0)480 (Q-0) 480

3130964

$54.99

32

VALVE,THROTTLE,(3.0) (3.0)

3130372

$52.60

33

E-RING,(10)

3130508

$6.46
