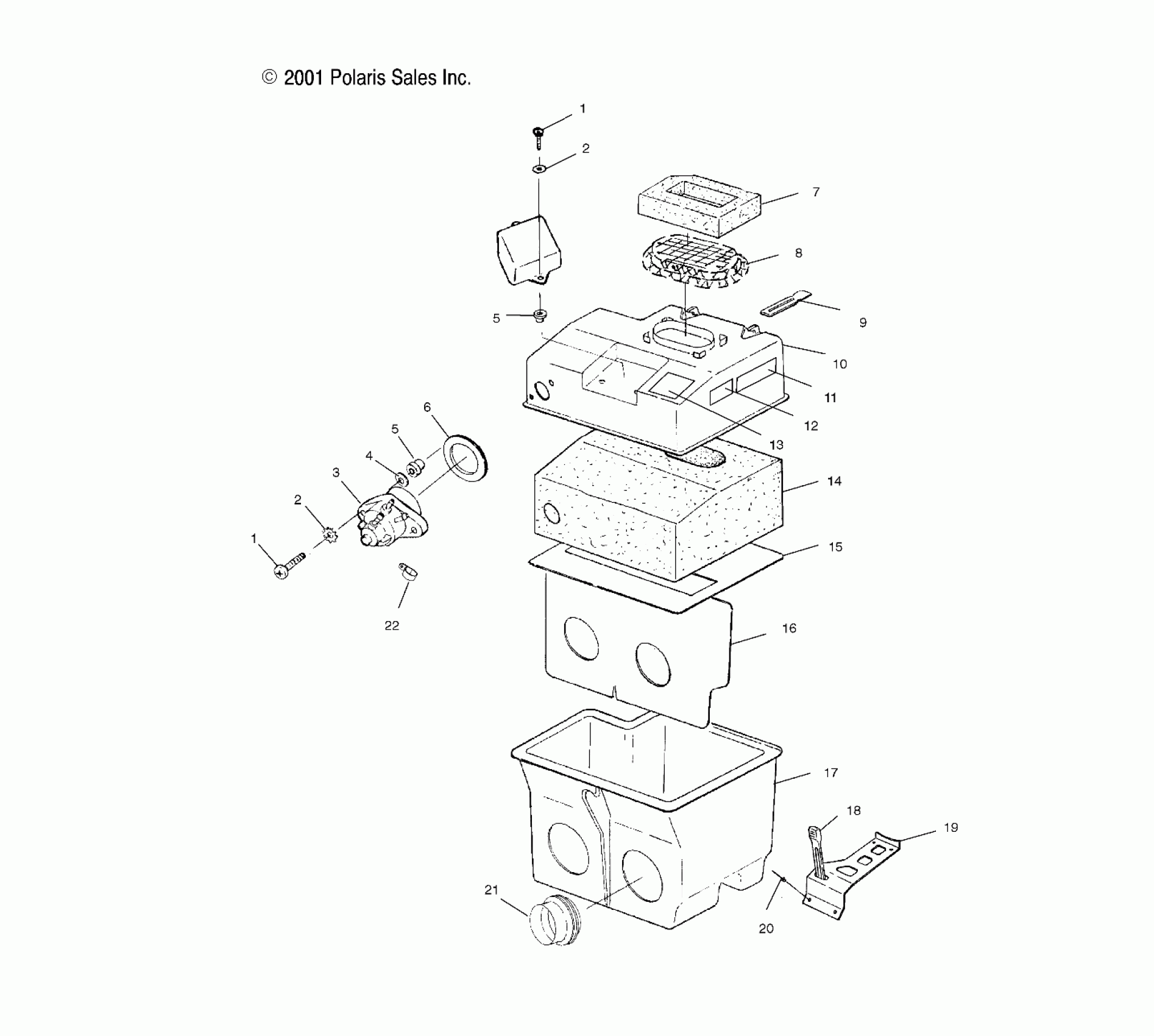

Polaris TRAIL RMK 136 - S02SR5BS AIR BOX - S02SR5BS (4969366936B013) Diagram

#

Description
Price

1

SCREW(10)

7512222

$2.39

1

SCREW(10)

7512222

$2.39

2

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

2

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

3

Asm., ACCS Body (See ACCS System Pg. B14, Ref. 9)

-------

Unavailable

4

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

5

NUT-WELL(10)

7541923

$5.59

5

NUT-WELL(10)

7541923

$5.59

6

GROMMET,ACCS.

5410982

$5.03

7

FOAM,AIRBOX,CHIMNEY,HYB.

5811606

Unavailable

8

MESH-WIRE,FORMED

5243219

Unavailable

9

RETAINER-TAB,(10)

5411075

Unavailable

10

TOP,SILENCER INTAKE,ACCS

5433591

$17.46

11

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

12

DECAL, GREASING [No Longer Available]

7073426

$7.27

13

DECAL,CAUTION,AIRBOX

7075351

Unavailable

14

FOAM,AIRBOX,TOP,ACCS.

5811648

Unavailable

15

PLATE,SILENCER INTAKE

5850134

Unavailable

16

PLATE,SILENCER,INTAKE,VERT.

5850139

$10.71

17

SILENCER,INTAKE,DRILLED

5432928

Unavailable

18

STRAP,TIE-DOWN

5411129

$8.89

19

BRKT,SIL.MOUNT,LOW Substituted by 5243729

5241691

Unavailable

20

RIVET-3/16-.090-.290

7661637

$1.49

21

BOOT,CARB

5411467

$11.19

22

CLAMP,HOSE(10)

7080683

$2.39
