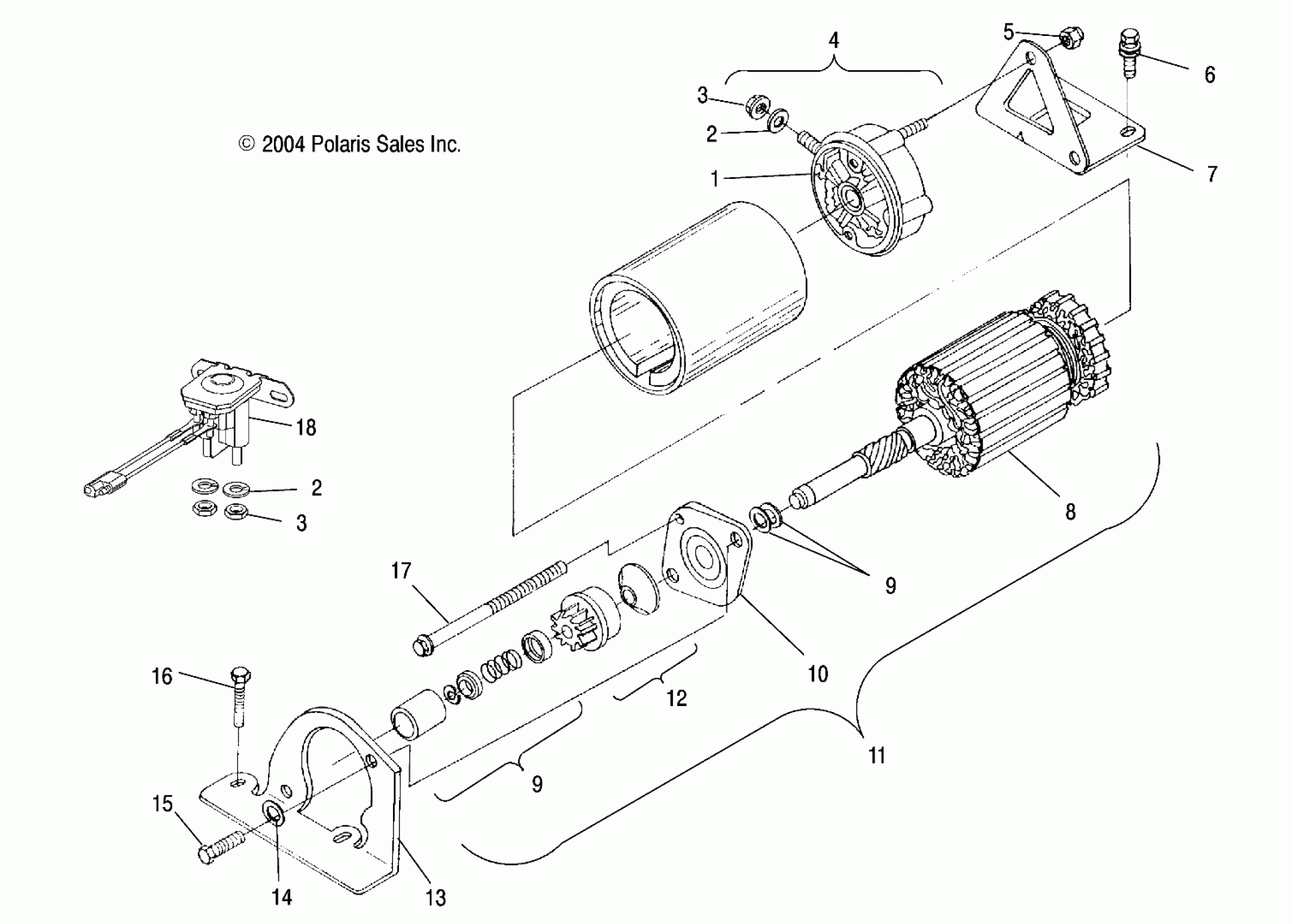

Polaris TRAIL RMK 136 F/O - S05NJ5BS/A STARTING MOTOR - S05NJ5BS/A (4992769276D03) Diagram

#

Description
Price

1

Kit, Brush and Spring

2200759

$59.99

1

ASM., BRUSH AND SCREW

-------

Unavailable

1

ASM., BRUSH

-------

Unavailable

1

BUSHING, INSULATION

-------

Unavailable

1

WASHER, INSULATION

-------

Unavailable

1

Nut

-------

Unavailable

2

WASHER, SPRING LOCK

7552801

$1.59

2

WASHER, SPRING LOCK

7552801

$1.59

3

Nut, Hex

7542105

$3.99

3

Nut, Hex

7542105

$3.99

4

Kit, Asm., Commutator Cap [Incl. 1]

2200758

$82.39

5

NUT, NYLOK, FLANGED

7542153

$1.59

6

SCREW

7516815

$6.39

7

Bracket, Starter, Rear

5240956

$16.99

8

Kit, Asm., Armature

2200756

$169.99

9

Kit, Drive Hardware

2200755

Unavailable

9

WASHER, CURVED SPRING

-------

Unavailable

9

Washer, Thrust

-------

Unavailable

9

SPACER

-------

Unavailable

9

SPRING, ANTIDRIFT

-------

Unavailable

9

PINION, STOP

-------

Unavailable

9

RING, LOCK

-------

Unavailable

9

COVER, DUST

-------

Unavailable

9

Kit, Drive Hardware

2200755

Unavailable

9

WASHER, CURVED SPRING

-------

Unavailable

9

Washer, Thrust

-------

Unavailable

9

SPACER

-------

Unavailable

9

SPRING, ANTIDRIFT

-------

Unavailable

9

PINION, STOP

-------

Unavailable

9

RING, LOCK

-------

Unavailable

9

COVER, DUST

-------

Unavailable

10

Kit, Asm., Drive Cap

2200757

$59.99

11

Motor, Starter, Domestic

4170006

Unavailable

12

Kit, Asm., Drive

2200754

Unavailable

12

PLATE, DRIVE

-------

Unavailable

12

PINION

-------

Unavailable

13

Bracket, Starter, Front

5241271

$32.37

14

Washer, Spring Lock

7552603

$1.49

15

Screw

7512492

$1.49

16

Asm., Screw and Washer

7516730

$6.39

17

Kit, Screw

2200753

$29.99

17

BOLT, THRU

-------

Unavailable

18

Switch, Magnetic [Incl. 2,3]

4010930

$60.70
