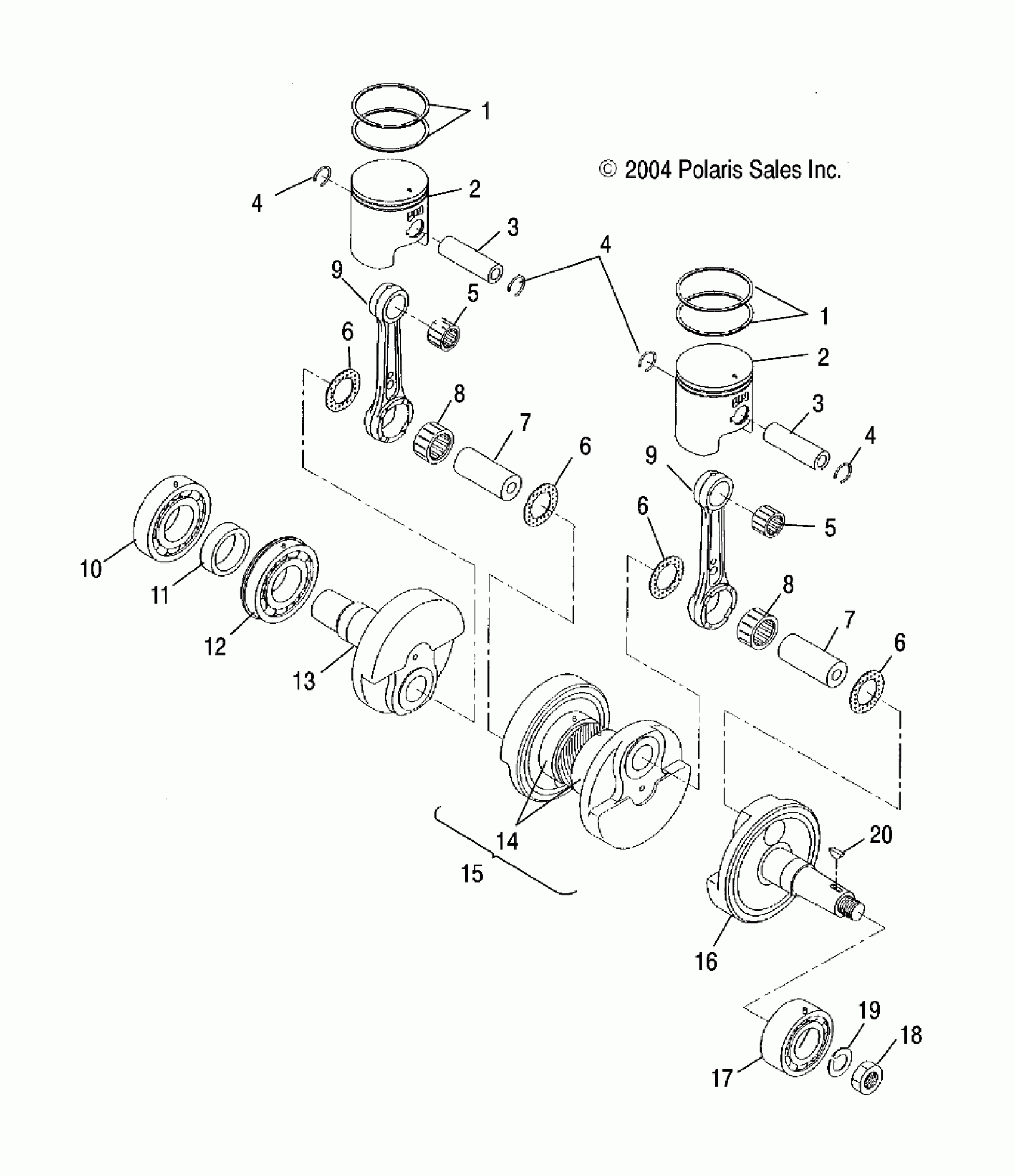

Polaris TRAIL RMK 136 F/O - S05NJ5BS/A PISTON and CRANKSHAFT - S05NJ5BS/A (4992769276C11) Diagram

#

Description
Price

1

Set, Piston, Ring, Standard

3086988

Unavailable

1

Set, Piston, Ring, .010 Inch/.25MM O/S

3086989

Unavailable

1

Set, Piston, Ring, .020 Inch/.50MM O/S

3086990

$33.32

1

Set, Piston, Ring, Standard

3086988

Unavailable

1

Set, Piston, Ring, .010 Inch/.25MM O/S

3086989

Unavailable

1

Set, Piston, Ring, .020 Inch/.50MM O/S

3086990

$33.32

2

Set, Piston, Standard [Incl. 4]

3089485

Unavailable

2

Set, Piston, .010 Inch/.25MM O/S [Incl. 4]

3089486

$142.84

2

Set, Piston, .020 Inch/.50MM O/S [Incl. 4]

3089487

$152.37

2

Set, Piston, Standard [Incl. 4]

3089485

Unavailable

2

Set, Piston, .010 Inch/.25MM O/S [Incl. 4]

3089486

$142.84

2

Set, Piston, .020 Inch/.50MM O/S [Incl. 4]

3089487

$152.37

3

Pin, Piston

3083838

$27.99

3

Pin, Piston

3083838

$27.99

4

Clip, Piston Pin

3084167

$6.39

4

Clip, Piston Pin

3084167

$6.39

4

Clip, Piston Pin

3084167

$6.39

5

Bearing, End, Small

3085595

$16.57

5

Bearing, End, Small

3085595

$16.57

6

SPACER, CRANK PIN

3083277

$15.99

6

SPACER, CRANK PIN

3083277

$15.99

6

SPACER, CRANK PIN

3083277

$15.99

6

SPACER, CRANK PIN

3083277

$15.99

7

Pin, Crank, 2

3083456

Unavailable

7

Pin, Crank, 2

3083456

Unavailable

8

BEARING, END, LARGE

3086390

$1,634.99

8

BEARING, END, LARGE

3086390

$1,634.99

9

ROD, CONNECTING

3240083

$1,634.99

9

ROD, CONNECTING

3240083

$1,634.99

10

BEARING, BALL

3085754

$64.99

11

SPACER

3085677

$11.99

12

BEARING, BALL

3085753

$64.99

13

CRANKSHAFT 3, PTO SIDE

3089484

$409.99

14

BEARING, BALL

3084586

$44.99

15

Asm., Crankshaft Center, 2 [Incl. 7]

3085674

$694.99

16

CRANKSHAFT 1, MAG SIDE

3087177

$529.99

16

ASM., CRANKSHAFT [INCL. 6-17]

3089483

$1,684.99

17

BEARING, BALL

3084681

Unavailable

18

NUT

3083093

$19.99

19

WASHER, SPRING

3083094

$3.17

20

KEY, WOODRUFF

3081543

$12.94
