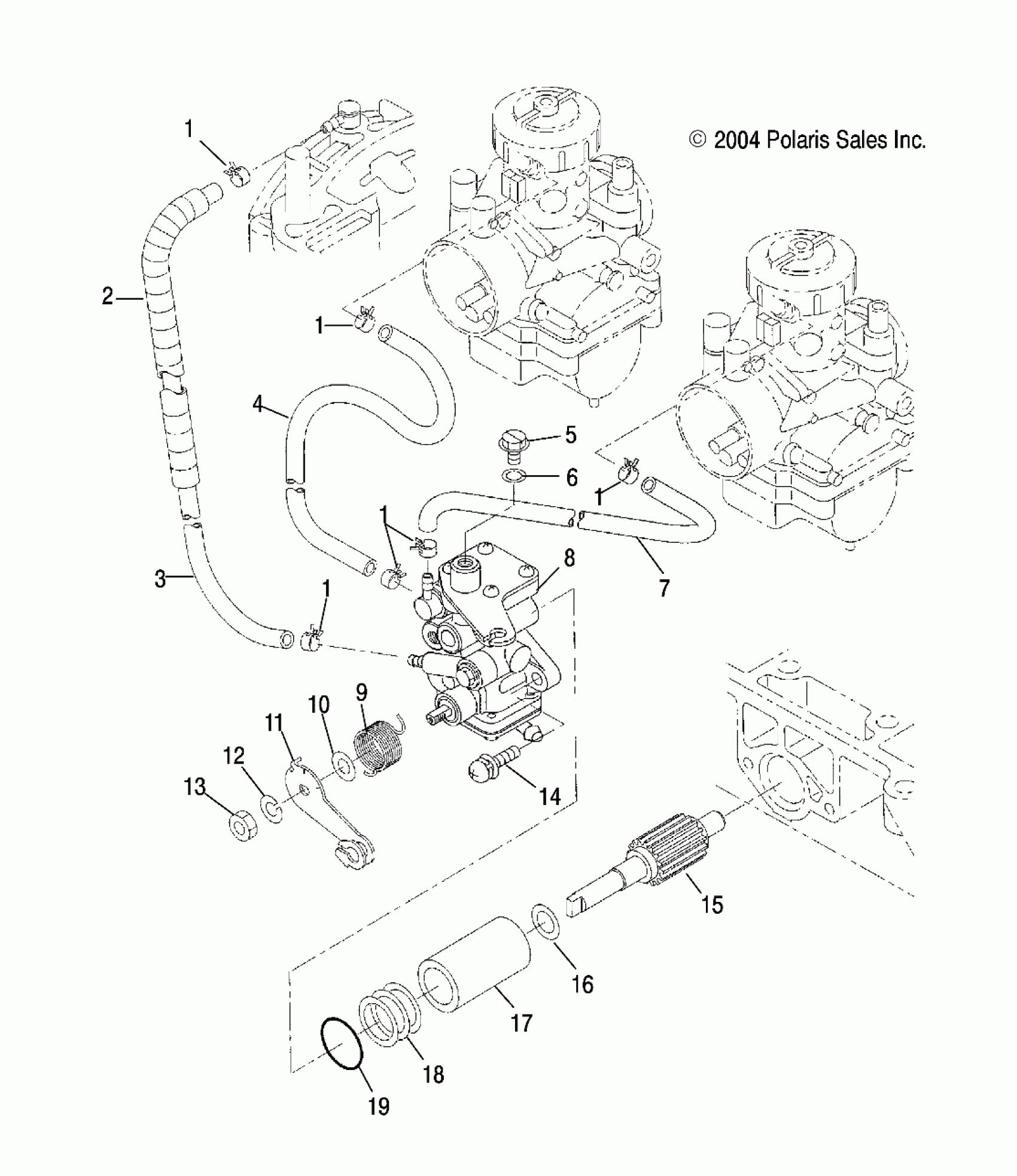

Polaris TRAIL RMK 136 F/O - S05NJ5BS/A OIL PUMP - S05NJ5BS/A (4992769276D01) Diagram

#

Description
Price

1

Clamp, Hose

3083141

$1.49

1

Clamp, Hose

3083141

$1.49

1

Clamp, Hose

3083141

$1.49

1

Clamp, Hose

3083141

$1.49

1

Clamp, Hose

3083141

$1.49

2

TUBE

3087114

Unavailable

3

Pipe, Rubber

3084467

$28.32

4

Pipe, Vinyl [Incl. 1]

3085157

$29.99

5

Screw, Air Vent

3083125

Unavailable

6

Packing

3083126

$4.03

7

PIPE, VINYL

3087185

Unavailable

8

Asm., Oil Pump [Incl. 7,9-13,19][Should also order 2203889, Kit, 550 Oil Pump Return, unless already equipped]

3090240

Unavailable

9

SPRING, RETURN

3089228

$71.99

10

COLLAR, CAM SHAFT

3083445

$2.39

11

LEVER, CONTROL

3089227

Unavailable

12

Washer, Spring

3083121

$299.99

13

Nut

3083120

$3.19

14

Bolt

3090084

$1.83

15

Gear, Small

3083131

$89.99

16

SPACER

3083130

$1.59

17

Bushing

3083353

$31.99

18

SPACER 3, .6MM

3083673

Unavailable

18

SPACER 2, .3MM

3083672

Unavailable

18

SPACER 1, .15MM

3083671

Unavailable

19

O-Ring [Replace with 5813237 Gasket]

-------

Unavailable
