Description

Price

1

RIVET

7621509

$1.49

2

Windshield, 13 Inch, Flared, Smoke/Gray

5435489

Unavailable

2

Windshield, 11 Inch, Flared, Red/Black

5434988

$149.99

3

RETAINER, WINDSHIELD

5410970

$1.49

4

Retainer, Bolt, Lamp

7670133

Unavailable

5

Indicator, Reverse

4010687

Unavailable

6

Plug, Dash, w/Hole

5434081

Unavailable

7

Harness, Jumper, Reverse Light

2461031

$5.75

8

Bracket, Speedometer/Tachometer

3280210

$28.32

9

Cushion, Rubber

3280209

$3.99

10

Knob, Trip Odometer

3280186

$9.70

11

Bulb [Replacement]

4030015

$4.03

11

Asm., Speedometer

3280411

$339.98

12

Washer, Flat

3280157

$2.39

13

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

14

Cable, Speedometer

3280385

$93.08

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

16

Clip, Plastic, Dart, Nylon

4010589

$2.39

16

Clip, Plastic, Dart, Nylon

4010589

$2.39

17

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

18

Nut, Nylok

7541925

$1.49

19

Cable, Hood Retainer

7080521

$24.27

20

RIVET-3/16-.090-.290

7661637

$1.49

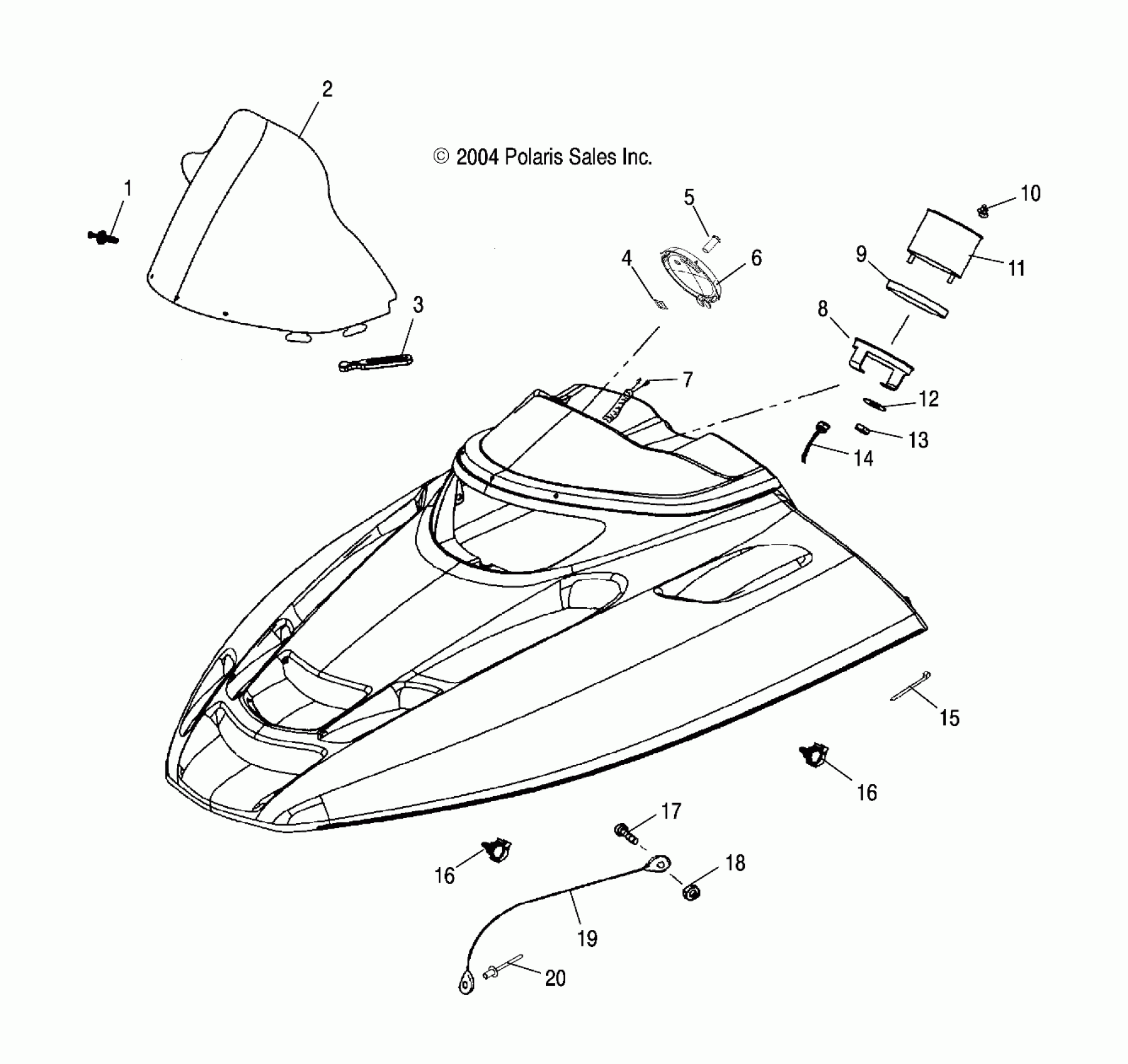

Polaris TRAIL RMK 136 F/O - S05NJ5BS/A HOOD - S05NJ5BS/A (4992769276A10) Diagram

RIVET

Windshield, 13 Inch, Flared, Smoke/Gray

Windshield, 11 Inch, Flared, Red/Black

RETAINER, WINDSHIELD

Retainer, Bolt, Lamp

Indicator, Reverse

Plug, Dash, w/Hole

Harness, Jumper, Reverse Light

Bracket, Speedometer/Tachometer

Cushion, Rubber

Knob, Trip Odometer

Bulb [Replacement]

Asm., Speedometer

Washer, Flat

NUT-6MM X 1 NYLOK-Z

Cable, Speedometer

CABLE-TIE,DIA12-50MM,WTHR-RES.

Clip, Plastic, Dart, Nylon

Clip, Plastic, Dart, Nylon

SCR-#10-24X3/4,PN/TR RD-TORX-Y

Nut, Nylok

Cable, Hood Retainer

RIVET-3/16-.090-.290
