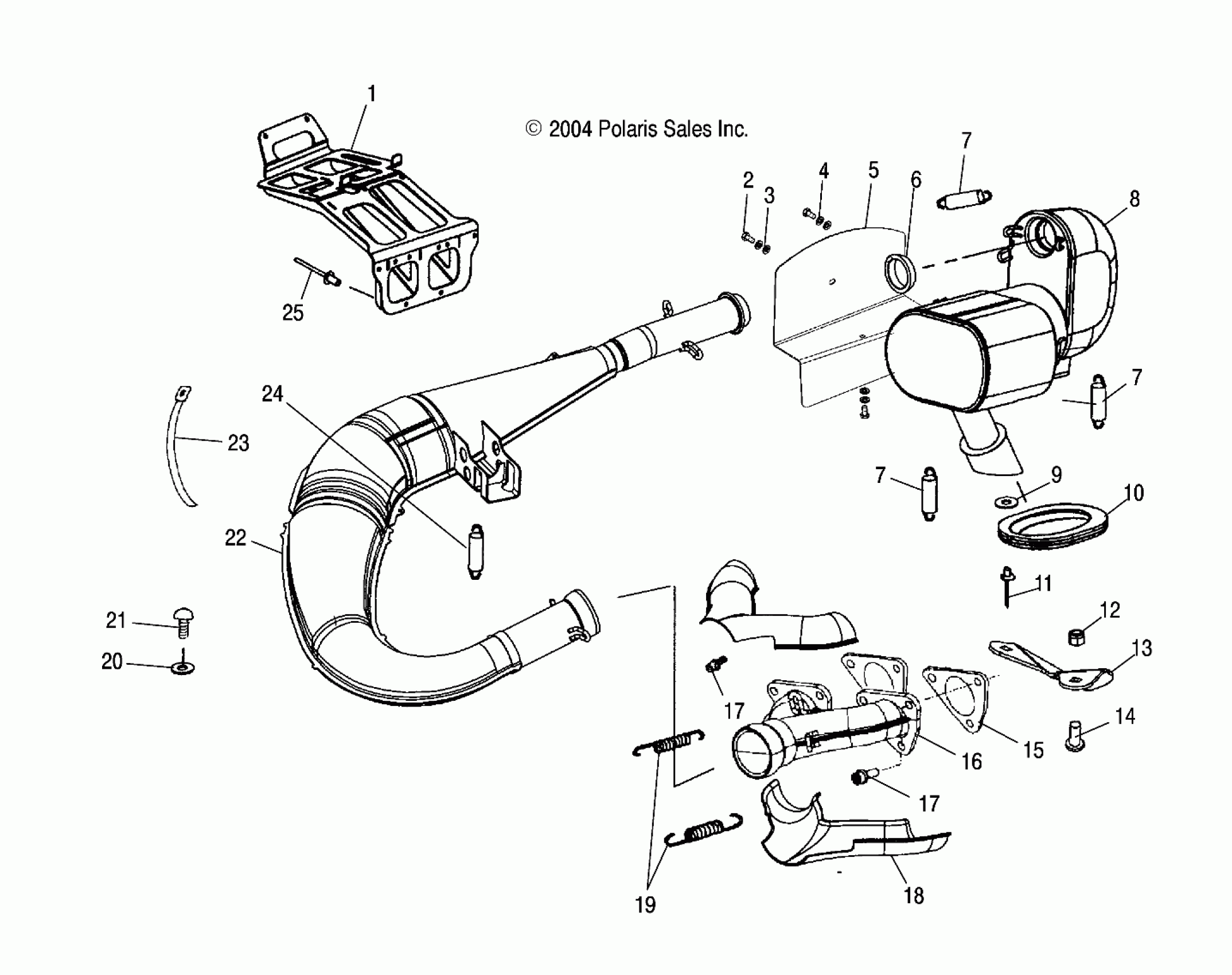

Polaris TRAIL RMK 136 F/O - S05NJ5BS/A EXHAUST SYSTEM - S05NJ5BS/A (4992769276C07) Diagram

#

Description
Price

1

Bracket, Chassis/Resonator, Black

1261296-029

Unavailable

2

Bolt

7515354

$3.99

3

Washer, Flat

7555734

$1.49

4

WASHER, SPRING LOCK

7552901

$1.49

5

Shield, Muffler

5247536

Unavailable

6

Seal, Exhaust Socket

3610047

$36.41

7

SPRING-EXHAUST

7041687

$5.65

7

SPRING-EXHAUST

7041687

$5.65

7

SPRING-EXHAUST

7041687

$5.65

8

Resonator, Black

1261326-029

$1,999.99

9

Washer

7555904

$1.49

10

Boot, Exhaust Outlet

5411684

Unavailable

11

RIVET

7621467

$1.49

12

Nut, Flange

7542321

$1.49

13

Deflector, Exhaust

5243929

$24.27

14

Bolt, Carriage

7512377

$4.79

15

GASKET, EXHAUST

3085714

$29.99

16

Manifold, Black

1260981-029

$193.63

17

SCREW

7517555

$8.79

17

SCREW

7517555

$8.79

18

CLAMP, HOSE

7080481

Unavailable

18

Cover, Manifold

5243196

$84.99

18

Matte, Sound

5830161

$8.89

19

Spring, Exhaust

7042332

$4.84

20

WASHER

7556004

Unavailable

21

Dampener, Vibration w/Ribs

5411576

$7.99

22

Cover, Megaphone, Top

5243197

Unavailable

22

Cover, Megaphone, Bottom

5243198

Unavailable

22

Matte, Sound

5830162

Unavailable

22

Asm., Tuned Pipe

1261327

Unavailable

22

Pipe, Tuned, Black

1261329-029

Unavailable

23

Clamp, Worm Drive, .44 x 3.69

7080740

$13.19

23

Clamp, Worm Drive, .44 x 2.75

7080809

$9.59

23

Clamp, Worm Drive, .44 x 5.50

7080808

Unavailable

24

Spring, Exhaust

7042029

$4.84

25

RIVET-3/16-.090-.290

7661637

$1.49
