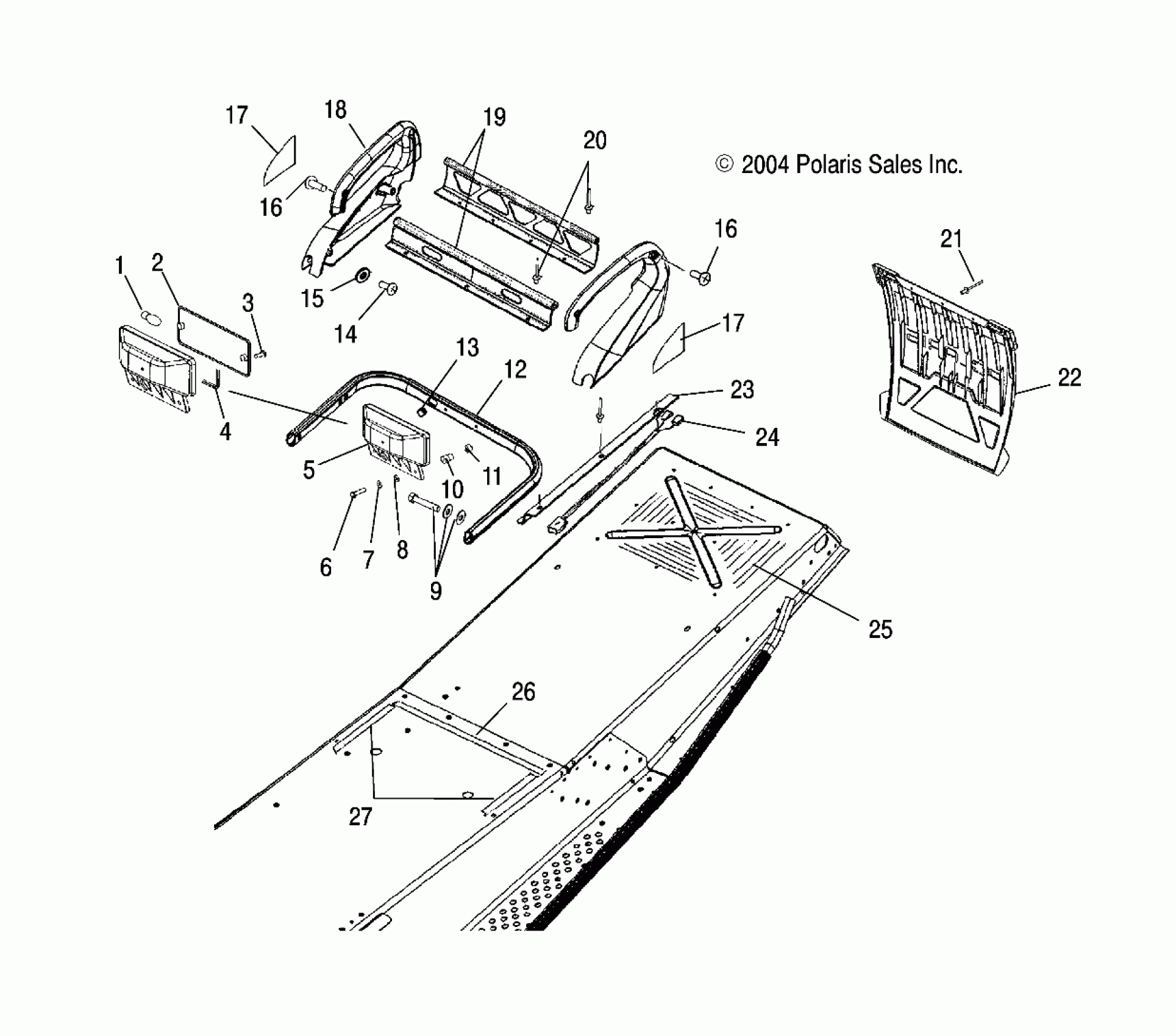

Polaris TRAIL RMK 136 F/O - S05NJ5BS/A CHASSIS - S05NJ5BS/A (4992769276A04) Diagram

#

Description
Price

1

Bulb, Taillight

4030043

$6.46

2

Lens

4032014

$36.41

3

Screw

7518019

$2.63

4

Gasket

4032015

Unavailable

5

Asm., Taillight [Incl. 1-4]

2410307

$91.19

6

SCREW

7515140

$3.19

7

WASHER, SPRING LOCK

7552801

$1.59

8

Washer

7556033

$4.79

9

Washer, Flat

7558301

$1.49

9

WASHER, SPRING LOCK

7552801

$1.59

9

Bolt

7512113

$3.99

10

Mount, Rubber

3021186

$11.99

11

WASHER, NYLON

7555916

$1.59

12

Asm., Bumper, Rear, 136/144, Natural

2632460-309

Unavailable

13

Bushing, Snap

7081039

Unavailable

14

SCREW

7512094

$1.59

15

Washer, Flat

7558301

$1.49

16

SCREW

7517686

$1.59

16

SCREW

7517686

$1.59

17

Decal, Reflector, Red, RH

7079668

$11.90

17

Decal, Reflector, Red, LH

7079667

Unavailable

17

Decal, Reflector, Red, RH

7079668

$11.90

17

Decal, Reflector, Red, LH

7079667

Unavailable

18

Kit, Snow Skirt, Red

2873764-293

Unavailable

19

Rack, Front

5133058

$72.49

19

Rack, Rear

5133059

$149.99

20

RIVET-3/16-.090-.290

7661637

$1.49

21

RIVET

7621467

$1.49

22

Flap, Snow, Black w/White

5434356-1038

Unavailable

23

Rivet

7661079

Unavailable

23

Guard, Wire, Taillight [Incl. Rivets]

5245726

$11.59

24

Jumper, Seat, Taillight

2461065

Unavailable

25

Protector, Bed, Front/Rear

5412033

$7.43

25

Protector, Bed, LH

5412074

$16.47

25

Protector, Bed, RH

5412134

$14.87

26

Gasket, Seat Base, 1/4 Inch

5812360

$1.83

27

Gasket, Seat Base

5812290

$1.49
