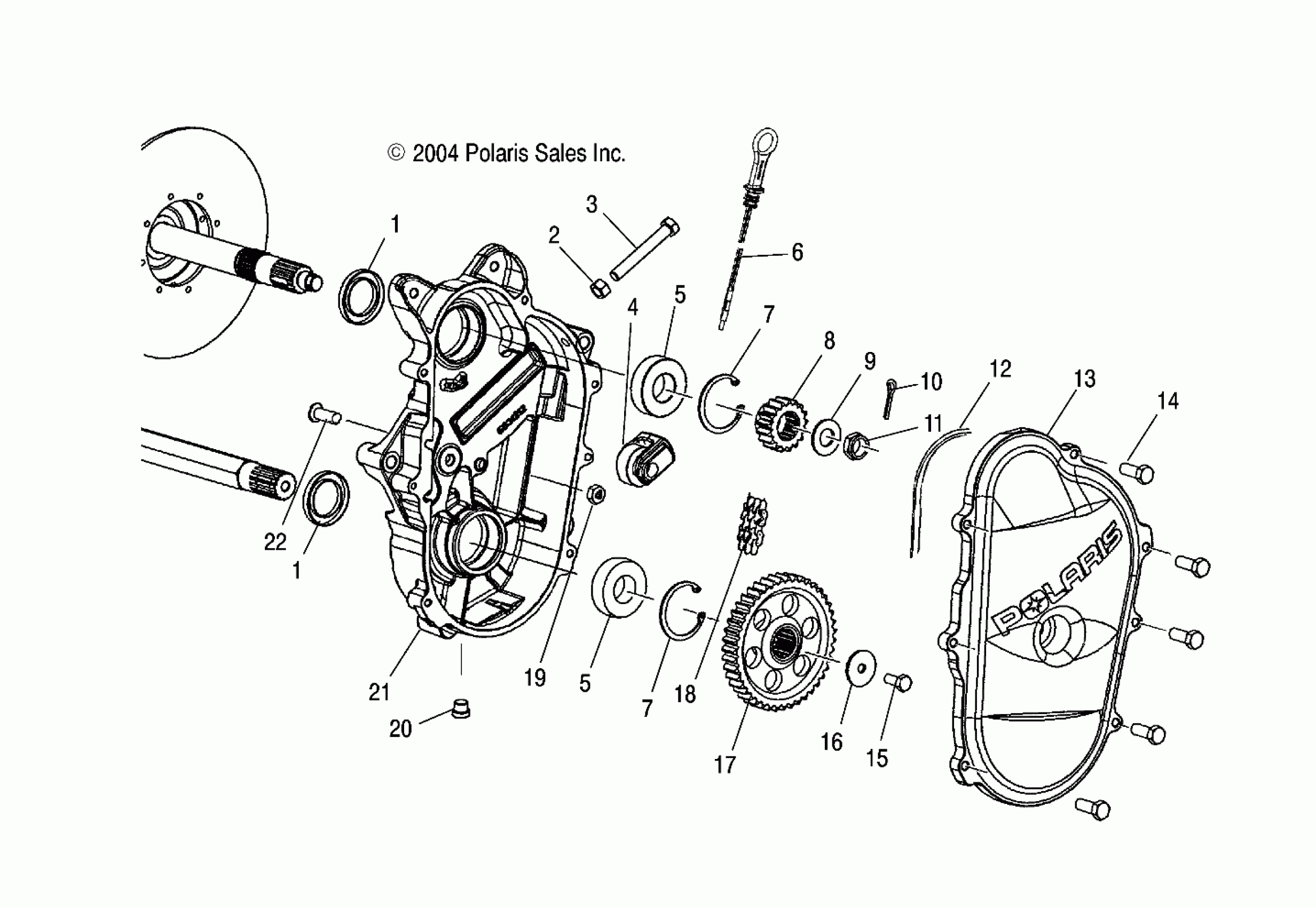

Polaris TRAIL RMK 136 F/O - S05NJ5BS/A CHAINCASE - S05NJ5BS/A (4992769276B12) Diagram

#

Description
Price

1

SEAL-OIL

3610030

$20.22

1

SEAL-OIL

3610030

$20.22

2

NUT

7542404

$1.59

3

SCREW

7515459

$5.59

4

Asm., Tightener, Chain

1341437

$71.41

5

BEARING, BALL

3514309

$15.87

5

BEARING, BALL

3514309

$15.87

6

Asm., Dipstick [Incl. O-Ring]

1332143

$54.99

7

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

8

SPROCKET, 19T, 3/4W

3221095

$44.99

9

Washer, Spring

7571620

$7.19

10

Pin, Cotter

7661203

$1.49

11

Nut

7547202

$5.59

12

Gasket, Chaincase, O-Ring

5812574

$29.99

13

COVER, CHAINCASE

5631354

$114.99

14

SCREW

7512242

$2.39

15

Screw

7517979

$3.99

16

Washer, Spring

7571618

$6.39

17

Sprocket, 43T

3221188

$149.99

18

CHAIN, 74P, 3/4W

3221109

$164.99

19

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

20

PLUG

7052115

$5.65

21

Chaincase

5134085

$113.32

22

Screw, Carriage

7515477

$34.99
