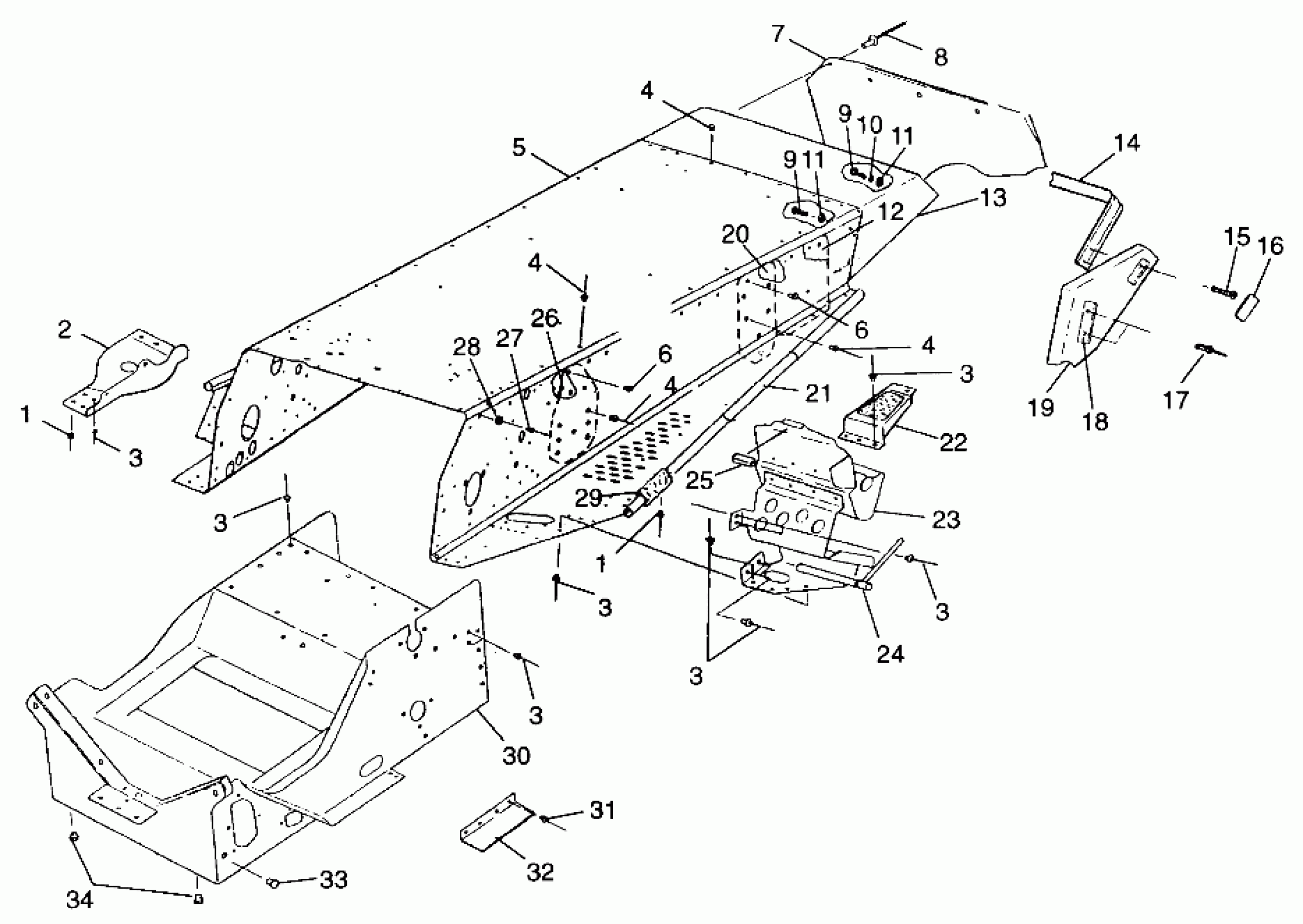

Polaris TRAIL RMK - 099SR5BS TUNNEL - E99SS5BU (4948364836a007) Diagram

#

Description
Price

1

RIVET,INTERLOCK(50) Substituted by 7661130

7661639

Unavailable

1

RIVET,INTERLOCK(50) Substituted by 7661130

7661639

Unavailable

2

GUARD,C/C.SUMP,TUNNEL Substituted by 5243419

5241915

$20.48

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

4

RIVET ,(50)

7661837

$1.49

4

RIVET ,(50)

7661837

$1.49

4

RIVET ,(50)

7661837

$1.49

4

RIVET ,(50)

7661837

$1.49

5

DESC NOT_AVAILABLE (RMK) (Incl. 13,20,26)

1012688-067

Unavailable

5

DESC NOT_AVAILABLE (Euro SKS) (Incl.13,20,26)

1012865-067

Unavailable

5

TUNNEL ASM,F/C,RMK Substituted by 1013209 (RMK) (Incl. 13,20,26)

1012688

Unavailable

5

TUNNEL,F/C EURO (Euro SKS) (Incl.13,20,26)

1012865

Unavailable

6

RIVET ,(50)

7661836

$0.63

6

RIVET ,(50)

7661836

$0.63

7

FLAP, SNOW,SILVER Substituted by 5410394-1106

5410394

$121.02

8

POP RIVET(50)

7621418

$1.49

9

BOLT(10)

7512240

$3.99

9

BOLT(10)

7512240

$3.99

10

LOCK WASHER(10)

7552801

$1.59

11

WASHER(10)

7558301

$1.49

11

WASHER(10)

7558301

$1.49

12

BRACE,LH,TUNNEL,RMK,BLK. (Euro SKS)

5242568-067

Unavailable

12

BRACE,RH,TUNNEL,RMK,BLK. (Euro SKS)

5242569-067

Unavailable

13

PANEL,TUNNEL BACK

1012580-067

Unavailable

13

PANEL,TUNNEL

1012580

Unavailable

14

BUMPER,REAR,BLACK Substituted by 2670168

2670169

Unavailable

15

SCREW(10)

7512084

$1.49

16

REFLECTOR RED (Euro SKS)

2670070

$9.91

16

REFLECTOR ASM,RED (RMK)

2670133

$5.75

17

RIVET,(50)

7621515

$3.99

18

SUPPORT,HAND-HOLD

5131546

$18.23

19

COVER,LH,BUMPER,W/HANDLE

5432562

$28.15

19

COVER,RH,BUMPER,W/HANDLE

5432563

$28.15

20

BRKT,LH,R.SUSP.

1012578-067

$82.39

20

BRKT,RH,R.SUSP.

1012579-067

$62.39

21

TUBE,TUNNEL SPT.

5224787

$20.48

22

FOOTREST,LH REAR (Euro SKS)

5220893

Unavailable

22

FOOTREST,RH REAR (Euro SKS)

5220894

$32.15

22

PAD,LH FOOT SAFETY (Euro SKS)

5830007

$7.89

22

PAD,RH FOOT SAFETY (Euro SKS)

5830008

$4.92

22

FOOTREST,LH R,BLK. (Euro SKS)

5220893-067

Unavailable

22

FOOTREST,RH R,BLK. (Euro SKS)

5220894-067

$32.15

23

FOOTREST ASM,RH

1012684

$154.99

23

FOOTREST ASM,LH Substituted by 1013531

1012683

Unavailable

24

SUPPORT,TUNNEL,LH,BLK.

1012812-067

$32.37

24

SUPPORT,TUNNEL,RH,BLK

1012813-067

Unavailable

25

EXTRUSION,CLUTCHGUARD

5521238

$6.46

26

PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067

5241303-067

Unavailable

26

PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067

5241304-067

Unavailable

27

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

28

SNAP-MALE(10)

7080227

Unavailable

29

GRIP,TUNNEL ROLL (RMK)

5243112

Unavailable

29

GRIP-TUNNEL ROLL,BLK (RMK)

5243112-067

Unavailable

30

BULKHEAD,BLK

1012689-067

Unavailable

31

RIVET(50)

7621452

$1.49

32

GUARD,ADAPTER GUIDE

5222857

$12.94

33

PLUG, HOLE(10)

7080416

$5.65

34

PLUG-HOLE

7080398

$4.84
