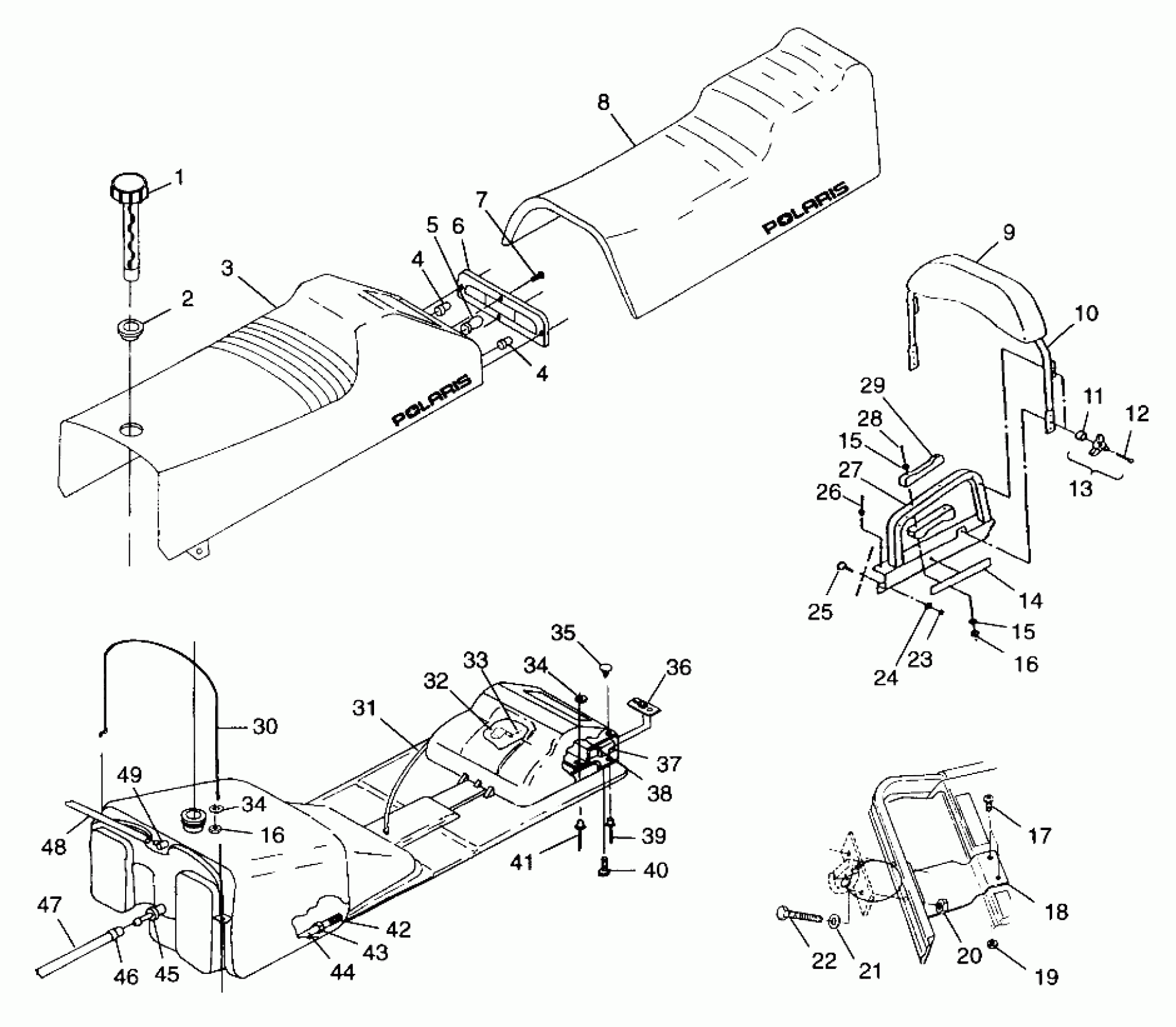

Polaris TRAIL RMK - 099SR5BS SEAT and GAS TANK - E99SS5BU (4948364836a005) Diagram

#

Description
Price

1

GASKET, GAS CAP

5810513

$8.89

1

CAP,GAS,W/GAUGE

2511248

$44.51

2

GROMMET,FUELTANK

5410842

Unavailable

3

COVER ASM,SEAT,LONG (RMK)

2682396

Unavailable

3

SEAT,CUSHION,LONG,W/FILTER Substituted by 2682397 (See Footnote) (Incl. 2, 4-7, 16, 30-39, 41-45, 49) (RMK)

2682472

Unavailable

4

BULB,TAILLIGHT(10)

4030024

$4.84

4

BULB,TAILLIGHT(10)

4030024

$4.84

5

Bulb, Brakelight

4030045

Unavailable

6

LENS,TAILLIGHT

5430423

Unavailable

7

SCREW(10)

7511840

Unavailable

8

CUSHION,SEAT,2-UP Substituted by 2681714 (See Footnote) (Incl. 2,4-7,16,30-39 41-45,49) (Euro SKS)

2682180

Unavailable

8

COVER ASM,SEAT (Euro SKS)

2682399

Unavailable

8

COVERING,SEAT,2UP SERVICE (Euro SKS)

2682478

Unavailable

8

SEAT CUSHION,2-UP,ASM. (See Footnote) (Incl. 2,4-7,16,30-39, 41-45,49) (Euro SKS)

2682482

Unavailable

9

COVER, BACKREST (Euro SKS)

2681265

$257.13

10

BACKREST ASM. (Incl. 9) (Euro SKS)

2681356

$284.75

11

SPACER (Euro SKS)

5431285

Unavailable

12

BOLT(10) Substituted by 7515352 (Euro SKS)

7515306

Unavailable

13

KNOB ASM,BACKREST (Incl. 11,12) (Euro SKS)

2670130

Unavailable

14

REFLECTOR RED (Euro SKS)

2670070

$9.91

15

WASHER,13/64X1/2X18GA,FL-Y (Euro SKS)

7558212

$1.49

15

WASHER,13/64X1/2X18GA,FL-Y (Euro SKS)

7558212

$1.49

16

NUT(10)

7541925

$1.49

16

NUT(10)

7541925

$1.49

17

SCREW (Euro SKS)

7517299

Unavailable

18

PLATE,HITCHBRACE,BLK. (Euro SKS)

5242099-067

$28.95

19

NUT(10) (Euro SKS)

7542151

$3.99

20

NUT-LOCK(10) (Euro SKS)

7542439

$1.49

21

WASHER, WROUGHT(10) Substituted by 7555801 (Euro SKS)

7555928

Unavailable

22

BOLT(10) Substituted by 7515492 (Euro SKS)

7512410

Unavailable

23

NUT-5/16-18 NYLOK-Y (Euro SKS)

7542324

$1.49

24

WASHER-.344X.688X.063 FL-Y (Euro SKS)

7558402

$1.49

25

BOLT(10) Substituted by 7512325 (Euro SKS)

7515363

Unavailable

26

RIVET-3/16-.090-.290 (Euro SKS)

7661637

$1.49

27

GRAB,BAR,LH,BLK (Euro SKS)

1012869-067

$53.59

27

GRAB,BAR,RH,BLK (Euro SKS)

1012870-067

$53.59

28

SCREW(10) (Euro SKS)

7510504

$6.76

29

GRIP, HAND Substituted by 5433383 (Euro SKS)

5431015

$19.68

30

CABLE,TANK,RETENTION

7080559

Unavailable

31

HARNESS,TAILLIGHT

2460398

Unavailable

32

RETAINER-CLIP,TOOL POUCH

5243185

$10.63

33

RIVET(50)

7621472

$1.49

34

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

34

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

35

CLIP,DART,(10)

7670097

Unavailable

36

NUT,RETAINER-WELD.(10)

7542147

$17.59

37

HOUSING,TAILLIGHT Substituted by 5433341

5431545

Unavailable

38

COVER,T/L PROTECTOR

5431436

$21.43

39

RIVET(50)

7621301

$3.99

40

SCREW(10)

7512242

$2.39

41

RIVET(50)

7621464

$3.99

42

FUEL PICKUP,W/FILTER Substituted by 7052301

7052243

Unavailable

42

FUEL PICKUP,W/FILTER Substituted by 7052301 (RMK)

7052243

Unavailable

42

FUELPICKUP,W/STRAINER (Euro SKS)

7052037

$12.94

43

RING, COMPRESSION(10)

7080402

$1.60

44

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

45

FITTING,OUT,90 DEG,,DOUBLE

7052143

Unavailable

46

HOSE CLAMP, RED

7080003

$1.49

47

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

48

FUELLINE,3MMX7MM

8450061-600

Unavailable

49

FITTING,90 DEG,1/8,(10)

7052095

$4.79
