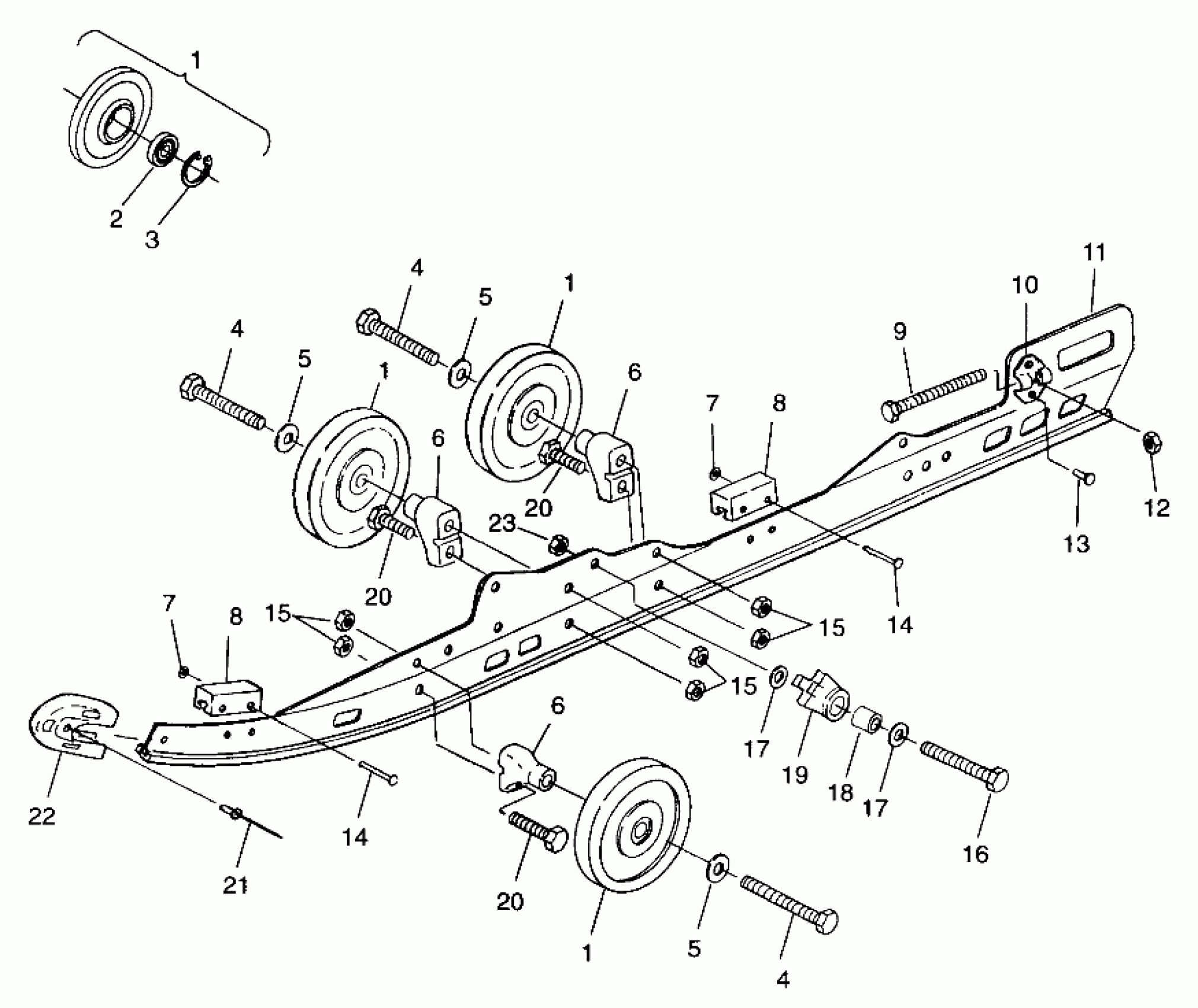

Polaris TRAIL RMK - 099SR5BS RAIL MOUNTING SUSPENSION - E99SS5BU (4948364836b012) Diagram

#

Description
Price

1

WHEEL ASM. (Incl. 2-3)

1594070

$54.99

1

WHEEL ASM. (Incl. 2-3)

1594070

$54.99

1

WHEEL ASM. (Incl. 2-3)

1594070

$54.99

1

WHEEL ASM. (Incl. 2-3)

1594070

$54.99

2

BEARING (1 per Wheel)

3514303

$11.99

3

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

4

BOLT(10)

7515346

$5.59

4

BOLT(10)

7515346

$5.59

4

BOLT(10)

7515346

$5.59

5

WASHER,(10)

7555959

$4.99

5

WASHER,(10)

7555959

$4.99

5

WASHER,(10)

7555959

$4.99

6

MOUNT,WHEEL,MACH

5131314

$53.59

6

MOUNT,WHEEL,MACH

5131314

$53.59

6

MOUNT,WHEEL,MACH

5131314

$53.59

7

NUT, PUSH-ON(10)

7670068

$2.39

7

NUT, PUSH-ON(10)

7670068

$2.39

8

BUMPER,JOUNCE,XL

5811282

Unavailable

8

BUMPER,JOUNCE,XL

5811282

Unavailable

9

SCREW,(10)

7517227

$7.19

10

BRKT,IDLER,ADJ

5241628

$39.99

11

RAIL ASM,LH,LWT,99 SUSP. Substituted by 2201701 (Incl. 7,8,10,11,13,14,21,22)

1541245

Unavailable

11

RAIL ASM,RH,LWT,99 SUSP. Substituted by 2201701 (Incl. 7,8,10,11,13,14,21,22)

1541246

Unavailable

12

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

13

RIVET(50)

7621512

$1.49

14

PIN-HOOD HINGE(10)

7661621

$3.99

14

PIN-HOOD HINGE(10)

7661621

$3.99

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

16

BOLT Substituted by 7515491

7515433

$1.59

17

WASHER(10)

7555893

$1.49

17

WASHER(10)

7555893

$1.49

18

Bushing

5010332

$11.99

19

BLOCK,SPRING SLIDER

5431924

$10.65

20

BOLT(10)

7515317

$4.79

20

BOLT(10)

7515317

$4.79

20

BOLT(10)

7515317

$4.79

21

RIVET(50)

7621435

$1.49

22

CAP,RAIL TIP Substituted by 5434374

5433049

$20.22

23

NUT-LOCK(10)

7542439

$1.49
