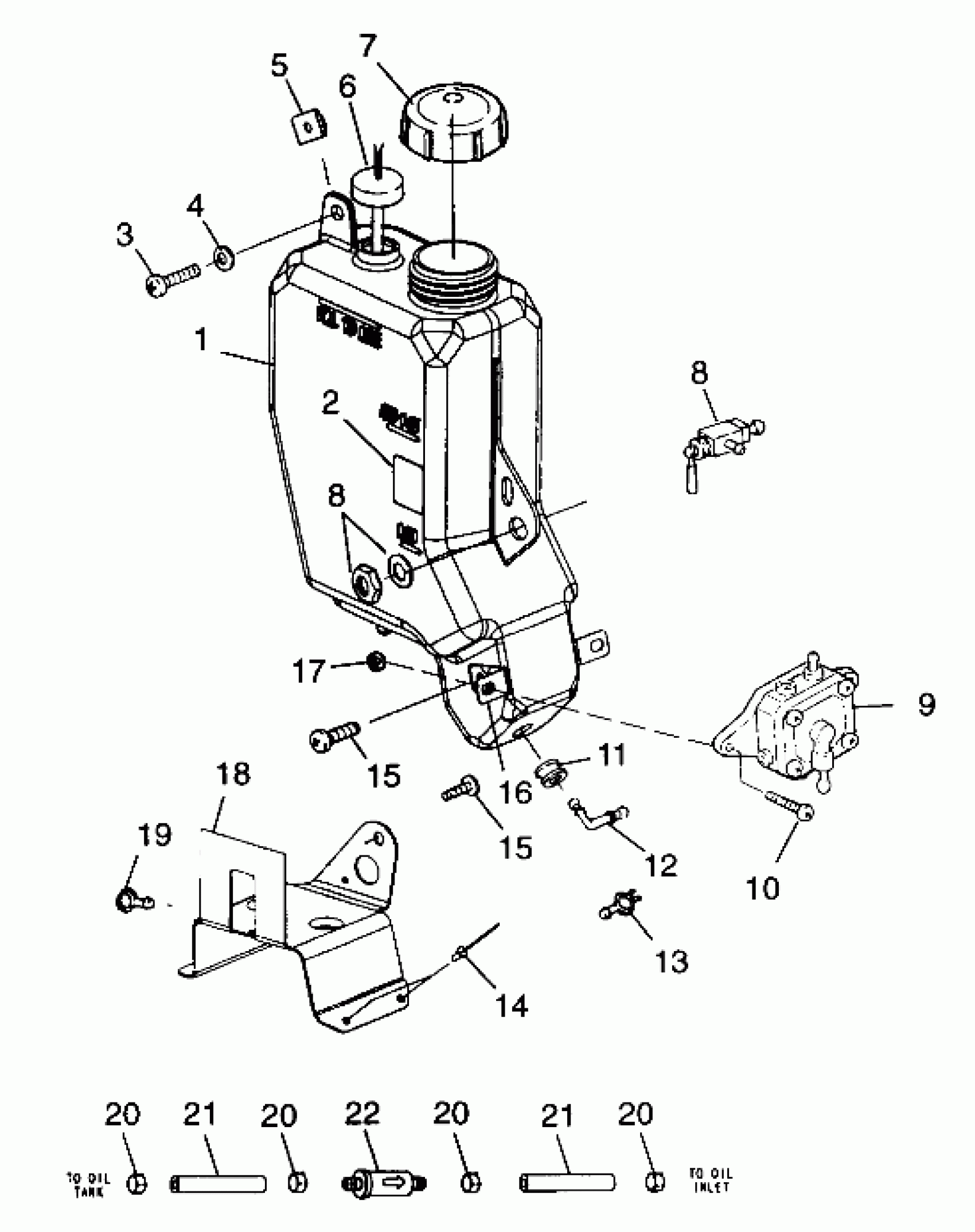

Polaris TRAIL RMK - 099SR5BS OIL TANK - E99SS5BU (4948364836c004) Diagram

#

Description
Price

1

TANK, OIL Substituted by 2201504

5432929

Unavailable

2

DECAL,FUEL SHUT-OFF

7077442

Unavailable

3

BOLT(10)

7512276

$4.79

4

WASHER,WROUGHT(10)

7558302

$1.59

5

Nut

7670096

$1.59

6

SENSOR,OIL LEVEL

4110134

$72.84

7

CAP,OIL,VENTED Substituted by 1240094

2511287

Unavailable

8

Valve, Fuel Shut-Off (See Footnote) (See Engine Mounting Pg. C7, Ref. 21)

-------

Unavailable

8

Valve, Fuel Shut-Off (See Footnote) (See Engine Mounting Pg. C7, Ref. 21)

-------

Unavailable

9

Asm., Fuel Pump (See Footnote) (See Engine Mounting Pg. C7, Ref. 18)

-------

Unavailable

10

Screw

7517264

$3.99

11

GROMMET-TANK FITTING(10)

7052028

$6.39

12

FTTNG,90 D.PRESS-ON

7052208

$6.39

13

CLIP,TWIST LOCK

7080745

$2.23

14

RIVET-3/16-.090-.290

7661637

$1.49

15

SCREW(10)

7517615

$3.19

15

SCREW(10)

7517615

$3.19

16

BRKT,FUEL PUMP MOUNT-Z

5242680

$9.91

17

NUT-LOCK(10)

7542122

$1.49

18

BRKT,OIL/COOL.TANK,ALUM

5242688

Unavailable

19

CLIP, PLASTIC(10)

4020139

$4.79

20

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

20

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

20

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

20

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

21

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

21

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

22

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65
