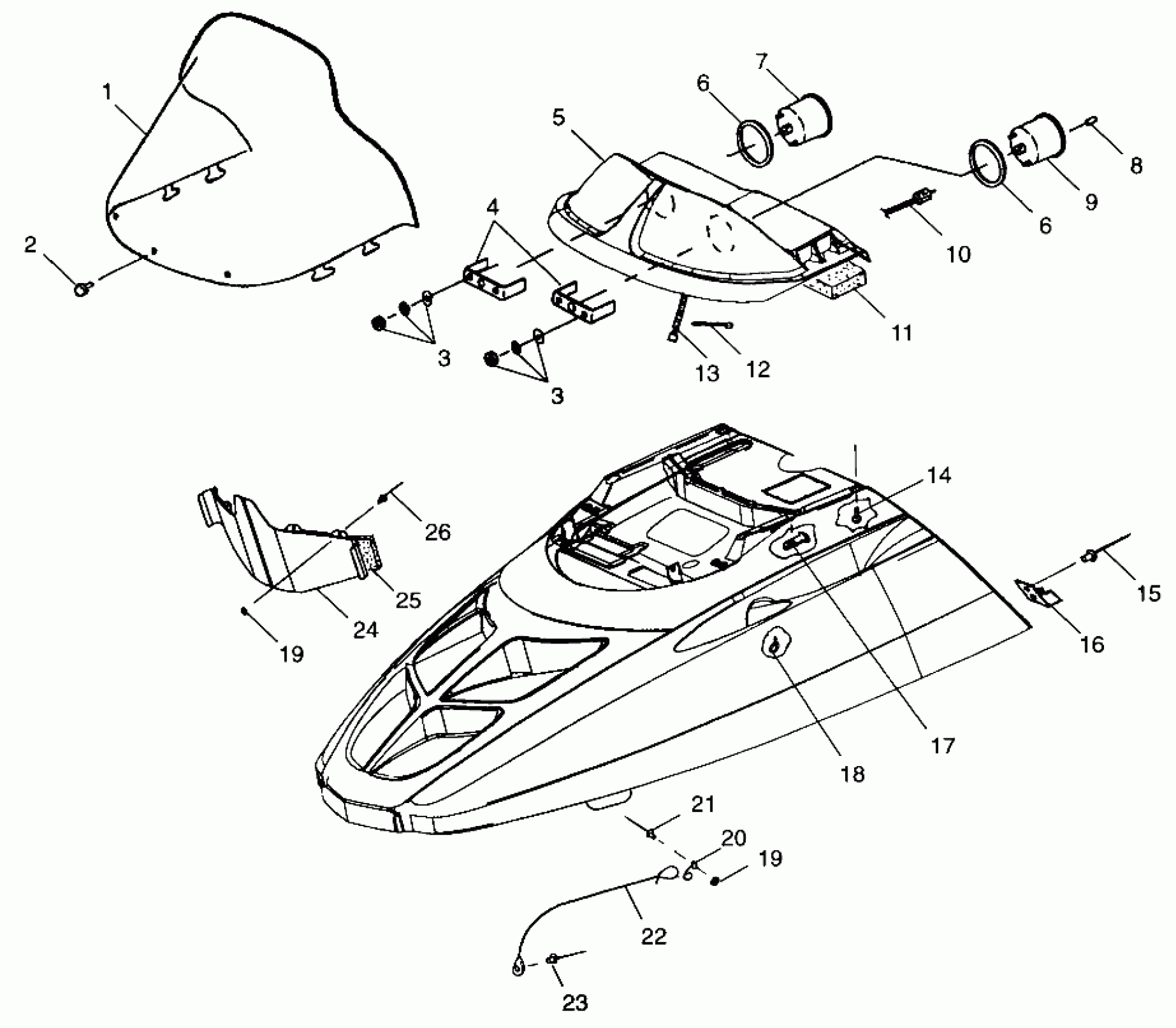

Polaris TRAIL RMK - 099SR5BS HOOD - E99SS5BU (4948364836a011) Diagram

#

Description
Price

1

WINDSHIELD-GEN 2,FLR,14" SMOKE

5433165

Unavailable

2

RIVET,PLASTI-LOC.(50)

7621509

$1.49

3

WASHER,FLAT,(10)

3280157

$2.39

3

Nut

3280158

Unavailable

3

WASHER,SPLIT LOCK

3280156

$1.49

3

WASHER,FLAT,(10)

3280157

$2.39

3

Nut

3280158

Unavailable

3

WASHER,SPLIT LOCK

3280156

$1.49

4

BRKT,TACH/SPEEDO,5"

3280210

$28.32

5

INSTRUMENT HOUSING,EURO (See Footnote) (Euro SKS) (Incl. Warning Decals)

2632012

Unavailable

5

HOUSING ASM,INSTRUMENT (RMK) (Incl. Warning Decals)

2652208

Unavailable

6

CUSHION,TACH/SPEEDO,RUBBER

3280209

$3.99

6

CUSHION,TACH/SPEEDO,RUBBER

3280209

$3.99

7

TACH ASM,6 PULSE,5 IN.

3280250

$196.17

8

KNOB,TRIP ODOMETER,LH THD.

3280186

$9.70

9

SPEEDO ASM,5",190KPH. (Euro SKS)

3280305

Unavailable

9

SPEEDO,5",100MPH,90� ANGLE (RMK)

3280303

$206.65

10

CABLE,SPEEDO,86 IN. Substituted by 3280341

3280296

$60.70

11

FOAM,PREFILTER

5811625

$29.99

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

HARNESS,H/L,LOW LEVEL

2460672

$88.56

14

SCREW(10)

7517441

$2.39

15

RIVET(50)

7621334

$1.49

16

CUP, HOOD LATCH,(10)

5430733

$4.84

17

RETAINER,WINDSHIELD,(10)

5410970

$1.49

18

CLIP,ROSEBUD

4020149

$6.39

19

BURR,RIVET(50)

7555904

$1.49

19

BURR,RIVET(50)

7555904

$1.49

20

CLIP,PIGTAIL

5242893

$6.65

21

RIVET, BLIND(50)

7621467

$1.49

22

CABLE,HOOD,HYB.

7080764

$28.32

23

RIVET-3/16-.090-.290

7661637

$1.49

24

DEFLECTOR-AIR,HOOD

5243212

$19.83

25

FOAM-HOOD AIR DEFLECTOR

5811718

$25.59

26

RIVET(50)

7621339

$1.49
