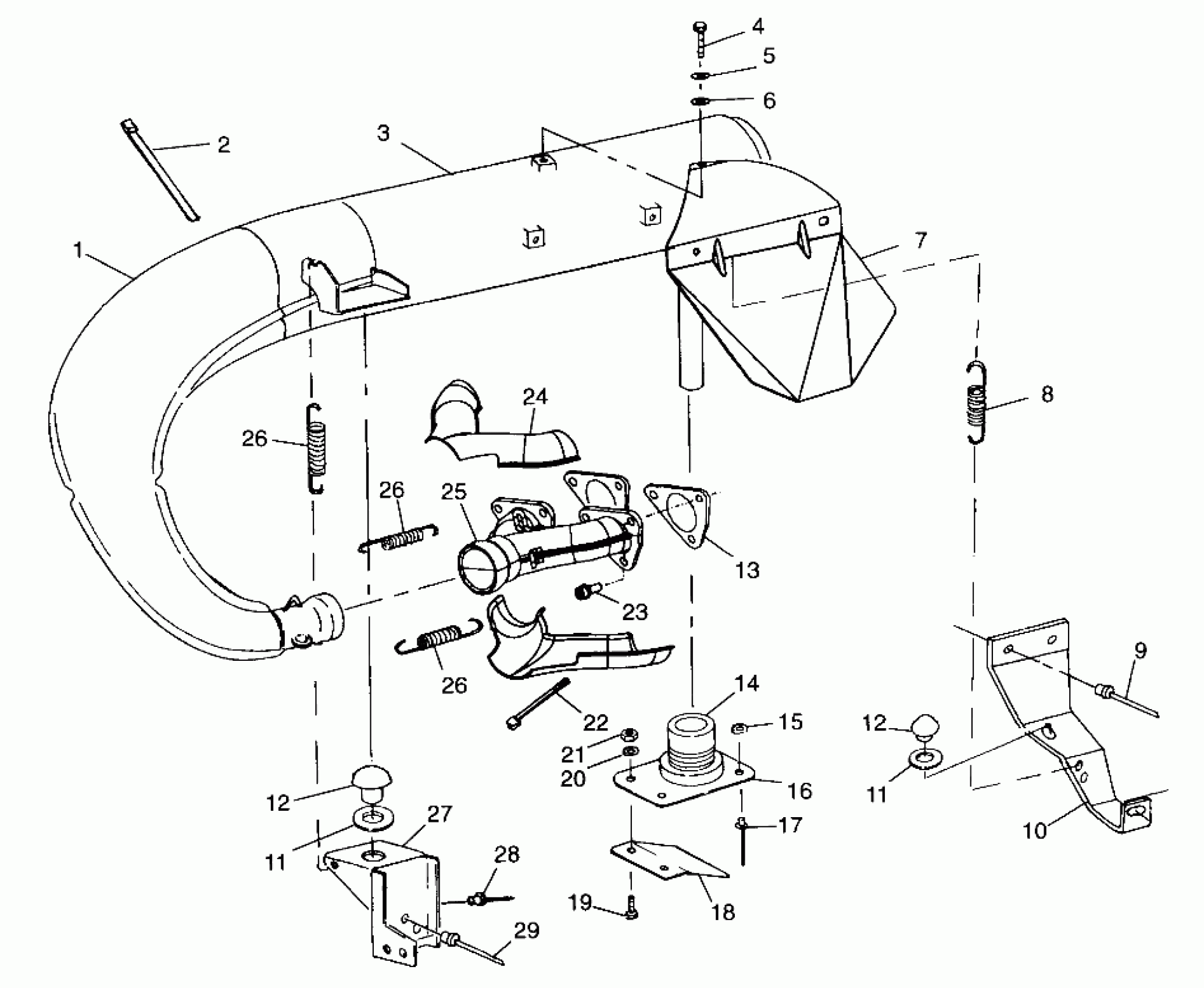

Polaris TRAIL RMK - 099SR5BS EXHAUST SYSTEM - E99SS5BU (4948364836c003) Diagram

#

Description
Price

1

COVER-MEGAPHONE,TOP

5243197

Unavailable

1

COVER-MEGAPHONE,BOTTOM

5243198

Unavailable

2

CLAMP,WORM,(10) (.44 x 3.69)

7080740

$13.19

2

CLAMP-WORM DRIVE,.44WX2.75 DIA (.44 x 2.75)

7080809

$9.59

2

CLAMP-WORM DRIVE,.44WX5.5 DIA (.44 x 5.5)

7080808

Unavailable

3

PIPE,TUNED (Incl. 1,2)

1260927

Unavailable

3

PIPE,TUNED,BLK Substituted by 1260927

1260876-029

Unavailable

4

BOLT(10)

7515354

$3.99

5

LOCK WASHER(10)

7552901

$1.49

6

WASHER(10)

7555734

$1.49

7

SHIELD-MUFFLER

5243214

Unavailable

8

SPRING-EXHAUST(10)

7042029

$4.84

9

RIVET(50)

7621452

$1.49

10

BRKT,TUNED PIPE/CHASSIS,BLK.

5242735-067

$13.19

11

WASHER, THRUST(10)

7555788

Unavailable

11

WASHER, THRUST(10)

7555788

Unavailable

12

DAMPNER, VIB.

5410467

$8.79

12

DAMPNER, VIB.

5410467

$8.79

13

Gasket, Exhaust (See Cylinder Pg. C9, Ref. 4)

-------

Unavailable

14

Boot, Exhaust

5410502

$24.27

15

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

16

HAT,EXH,SNOW DEFLECTOR

5432465

$9.70

17

RIVET, BLIND(50)

7621467

$1.49

18

Deflector, Snow

5222615-067

$20.63

19

BOLT(10)

7512193

$2.39

20

WASHER(10)

7558301

$1.49

21

NUT, LOCK(10)

7542103

$5.59

22

CLAMP, HOSE(10) Substituted by 7080870

7080481

Unavailable

23

SCREW,HXSOC

7517555

$8.79

24

COVER-MANIFOLD

5243196

$84.99

25

MANIFOLD,ASM. (Incl. 22,24)

1260924

Unavailable

25

MANIFOLD,BLK (Incl. 22,24)

1260875-029

Unavailable

26

SPRING-EXHAUST

7041687

$5.65

26

SPRING-EXHAUST

7041687

$5.65

26

SPRING-EXHAUST

7041687

$5.65

27

SUPPORT,MUFFLER,FRT

5242798-067

$17.43

28

RIVET,INTERLOCK(50) Substituted by 7661130

7661639

Unavailable

29

RIVET-3/16-.090-.290

7661637

$1.49
