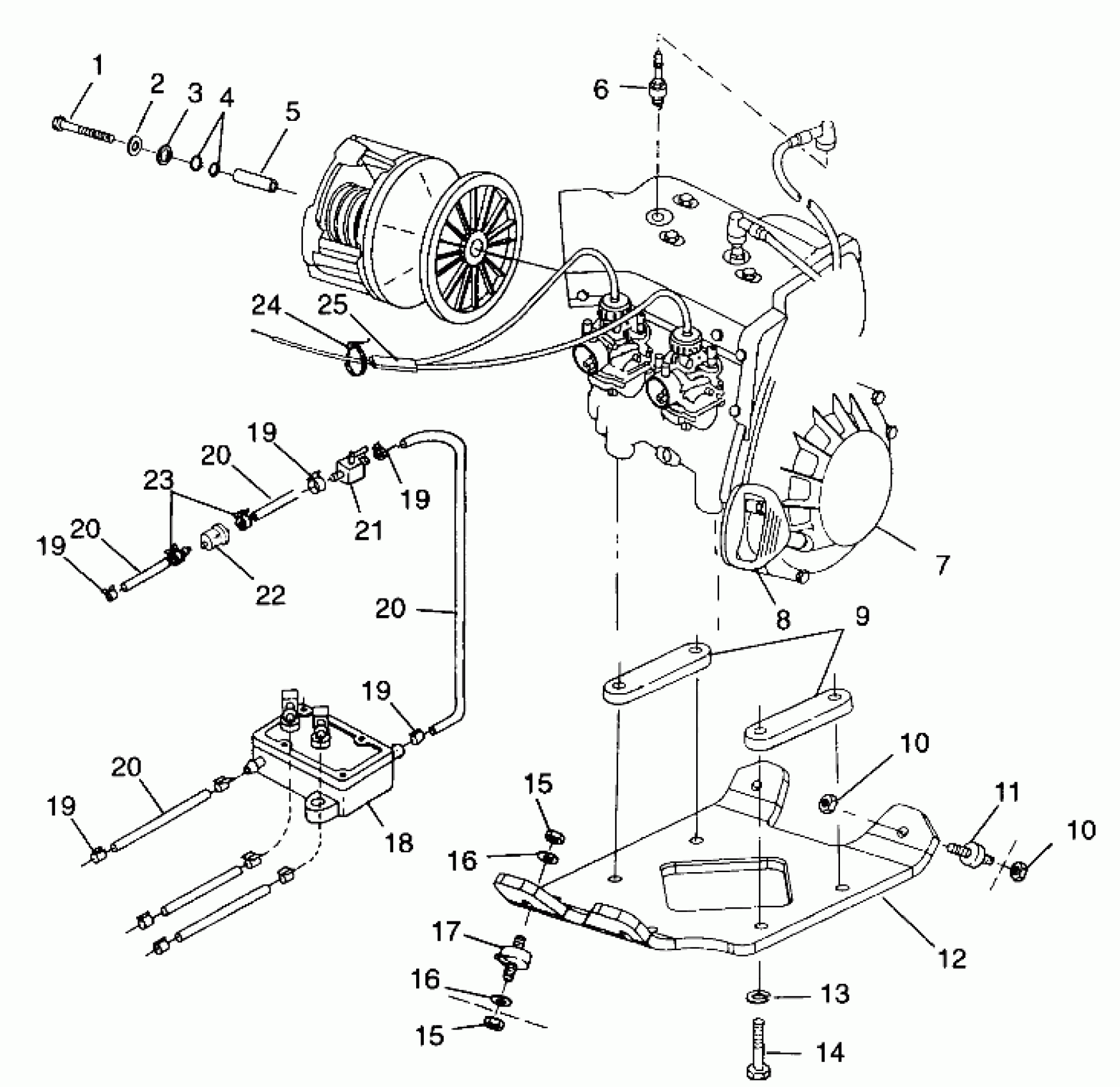

Polaris TRAIL RMK - 099SR5BS ENGINE MOUNTING - E99SS5BU (4948364836c007) Diagram

#

Description
Price

1

SCREW Substituted by 7517776

7517529

Unavailable

2

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

3

WASHER,CLUTCH RETAIN.

5010287

$12.99

4

O RING,(10)

5410507

$1.49

5

SPACER,CLUTCH BOLT

5020513

$44.99

6

SPARKPLUG (10)

3070156

$3.99

7

ENG.(S.B.)EC55PM-010 (See Footnote) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization require

3085618

Unavailable

8

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

9

SPACER-ENGINE,.50

5243195

$61.99

10

NUT,FLEXLOCK,(10)

7547008

$6.39

10

NUT,FLEXLOCK,(10)

7547008

$6.39

11

MOUNT,ENGINE Substituted by 3021099

3110072

$28.32

12

PLATE-MOTOR MOUNT

5132001

$119.99

13

WASHER LOCK(10)

7553101

$3.99

14

BOLT,(10)

7517442

$6.39

15

NUT FLEX LOC,(10)

7542402

$6.39

15

NUT FLEX LOC,(10)

7542402

$6.39

16

WASHER(10)

7555893

$1.49

16

WASHER(10)

7555893

$1.49

17

MOUNT,ENGINE

3110062

Unavailable

18

Asm., Fuel Pump (See Footnote) (See Fuel Pump Pg. C13, Ref. 2)

-------

Unavailable

19

HOSE CLAMP, RED

7080003

$1.49

19

HOSE CLAMP, RED

7080003

$1.49

19

HOSE CLAMP, RED

7080003

$1.49

19

HOSE CLAMP, RED

7080003

$1.49

19

HOSE CLAMP, RED

7080003

$1.49

20

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

20

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

20

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

20

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

21

VALVE,FUEL SHUT-OFF,FAN

7052219

Unavailable

22

FILTER-FUEL,WHITE

2520156

Unavailable

22

FILTER-FUEL,WHITE (Euro SKS)

2520156

Unavailable

23

CLAMP,SPRING,(10)

7080534

$1.59

24

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

25

CABLE-THROTTLE

7080776

Unavailable
