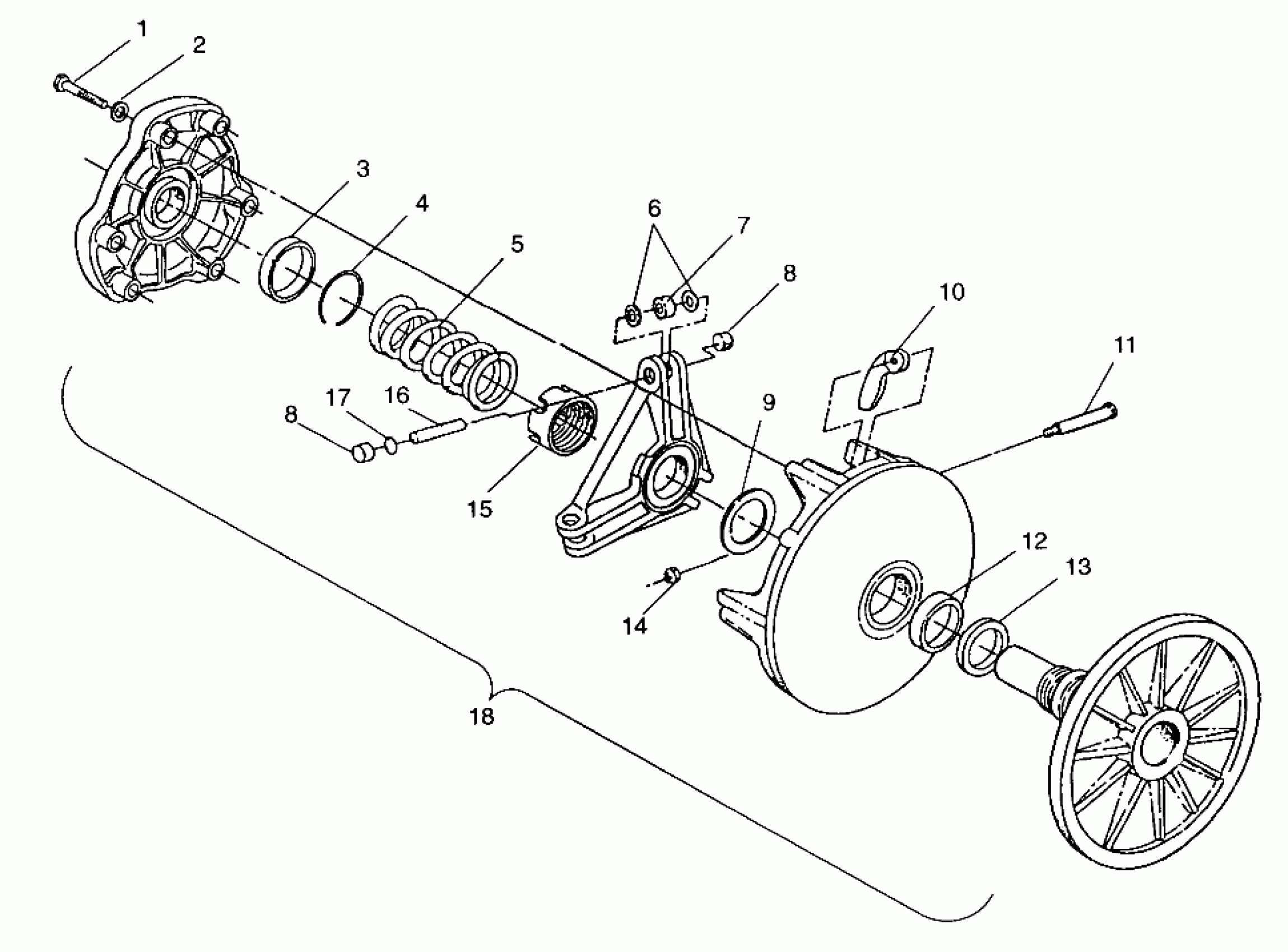

Polaris TRAIL RMK - 099SR5BS DRIVE CLUTCH - E99SS5BU (4948364836c001) Diagram

#

Description
Price

-

KIT,CLUTCH UPDATE (Incl. 6-8,11,16,17)

2200386

Unavailable

1

BOLT,(10)

7512265

$3.99

2

LOCK WASHER(10)

7552801

$1.59

3

COVER,BEARING,GARMAX

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

SPRING,(DK.BLU) Substituted by 7041781

7041526

$56.65

6

WASHER,MULTILUBE

5430945

$1.59

7

ASM-ROLLER AND BUSHING

1321622

$32.37

8

BUTTON, GUIDE,(10)

5430445

$6.39

8

BUTTON, GUIDE,(10)

5430445

$6.39

9

SPACER(10) (.050,)

5210754

Unavailable

9

SPACER(10) (.050")

5210754

Unavailable

9

SPACER(10) (.025,)

5242981

Unavailable

9

SPACER(10) (.025")

5242981

Unavailable

9

SPACER(10) (.020,)

5210752

Unavailable

9

SPACER(10) (.020")

5210752

Unavailable

9

SPACER(10) (.032,)

5210753

Unavailable

9

SPACER(10) (.032")

5210753

Unavailable

10

WT/BUSH.ASM,10-56(6) (10-56) (RMK)

1321684

$59.99

10

Weight/Bushing (10-60) (10-60) (Euro SKS)

1321587

$40.46

11

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

12

SLEEVE, BEARING

3576502

$23.99

13

INSERT-MOVEABLE

5010188

$7.99

14

NUT FLEX LOC(10)

7541906

$3.19

15

NUT-JAM

5020425

$23.99

16

PIN-ROLLER

5020422

$2.39

17

Kit - Shim, Drive Clutch

2200387

$24.27

18

CLUTCH,BASIC#94(DRIVE) (Incl. All Less 5,10)

1321768

Unavailable
