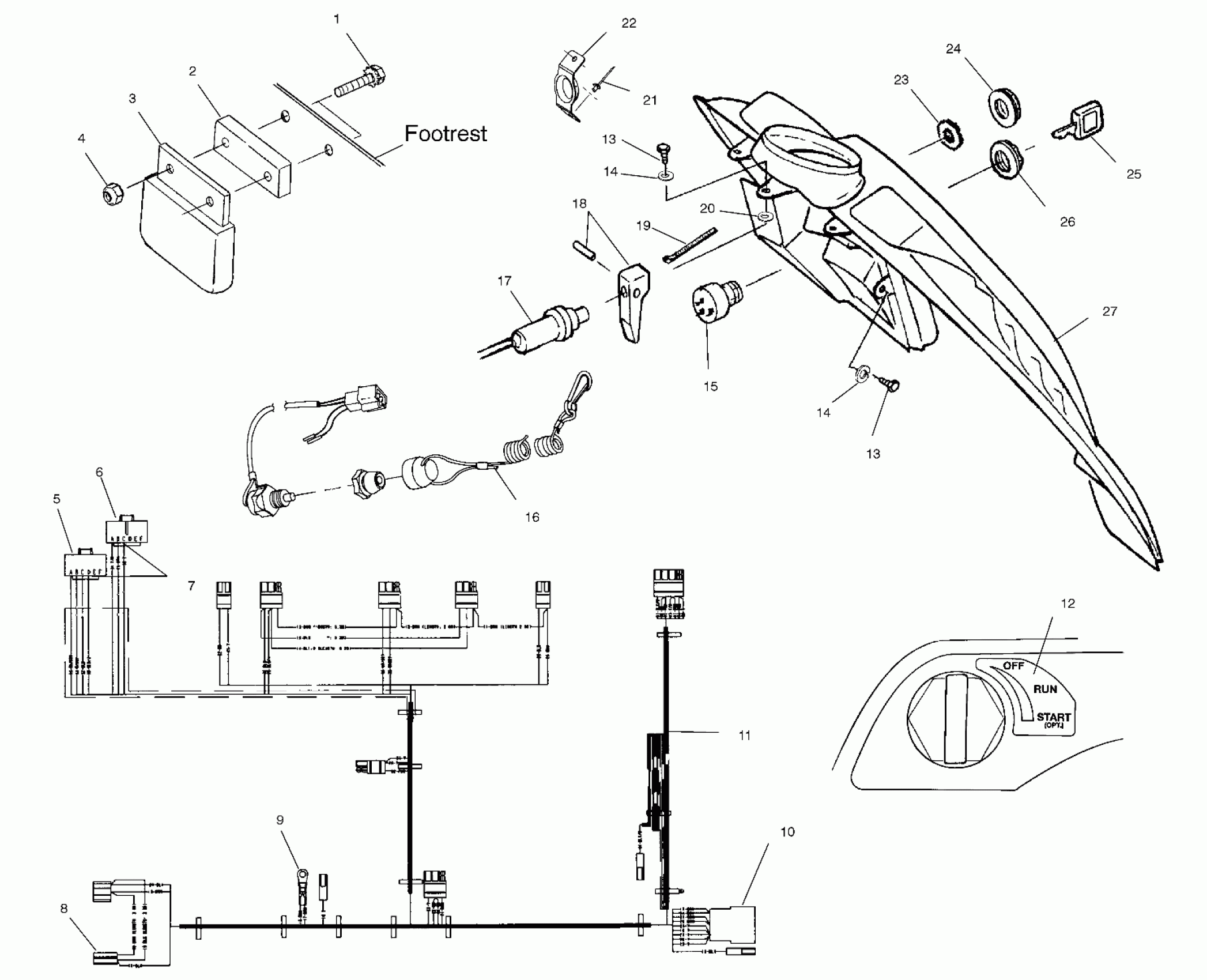

Polaris TRAIL RMK - 099SR5BS CONSOLE - E99SS5BU (4948364836b001) Diagram

#

Description
Price

1

BOLT(10)

7512031

$2.23

2

SPACER,REGULATOR

5211573

Unavailable

3

REGULATOR,(14.3VAC),LR-7

4060123

Unavailable

4

NUT(10)

7541925

$1.49

5

DESC NOT_AVAILABLE

4020194

Unavailable

6

DESC NOT_AVAILABLE

4020193

Unavailable

7

SOCKET-PACKARD#12047767

4010192

Unavailable

8

HOUSING

4020063

$3.19

9

Terminal, Ring

4020092

Unavailable

10

Housing w/Receptacle

4020057

$3.51

11

HARNESS-MAIN WIRE,LO LEVEL Substituted by 2460733

2460703

$204.76

12

DECAL,CONSOLE,IGNITION

7077367

Unavailable

13

SCREW(10)

7512057

$2.38

13

SCREW(10)

7512057

$2.38

14

WASHER(10)

7558203

$3.19

14

WASHER(10)

7558203

$3.19

15

KIT,IGN.SWITCH

2200358

$76.89

16

SWITCH-TETHER,HYBRID (Euro SKS)

4010187

Unavailable

17

Cable, Choke Control (Incl. 18,23)

7080290

$105.22

17

Cable, Choke Control (Incl. 18,24)

7080290

$105.22

18

LEVER,CHOKE Substituted by 2201439 (Incl. Pin)

5432943

Unavailable

19

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

20

RIVET, POP(50)

7621330

$1.49

20

WASHER,NYLON

7555932

$2.39

21

RIVET, POP(50)

7621330

$1.49

21

GUIDE-RECOIL

5243049

$9.70

22

WASHER-LOCK(10)

7571610

$3.99

22

GUIDE-RECOIL

5243049

$9.70

23

WASHER-LOCK(10)

7571610

$3.99

23

NUT,CHOKE

5432944

$8.79

24

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on undersid

5410611

Unavailable

24

NUT,CHOKE

5432944

$8.79

25

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on undersid

5410611

Unavailable

25

NUT,IGNITION

7547035

$8.79

26

NUT,IGNITION

7547035

$8.79

26

CONSOLE,HYBRID,BLK (RMK)

5432906

Unavailable

26

CONSOLE-HYB,STD,EURO (Euro SKS)

5433214

$70.39

27

CONSOLE,HYBRID,BLK (RMK)

5432906

Unavailable

27

CONSOLE-HYB,STD,EURO (Euro SKS)

5433214

$70.39
