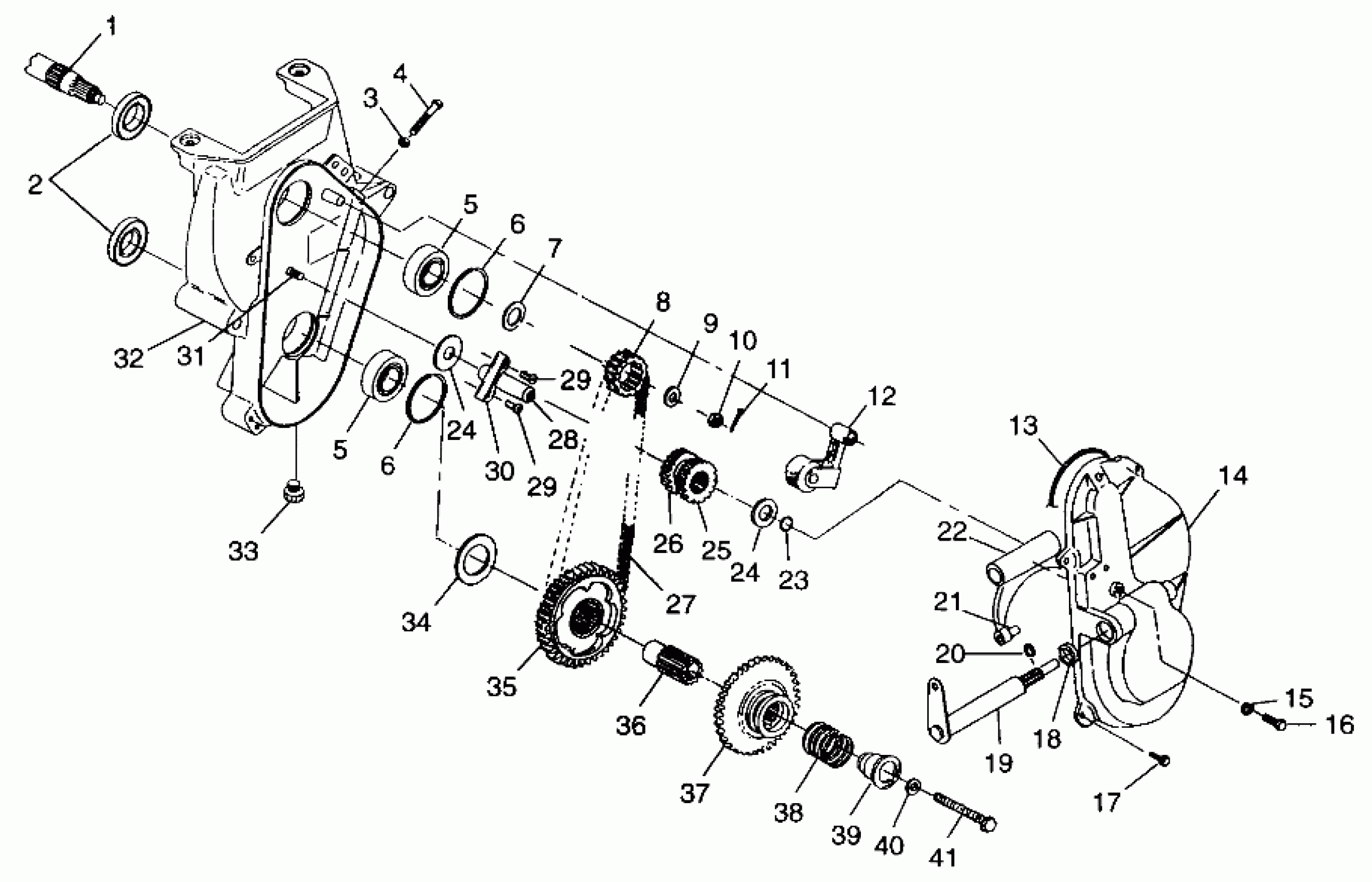

Polaris TRAIL RMK - 099SR5BS CHAINCASE - E99SS5BU (4948364836b009) Diagram

#

Description
Price

1

Asm., Jackshaft (See Footnote) (See Drive Train Pg. B7, Ref. 16)

-------

Unavailable

2

SEAL-OIL

3610030

$20.22

3

NUT(10)

7542404

$1.59

4

SCREW(10)

7515551

$6.39

5

BEARING,BALL

3514309

$15.87

5

BEARING,BALL

3514309

$15.87

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

WASHER(10)

7555917

$2.39

8

SPKT,18T,3/4W,15T SPL,HYVO Substituted by 2900002

3221085

Unavailable

9

WASHER, SLOTTED(10)

7571620

$7.19

10

NUT

7542811

Unavailable

11

COTTER PIN(10)

7661401

$1.49

12

PIN,CHAIN TIGHTENER

7662210

Unavailable

12

TIGHTENER ASM,GEARCASE Substituted by 1332213

1332096

$159.99

12

BEARING

3553002

$11.99

12

BLOCK,TIGHTENER [No Longer Available]

5630122

Unavailable

12

WHEEL,C/C IDLER

5630123

Unavailable

12

WASHER THRUST(10)

7558702

$1.59

12

TIGHTENER,CHAINCASE

1332213

$159.99

12

Block, Tightener

-------

Unavailable

13

GASKET,CHAINCASE,LONG

5411207

$20.22

14

CVR,CHAINCASE,REV,MACH

5131454

Unavailable

15

WASHER WROUGHT(10)

7558403

$4.79

16

SCREW(10)

7512492

$1.49

17

SCREW(10)

7512242

$2.39

18

Seal, Oil

3610029

$8.89

19

SHAFT,SHIFT,BLK

1341221-067

$35.99

20

RING, RETAINER(10)

7710415

$3.99

21

PIN, SHIFT FORK(10)

7661826

$5.65

22

KIT,SHIFT FORK/SHAFT (Incl. 19,21)

2200363

Unavailable

22

Fork, Shift

5130805

Unavailable

23

O RING

5410589

$4.99

24

WASHER,THRUST(10)

7555877

$3.99

24

WASHER,THRUST(10)

7555877

$3.99

25

GEAR,SPUR PINION

1341075

$149.99

26

SPROCKET,PINION

1341241

Unavailable

27

CHAIN,HYVO 68 P,3/4W

3221112

$124.99

28

SHAFT,PINION,W/WRENCH FLATS

5131770

Unavailable

29

SCREW(10)

7512019

$3.99

29

SCREW(10)

7512019

$3.99

30

BRACKET-CHAIN RETENTION,7.05

5243162

Unavailable

31

BOLT(10)

7515477

$34.99

32

CHAINCASE,VENTED

5131455

Unavailable

33

PLUG(10)

7052115

$5.65

34

WASHER, REVERSE(10)

7555871

$5.59

35

Bearing, Needle

3555104

Unavailable

35

SPKT.ASM,41T,REV,3/4W,PM

1341228

Unavailable

36

Coupler, Drive

5130720

Unavailable

37

GEAR ASM,REVERSE Substituted by 1341362

1341121

$559.99

38

SPRING, COMPRESSION Substituted by 7041887

7041309

$44.99

39

RETAINER,DRIVE COUPLER

5130727

Unavailable

40

LOCK WASHER(10)

7552901

$1.49

41

SCREW, NYLOK(10)

7515348

$4.79
