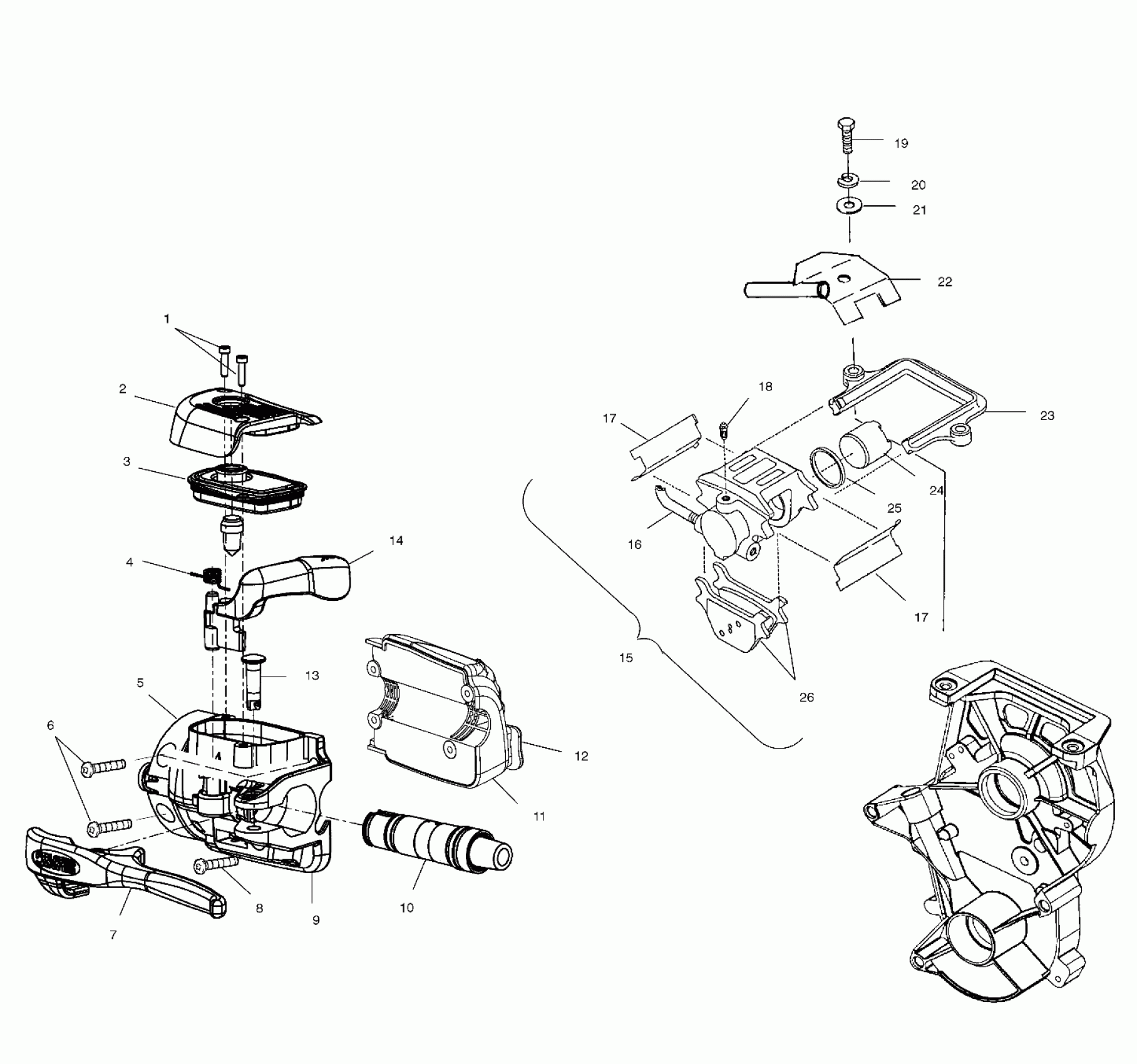

Polaris TRAIL RMK - 099SR5BS BRAKE - E99SS5BU (4948364836b002) Diagram

#

Description
Price

1

KIT,COVER SCREW,(HAYES)

2201254

$19.99

2

KIT,COVER ASM,(HAYES) (Incl. 1,3)

2201255

$89.03

3

GASKET

-------

Unavailable

4

KIT,PARKLEVER SPRING

2201250

$24.27

5

MASTERCYL ASM,HAYES,5/8 Substituted by 2010209 (Incl. 2,4,7,9,10,12)

2050087

$304.98

5

MASTERCYL ASM,HAYES,5/8 Substituted by 2010209 (Incl. 2,4,7,9,10,13)

2050087

$304.98

6

SCREW(10)

7517441

$2.39

7

KIT,LEVER&PIVOT PIN,(HAYES) Substituted by 2201569

2201253

Unavailable

8

SCREW(10)

7517566

$3.99

9

KIT,CLAMP BODY/RESERVOIR KIT Substituted by 2201948

2201249

$304.98

9

SWITCH,BRAKE LIGHT

4010157

Unavailable

10

KIT,5/8" CARTRIDGE SUB-ASM.KIT Substituted by 2201944

2201248

Unavailable

11

CONTROL ASM,LH,(BASIC)

2010167

$93.08

12

BUTTON SWITCH HI/LO

5433291

Unavailable

12

KIT,PIVOT PIN,(HAYES) Substituted by 2201946

2201252

Unavailable

13

KIT,PARKLEVER & SPRING (Incl. 4)

2201251

$44.51

13

KIT,PIVOT PIN,(HAYES) Substituted by 2201946

2201252

Unavailable

14

KIT,PARKLEVER & SPRING (Incl. 4)

2201251

$44.51

14

CALIPER,BRAKE,HYBRID,FAN Substituted by 1910350 (Incl. 23,24,25)

1910321

Unavailable

15

LINE-BRAKE,HYBRID

1910313

Unavailable

15

CALIPER,BRAKE,HYBRID,FAN Substituted by 1910350 (Incl. 24,25,26)

1910321

Unavailable

16

KIT,CLIP SPRING (Qty. 2)

2200467

Unavailable

16

LINE-BRAKE,HYBRID

1910313

Unavailable

17

KIT, INLET

1930735

$9.11

17

KIT,CLIP SPRING (Qty. 2)

2200467

Unavailable

17

KIT, INLET

1930735

$9.11

17

KIT,CLIP SPRING (Qty. 2)

2200467

Unavailable

18

KIT, INLET

1930735

$9.11

18

BOLT(10)

7515521

$3.99

19

WASHER(10)

7552603

$1.49

19

BOLT(10)

7515521

$3.99

20

WASHER(10)

7552603

$1.49

20

WASHER(10)

7555806

$1.49

21

WASHER(10)

7555806

$1.49

21

ROPE GUIDE,CC-Z

1012849

$66.39

22

KIT,CALIPER BRKT.

1930733

Unavailable

22

ROPE GUIDE,CC-Z

1012849

$66.39

23

KIT,CALIPER BRKT.

1930733

Unavailable

23

KIT, PISTON SEAL (Incl. 24)

1930734

Unavailable

24

KIT, PISTON SEAL (Incl. 25)

1930734

Unavailable

24

SEAL

2200466

$32.37

25

SEAL

2200466

$32.37

25

KIT,BRAKEPAD,HD,TYPE 69 Substituted by 2201430 (Incl. 16)

2201020

Unavailable

25

KIT,BRAKEPAD,TYPE 69 Substituted by 2201429

2201019

Unavailable

26

KIT,BRAKEPAD,HD,TYPE 69 Substituted by 2201430 (Incl. 17)

2201020

Unavailable

26

KIT,BRAKEPAD,TYPE 69 Substituted by 2201429

2201019

Unavailable
