Description

Price

-

GEARCASE ASM,PRD. Substituted by 1341124 (Incl. 1-32, 34-42, 43, 44)

1341151

Unavailable

1

GEARCASE, LH.

3233095

$298.99

2

Screw

3233026

$6.46

3

Seal

3233248

$30.88

3

Seal

3233248

$30.88

3

Seal

3233248

$30.88

4

BUSHING,PIVOT

3233024

Unavailable

4

BUSHING,PIVOT

3233024

Unavailable

5

STUD

3233025

Unavailable

6

PIPE, KNOCK

3233021

Unavailable

6

PIPE, KNOCK

3233021

Unavailable

7

RAIL,SHIFT,ASM.

3233098

Unavailable

8

PLUG

3233178

Unavailable

9

SHAFT,SHIFT,ASM,

3233117

Unavailable

10

O-RING

3233179

Unavailable

11

WASHER

3233119

$7.79

12

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

13

BELLCRANK, HI/REV

3233155

Unavailable

14

Washer

3233054

$6.46

15

Nut

3233055

Unavailable

16

SWITCH,TRANS.INDIC.

4110172

Unavailable

17

PIN

3233031

$32.11

17

PIN

3233031

$32.11

18

SCREW Substituted by 3233747

3233033

Unavailable

19

BRACKET

3233030

$21.43

20

Spring

3233032

$12.94

21

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

22

WASHER

3233007

Unavailable

23

DOG,FWD.ENGAGE.

3233184

Unavailable

24

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

25

Washer

3233105

$7.19

26

SPKT,19T,FWD.

3233242

Unavailable

27

BEARING, NEEDLE

3233103

$31.99

28

GEAR,REVERSE,19T

3233241

$217.49

29

SHAFT, INPUT

3233181

$214.29

30

DOG,REV.ENGAGE.

3233180

Unavailable

31

WASHER

3233099

Unavailable

32

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

33

BUSHING,SPEEDO.DRIVE

5020741

$9.03

34

BEARING

3233020

$47.99

34

BEARING

3233020

$47.99

35

VALVE,SHOCK

1500032

$4.95

36

GEAR, 65T

3233109

Unavailable

37

SPROCKET, 51T

3233121

Unavailable

38

CHAIN,SILENT,60P (11W)

3233111

$79.19

39

SHAFT, OUTPUT

3233112

Unavailable

40

GEARCASE,RH.

3233185

Unavailable

41

Washer

3233035

Unavailable

42

Plug

3233448

$23.99

43

Dipstick

3233478

$23.99

44

Vent

3233037

Unavailable

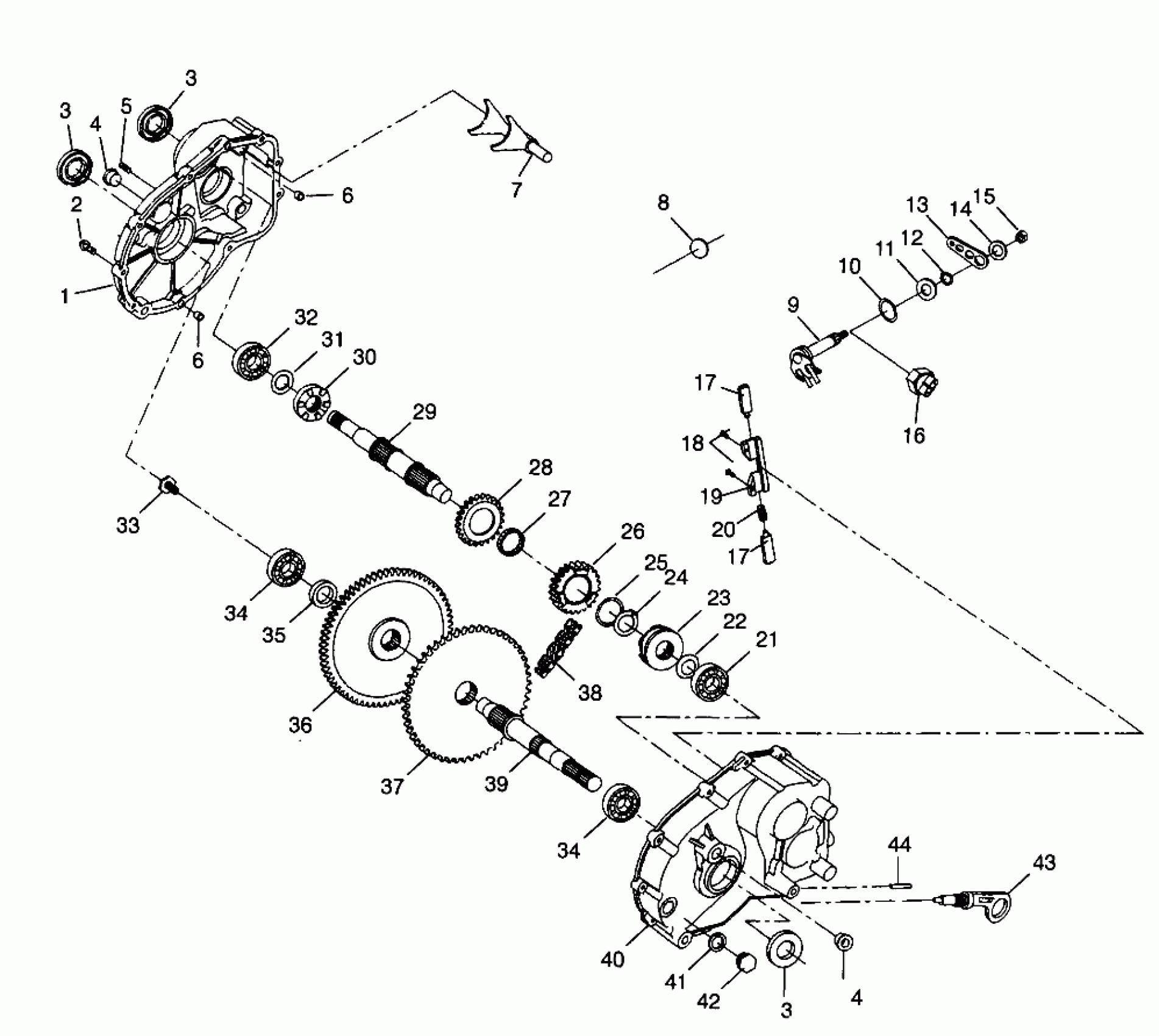

Polaris TRAIL BOSS - W98AA25C GEARCASE Trail Boss W98AA25C (4945314531C003) Diagram

GEARCASE ASM,PRD. Substituted by 1341124 (Incl. 1-32, 34-42, 43, 44)

GEARCASE, LH.

Screw

Seal

Seal

Seal

BUSHING,PIVOT

BUSHING,PIVOT

STUD

PIPE, KNOCK

PIPE, KNOCK

RAIL,SHIFT,ASM.

PLUG

SHAFT,SHIFT,ASM,

O-RING

WASHER

RING,RETAINING BASIC,EXTERNAL 0.75

BELLCRANK, HI/REV

Washer

Nut

SWITCH,TRANS.INDIC.

PIN

PIN

SCREW Substituted by 3233747

BRACKET

Spring

BEARING-BALL,6307 C3,35X80X21

WASHER

DOG,FWD.ENGAGE.

RING,RETAINING BASIC,EXTERNAL 0.984

Washer

SPKT,19T,FWD.

BEARING, NEEDLE

GEAR,REVERSE,19T

SHAFT, INPUT

DOG,REV.ENGAGE.

WASHER

BEARING, BALL, 6205 C3 25X52X15

BUSHING,SPEEDO.DRIVE

BEARING

BEARING

VALVE,SHOCK

GEAR, 65T

SPROCKET, 51T

CHAIN,SILENT,60P (11W)

SHAFT, OUTPUT

GEARCASE,RH.

Washer

Plug

Dipstick

Vent
