Partiron

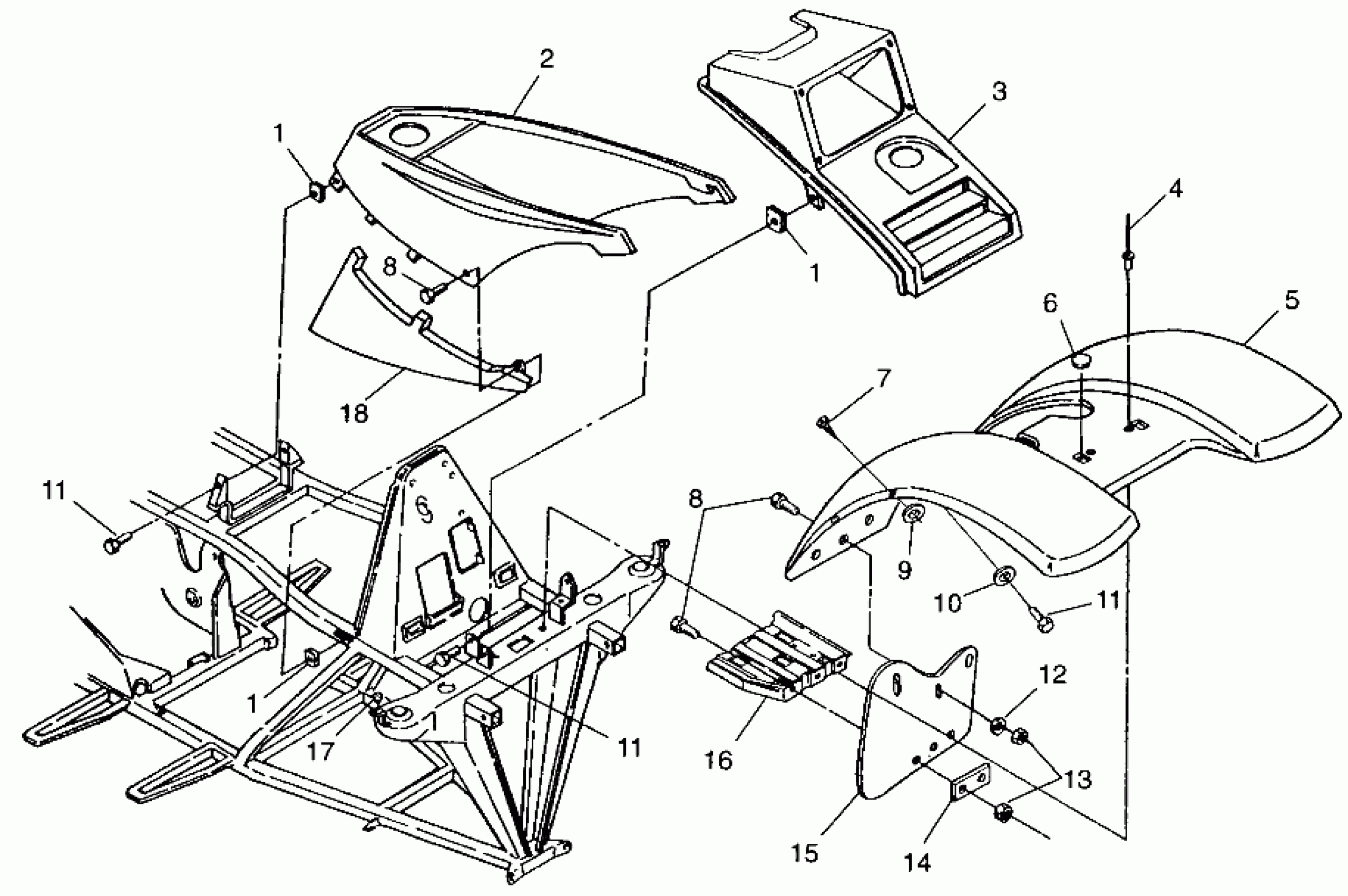

Polaris TRAIL BOSS - W98AA25C FRONT CAB Trail Boss W98AA25C (4945314531A005) Diagram

#

Description
Price

1

NUT, SPEED(10)

7670060

$3.99

1

NUT, SPEED(10)

7670060

$3.99

1

NUT, SPEED(10)

7670060

$3.99

2

COVER, FUEL TANK

5431197-136

Unavailable

3

Cover, Oil Tank/Headlamp (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

4

RIVET(50)

7621460

$1.49

5

CAB ASM,FR,BRT.WHI. Substituted by 2632013-133 (Incl. Warning Decals)

2631924-133

$315.70

6

PLUG, RACK HOLE

5430887

$2.99

7

CLIP, PUSH-ON(10)

7670052

$1.99

8

BOLT, BLACK(10)

7512282

$1.49

8

BOLT, BLACK(10)

7512282

$1.49

9

WASHER,WROUGHT(10)

7558302

$1.59

10

BOLT(10)

7512232

$1.49

10

BOLT(10)

7512232

$1.49

10

BOLT(10)

7512232

$1.49

10

BOLT(10)

7512232

$1.49

11

WASHER, FLAT(10)

7555859

$1.49

12

NUT-LOCK(10)

7542122

$1.49

13

BRKT, LH MUD FLAP

5211131-067

Unavailable

14

MUDFLAP,FRT,LH,BLK.

5850082-070

$11.59

14

MUDFLAP,FRT,RH,BLK.

5850092-070

$10.71

15

Foot Pad (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

16

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

17

COVER,,LH(P.RED)SIDE Substituted by 5433382-136

5430970-136

Unavailable

17

COVER,RH(P.RED)SIDE Substituted by 5433579-136

5430971-136

Unavailable
