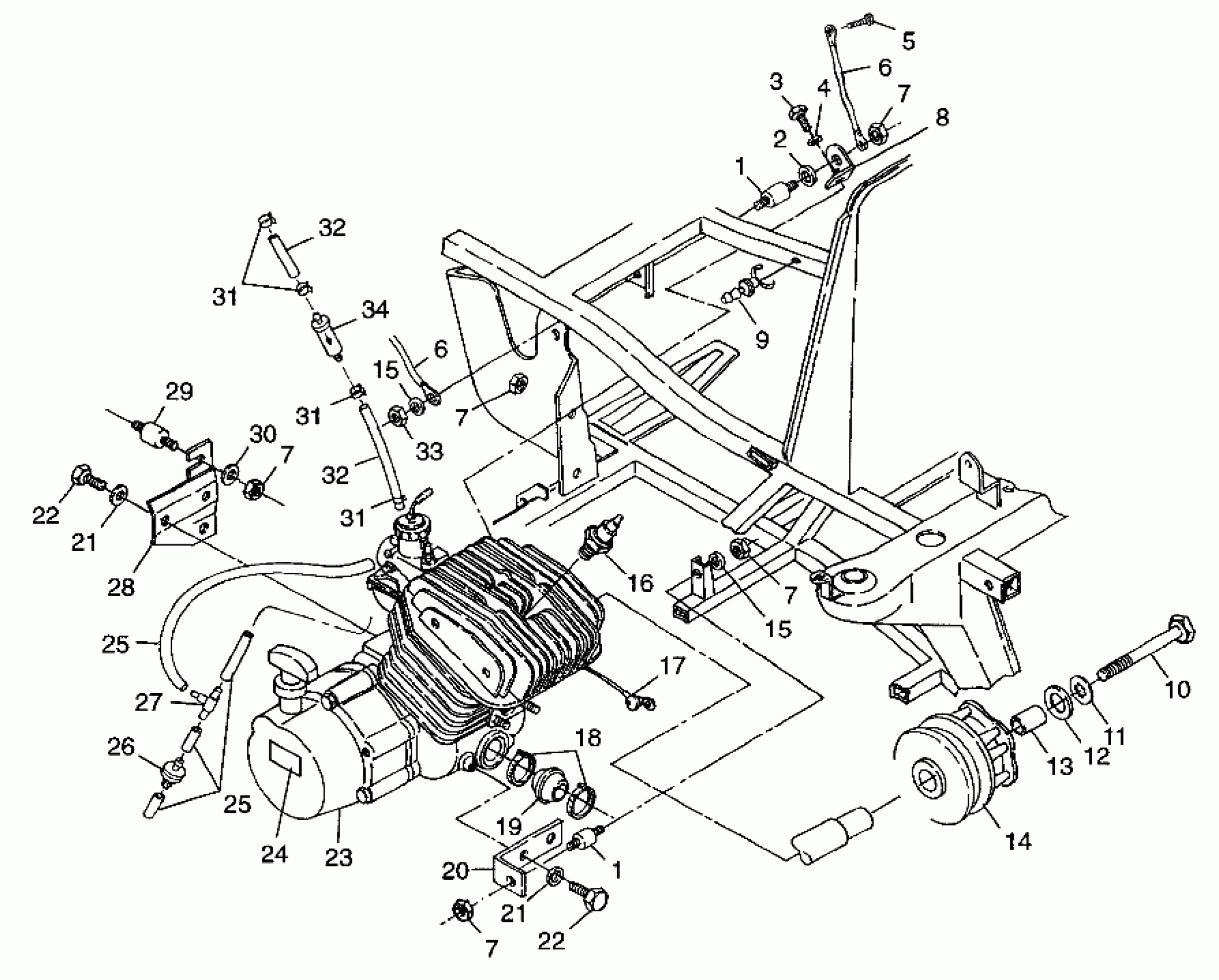

Polaris TRAIL BOSS - W98AA25C ENGINE MOUNTING Trail Boss W98AA25C (4945314531A009) Diagram

#

Description
Price

1

MOUNT,MOTOR

3110026

Unavailable

1

MOUNT,MOTOR

3110026

Unavailable

2

INSULATOR,MOTOR MT.

5430802

$27.99

3

BOLT(10)

7515321

$1.49

4

LOCK WASHER(10)

7552901

$1.49

5

BOLT(10)

7512232

$1.49

6

CABLE,GND-ENGINE

4010132

Unavailable

6

CABLE,GND-ENGINE

4010132

Unavailable

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

8

MT,ENG.TOP,250,BLK

5242073-067

$3.35

9

FITTING,VENT,1/8"

7052192

Unavailable

10

BOLT(10)

7512566

$30.79

11

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

12

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

13

BUSHING-.437 X.770 X.50

5430261

$7.19

14

Asm., Drive Clutch (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

15

WASHER(10)

7555806

$1.49

15

WASHER(10)

7555806

$1.49

16

SPARKPLUG (10)

3070156

$3.99

17

INSULATOR-CABLE

5410346

$6.39

18

CLAMP, NARROW BAND(10)

7080511

$4.79

19

BOOT,CLUTCH INTAKE

5410421

$11.19

20

PLATE,FR.MTR.MT.

5220881-067

Unavailable

21

WASHER(10)

7552603

$1.49

21

WASHER(10)

7552603

$1.49

22

SCREW(10)

7512490

$3.99

22

SCREW(10)

7512490

$3.99

23

ENG.(S.B.)EC25PF-SB [No Longer Available] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization req

3084717

Unavailable

24

DECAL,DRAIN RECOIL Substituted by 7078577

7075741

Unavailable

25

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

25

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

26

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

27

Fitting, Tee

7052005

Unavailable

28

MT,REAR,(300),BLK.

5241176-067

Unavailable

29

MOUNT, MOTOR

3110028

Unavailable

30

WASHER(10)

7555801

$3.99

31

CLAMP-HOSE,(10)

7080236

$1.59

31

CLAMP-HOSE,(10)

7080236

$1.59

31

CLAMP-HOSE,(10)

7080236

$1.59

32

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

32

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

33

NUT LOCK(10)

7542411

$3.19

34

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65
