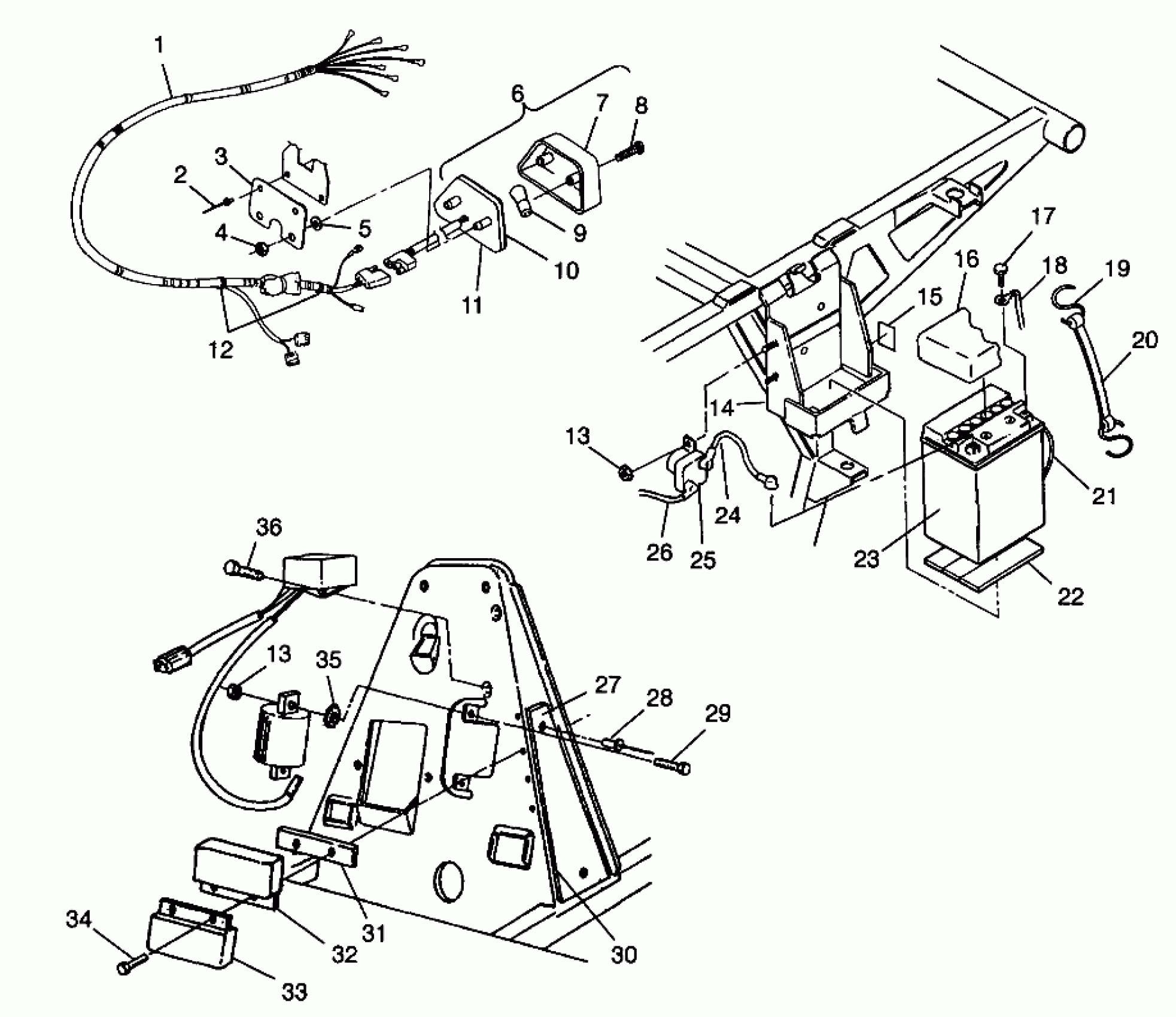

Polaris TRAIL BOSS - W98AA25C ELECTRICAL/TAILLIGHT Trail Boss W98AA25C (4945314531C002) Diagram

#

Description
Price

1

HARNESS,MAIN,(TRL.BOSS)

2460487

Unavailable

2

RIVET(50)

7621470

$3.17

3

ISOLATOR,TAILLIGHT

5211391-067

$13.39

4

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

5

WASHER,NYLON(10)

7555916

$1.59

6

TAIL LIGHT ASM.

2432034

$55.99

7

LENS,TAILLIGHT

4032046

$32.37

8

Screw, Taillight

4032029

$4.79

9

BULB,TAILLIGHT

4030043

$6.46

10

GASKET,TAILLIGHT

4032045

$4.03

11

BACKING,TAILLIGHT

4032064

$83.99

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

NUT(10)

7541925

$1.49

13

NUT(10)

7541925

$1.49

14

SCREW(10)

7512027

$1.49

15

DECAL, BATTERY [No Longer Available]

7072606

Unavailable

16

COVER,BATTERY

5431769

$14.39

17

BOLT,BATT,KIT(SHORT)

2200361

$3.99

18

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

19

HOOK-BATT.H/D(10)

7010032

$1.59

20

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

21

TUBE,BATTERY VENT

5432077

Unavailable

22

PAD-BATTERY

5810290

$7.27

23

Battery

4140006

$99.99

24

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

25

Magnetic Switch (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

26

CABLE,SOLENOID/STARTER

4010064

Unavailable

27

BOARD,TERMINAL

4040056

Unavailable

28

RIVET, POP(50)

7621322

$0.56

29

SCREW(10)

7512007

$3.99

30

SHIELD,TERM.BOARD

5431152

Unavailable

31

HEAT SINK

5210650

Unavailable

32

RECTIFIER/REGULATOR,LR39-1

4060193

Unavailable

33

LIMITER,REV.SPEED

4060085

Unavailable

34

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

35

WASHER(10)

7571602

$4.79

36

BOLT(10)

7512232

$1.49
