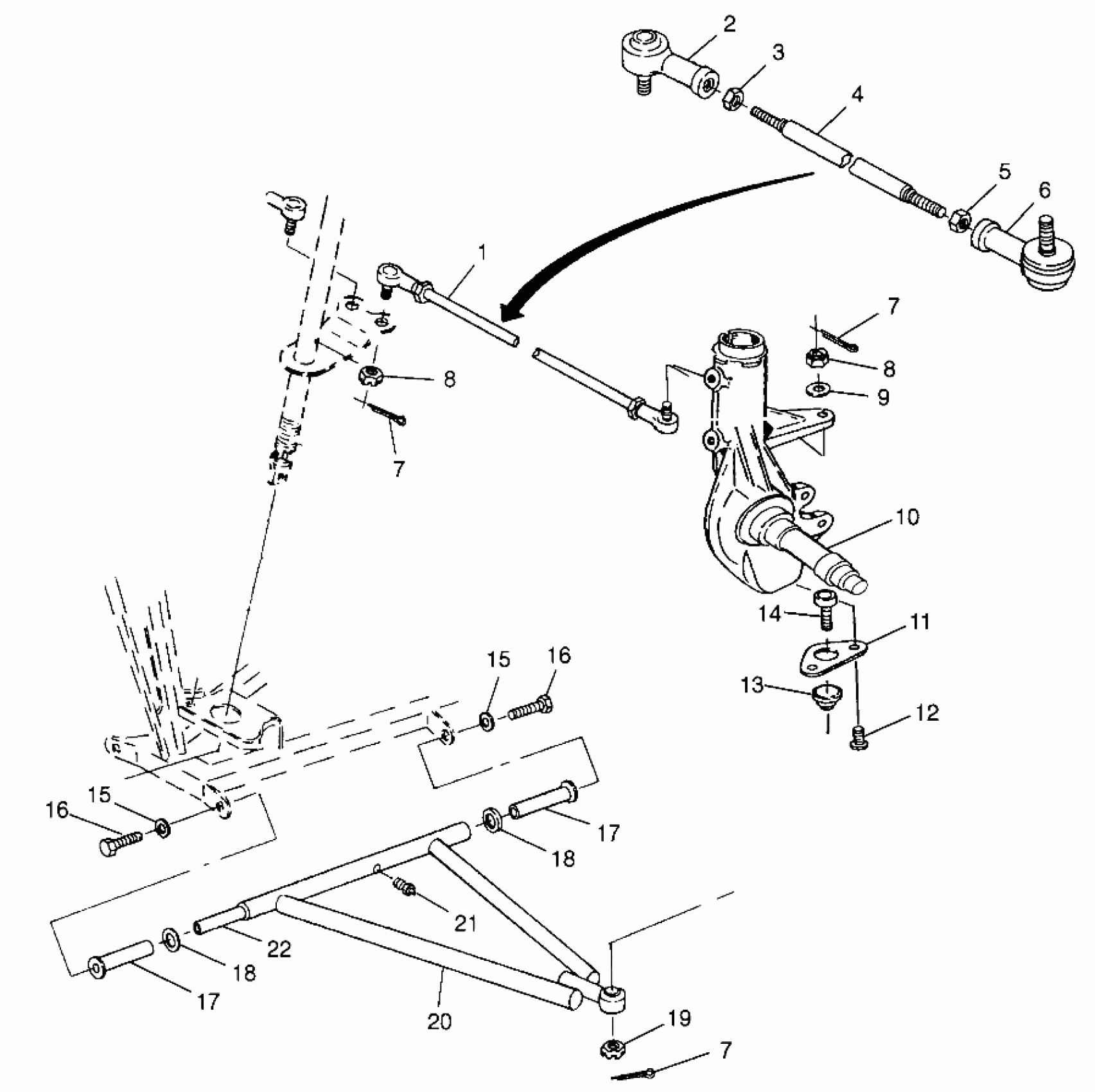

Polaris TRAIL BOSS - W97AA25C STEERING/A-ARM Trail Boss W97AA25C (4940574057B004) Diagram

#

Description
Price

1

TIEROD ASM,RELUBE (Incl. 2-6)

1822307

Unavailable

2

ROD,END,RH,10 MM.

7060172

$56.65

3

NUT, RH, 10 MM.(10)

7546901

$2.39

4

TIE ROD

5020478

$48.56

5

NUT, LH, 10 MM.(10)

7546902

Unavailable

6

ROD END,LH,W/FTG,10 MM.

7060171

$55.99

7

PIN COTTER(10)

7661203

$1.49

7

PIN COTTER(10)

7661203

$1.49

7

PIN COTTER(10)

7661203

$1.49

8

NUT, CASTLE(10)

7546904

$4.79

8

NUT, CASTLE(10)

7546904

$4.79

9

WASHER(10)

7555806

$1.49

10

Support, Strut & Spindle (See Pg. A19, Ref. 16)

-------

Unavailable

11

BRACKET-BALL JOINT

5211121

$31.99

12

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

13

Boot, Rubber

5410548

Unavailable

14

BALLJOINT,HI-ANGLE Substituted by 7080927

7080673

$76.89

15

WASHER(10)

7552603

$1.49

15

WASHER(10)

7552603

$1.49

16

BOLT(10) Substituted by 7512492

7515458

Unavailable

16

BOLT(10) Substituted by 7512492

7515458

Unavailable

17

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

17

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

18

BUSHING,A-ARM SPACER(10)

5020677

$10.39

18

BUSHING,A-ARM SPACER(10)

5020677

$10.39

19

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

20

KIT,A-FRAME,LH (Incl. 7, 20, 21, 18-15)

2200477

Unavailable

20

KIT,A-FRAME,RH (Incl. 7, 20, 21, 18-15)

2200478

Unavailable

21

ZERK,FITTING,THREADED(10)

7080433

$1.49

22

SHAFT, A-ARM,(2X4)

5020680

Unavailable
