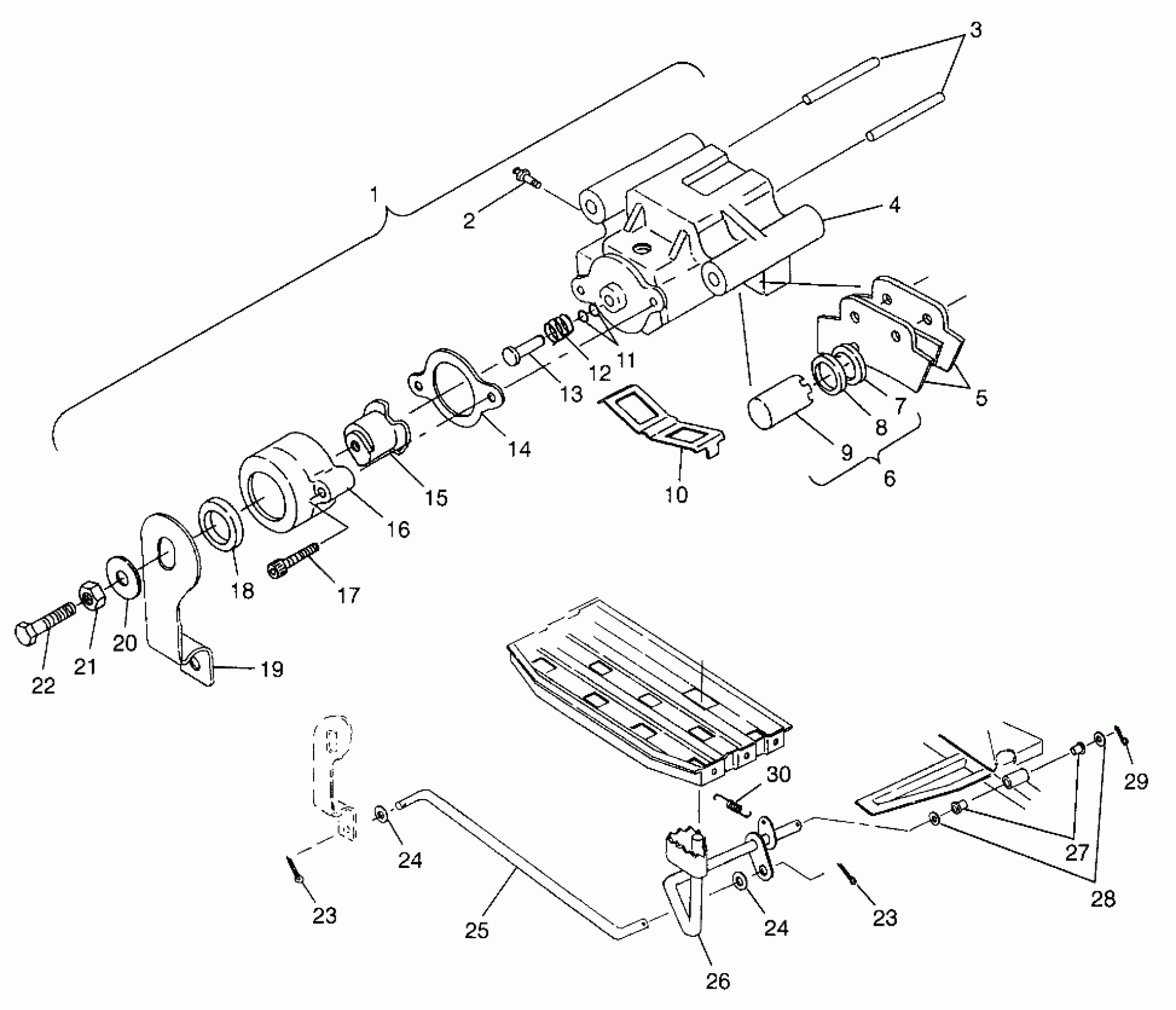

Polaris TRAIL BOSS - W97AA25C REAR BRAKE Trail Boss W97AA25C (4940574057B014) Diagram

#

Description
Price

1

CALIPER ASM,R.BRAKE (Incl. 3-22)

1910224

Unavailable

2

SCREW,BLEEDER

7080352

$3.19

3

PIN, DOWEL(10)

7661820

$13.99

4

CALIPER,R.BRAKE,MACH

5131272

Unavailable

5

KIT,R.BRAKEPAD,HVY.DUTY (Complete set of 2 pads)

2200899

Unavailable

6

KIT-PISTON & SEAL (Incl. 7-9)

2200463

$87.99

7

SQUARE RING-MOLDED (.134) (.134 Sq.)

5410766

$11.99

8

RING, SQUARE,(1''DIAM.) Substituted by 2200463 (.099 Sq.)

5410767

Unavailable

9

PISTON,BRAKE Substituted by 2200463

5020667

$84.93

10

SPRING,ANTI-RATTLE

5240993

Unavailable

11

O RING-.364X.504X.07

5410542

Unavailable

12

SPRING,BRAKE,COMP.

7041219

$24.99

13

PIN,BRAKE CALIPER

5020666

Unavailable

14

GASKET, BRAKE

5830009

$9.99

15

RAMP,MOVE.BRAKE(D/C)

5630651

Unavailable

16

RAMP, STAT.BRAKE Substituted by 2200905

5630457

Unavailable

17

SCREW(10)

7512173

Unavailable

18

SEAL, BRAKE

3610026

$7.99

19

ARM,BRAKE CALIPER

5240624

Unavailable

20

WASHER, SPRING(10)

7555828

Unavailable

21

NUT(10)

7542129

$4.79

22

BOLT

7515145

Unavailable

23

PIN COTTER(10)

7661203

$1.49

23

PIN COTTER(10)

7661203

$1.49

24

WASHER(10)

7555806

$1.49

24

WASHER(10)

7555806

$1.49

25

ROD, BRAKE

5224531

$51.99

26

FOOTBRAKE,BLK.

1910144-067

Unavailable

27

BUSHING-PEDAL PIVOT

5431107

$8.79

28

WASHER(10)

7555919

$4.99

29

COTTER PIN(10)

7661401

$1.49

30

SPRING-EXHAUST(10)

7042029

$4.84
