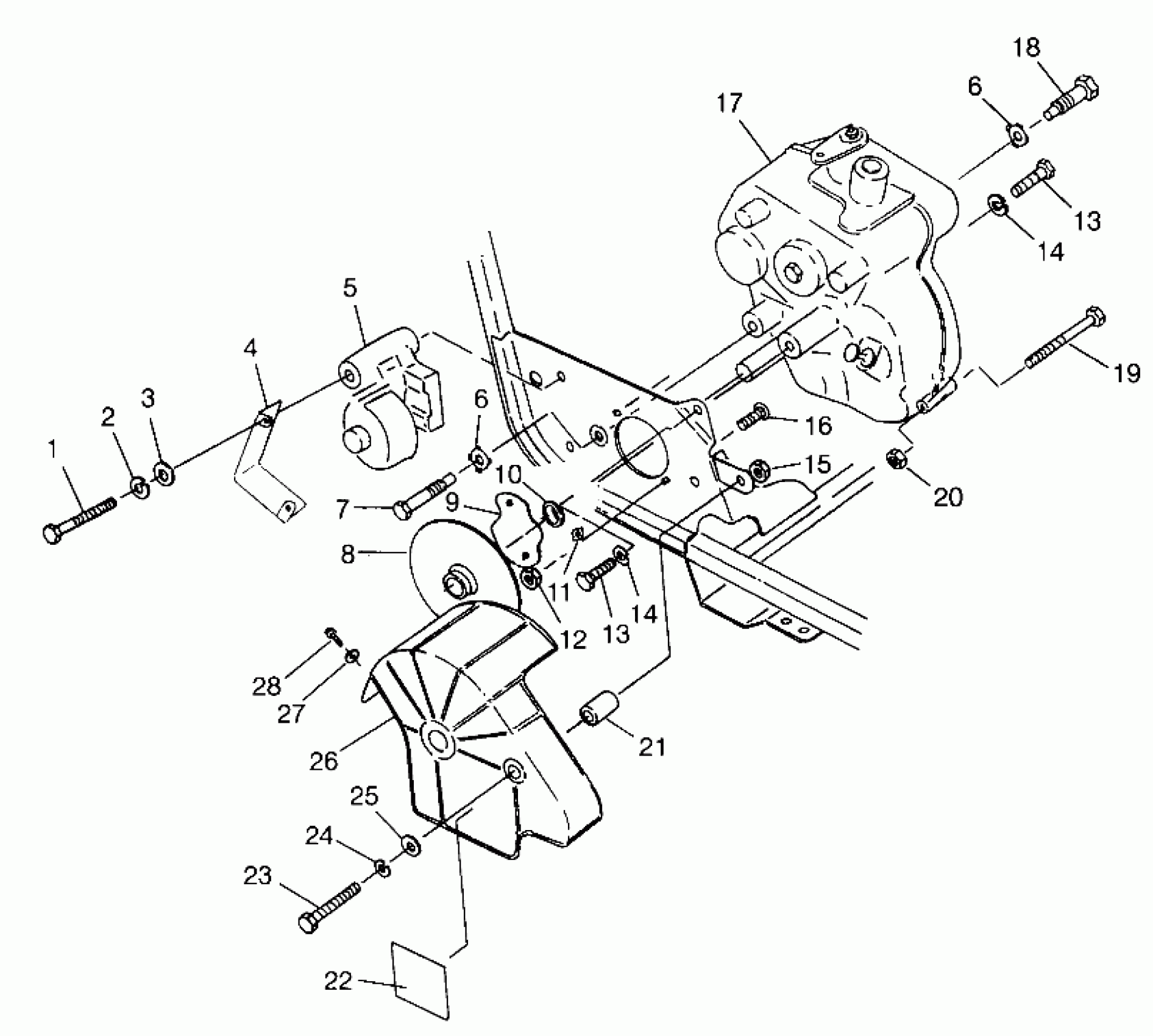

Polaris TRAIL BOSS - W97AA25C GEARCASE/BRAKE MOUNTING Trail Boss W97AA25C (4940574057B013) Diagram

#

Description
Price

1

BOLT(10)

7515345

$5.56

2

LOCK WASHER(10)

7552901

$1.19

3

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

4

SHIELD,R.CALIPER,BLK.

5241018-067

Unavailable

5

Asm., Brake Caliper, Rear (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable

6

PLATE,BOLT LOCK

5220958

$36.41

6

PLATE,BOLT LOCK

5220958

$36.41

7

BOLT, SHOULDER

7512702

Unavailable

8

DISC ASM,BRAKE

1910177

Unavailable

9

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

9

BRG.ASM,O/P SHAFT

1590237

$84.99

10

SEAL, BRAKE

3610026

Unavailable

11

SHIM,(.030)

5211517

$34.99

12

NUT,FLANGE LOCK(10)

7542449

$3.97

13

BOLT(10)

7515522

$3.97

13

BOLT(10)

7515522

$3.97

14

WASHER(10)

7552603

$0.79

14

WASHER(10)

7552603

$0.79

15

NUT, (SPECIAL)(10)

7542330

$5.40

16

BOLT,CARRIAGE(10)

7515484

Unavailable

17

Asm., Gearcase (See Pg. NO TAG for Details)

----

Unavailable

18

BOLT, SHOULDER (LH Side)

7512701

$23.81

19

BOLT(10)

7515472

$2.38

20

NUT LOCK(10)

7542403

Unavailable

21

SPACER,BRAKE DISC GUARD

5333255

$5.00

22

DECAL,BRAKE SHIELD

7075339

Unavailable

23

BOLT(10) Substituted by 7515339

7515328

$4.76

24

WASHER(10)

7552606

$4.76

25

WASHER(10) Substituted by 7558402

7555770

$0.99

26

GUARD, BRAKE DISC

5431766

Unavailable

27

WASHER(10) Substituted by 7558301

7555776

$1.19

28

SCREW(10)

7512252

Unavailable
