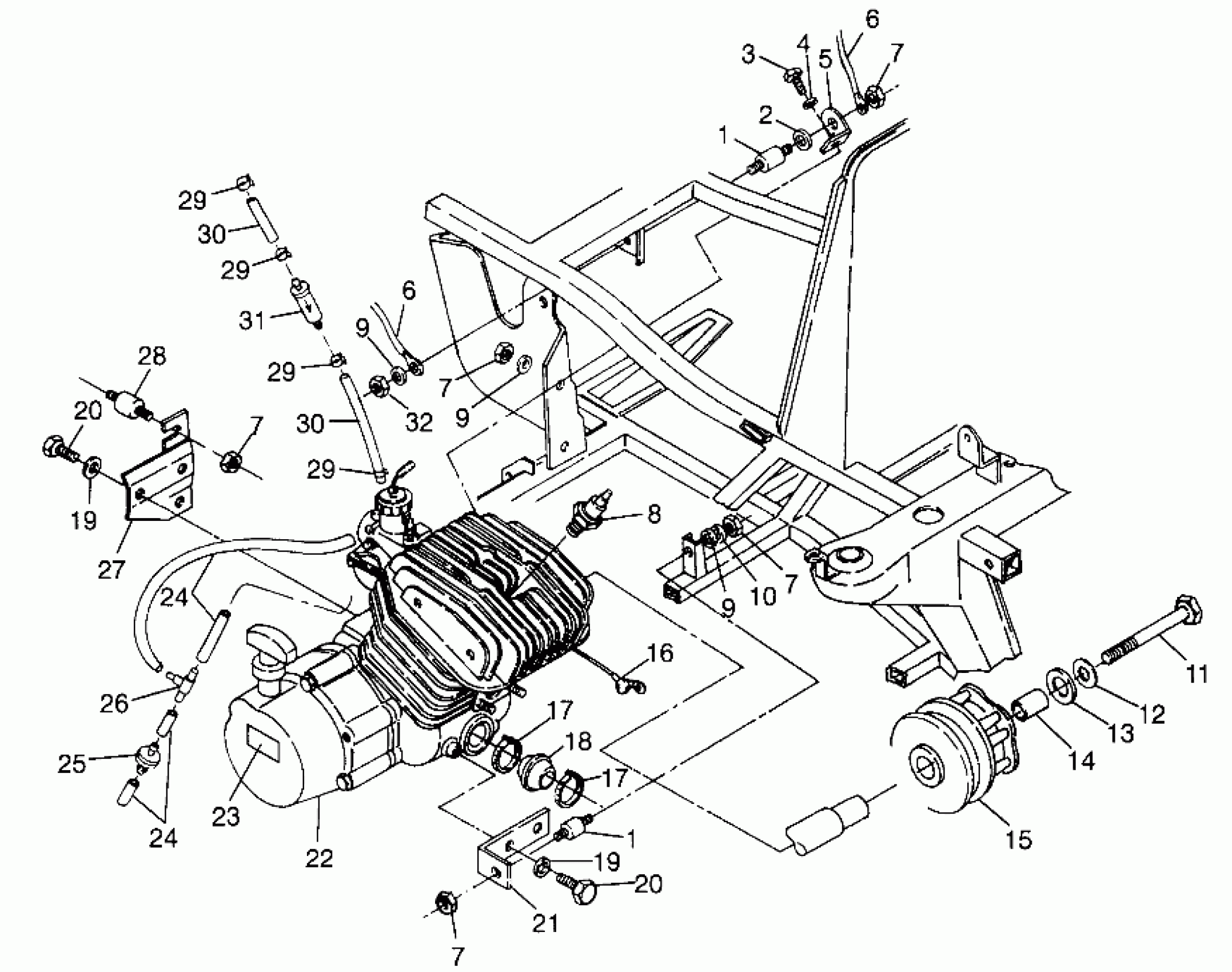

Polaris TRAIL BOSS - W97AA25C ENGINE MOUNTING Trail Boss W97AA25C (4940574057A009) Diagram

#

Description
Price

1

MOUNT,MOTOR

3110026

$40.46

1

MOUNT,MOTOR

3110026

$40.46

2

INSULATOR,MOTOR MT.

5430802

$28.32

3

BOLT(10)

7515321

Unavailable

4

LOCK WASHER(10)

7552901

$1.19

5

MT,ENG.TOP,250,BLK

5242073-067

$3.33

6

CABLE,GND-ENGINE

4010132

Unavailable

6

CABLE,GND-ENGINE

4010132

Unavailable

7

NUT LOCK(10)

7542403

Unavailable

7

NUT LOCK(10)

7542403

Unavailable

7

NUT LOCK(10)

7542403

Unavailable

7

NUT LOCK(10)

7542403

Unavailable

7

NUT LOCK(10)

7542403

Unavailable

8

SPARKPLUG (10)

3070156

$3.97

9

WASHER(10)

7555801

$3.97

9

WASHER(10)

7555801

$3.97

9

WASHER(10)

7555801

$3.97

10

WASHER(10)

7555806

$0.79

11

BOLT(10)

7512566

$33.24

12

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

13

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

14

BUSHING-.437 X.770 X.50

5430261

$7.14

15

Asm., Drive Clutch (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable

16

INSULATOR-CABLE

5410346

$7.73

17

CLAMP, NARROW BAND(10)

7080511

$4.76

17

CLAMP, NARROW BAND(10)

7080511

$4.76

18

BOOT,CLUTCH INTAKE

5410421

$11.32

19

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

19

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

20

SCREW(10)

7512490

$3.97

20

SCREW(10)

7512490

$3.97

21

PLATE,FR.MTR.MT.

5220881-067

Unavailable

22

ENG.(S.B.)EC25PF-SB [No Longer Available] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization req

3084717

Unavailable

23

DECAL,DRAIN RECOIL Substituted by 7078577

7075741

Unavailable

24

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

24

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

25

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

26

Fitting, Tee

7052005

Unavailable

27

MT,REAR,(300),BLK.

5241176-067

Unavailable

28

MOUNT, MOTOR

3110028

Unavailable

29

CLAMP-HOSE,(10)

7080236

$1.59

29

CLAMP-HOSE,(10)

7080236

$1.59

29

CLAMP-HOSE,(10)

7080236

$1.59

29

CLAMP-HOSE,(10)

7080236

$1.59

30

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

30

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

31

FILTER,SMALL,IN-LINE,(10)

2530009

$6.46

32

NUT LOCK(10)

7542411

$3.17
