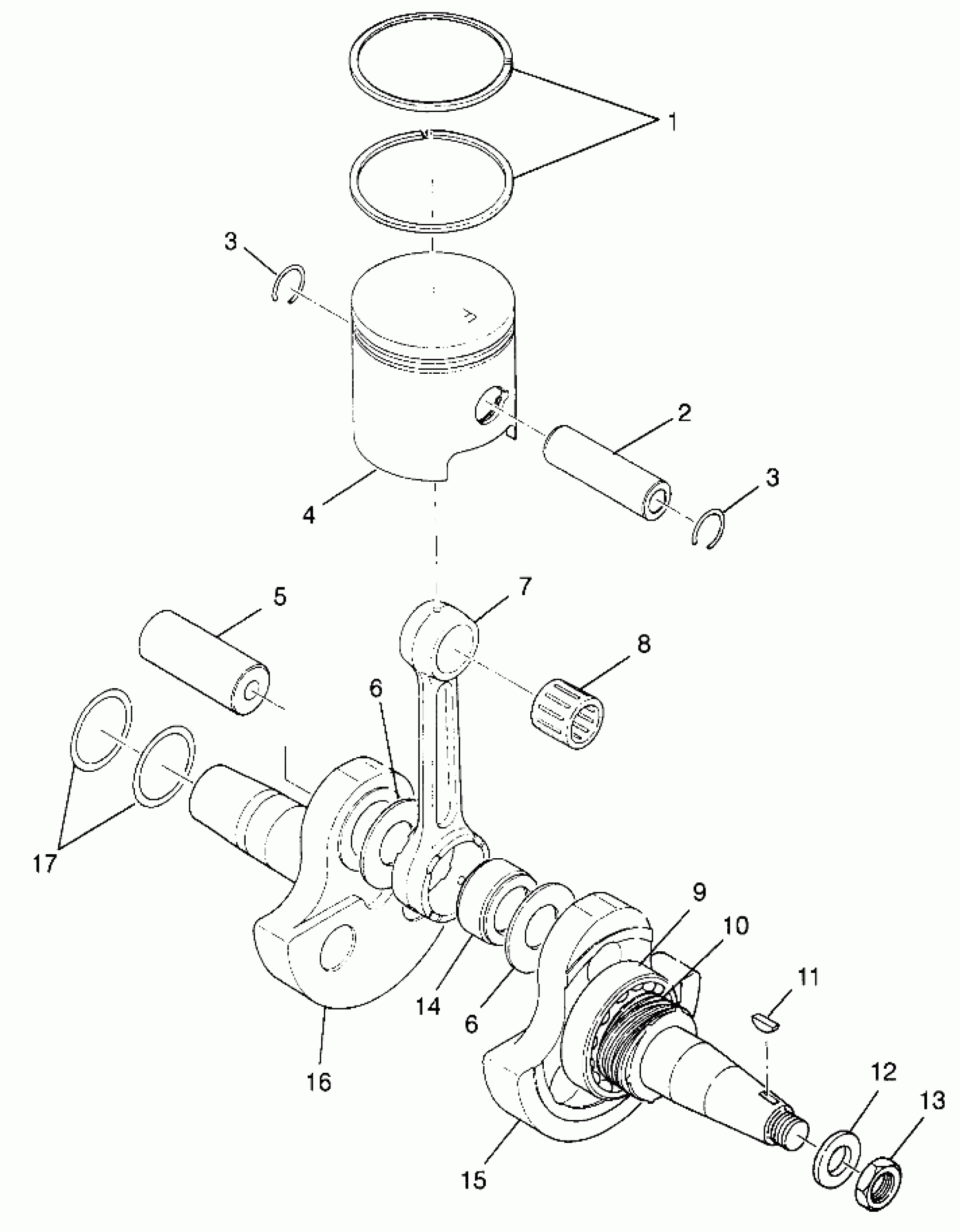

Polaris TRAIL BOSS - W97AA25C CRANKSHAFT and PISTON Trail Boss W97AA25C (4940574057C008) Diagram

#

Description
Price

-

RING,.020 O/S

3083717

$28.56

-

RING,PISTON(O/S,1.0MM)

3083974

$31.99

1

RING, PISTON

3083546

Unavailable

1

RING,.010 O/S

3083678

Unavailable

2

Pin, Piston

3083838

$27.99

3

CLIP,PISTON PIN,(10)

3083839

$4.75

3

CLIP,PISTON PIN,(10)

3083839

$4.75

4

SET,PISTON,.040"/1.00MM O/S* (1.00mm/.040" O/S)

3083972

Unavailable

4

PISTON *

3083942

Unavailable

4

PISTON,.020 O/S

3083944

Unavailable

4

PISTON,.010 O/S

3083943

Unavailable

5

CRANK PIN PTO

3082796

$36.41

6

Spacer

3083804

$19.99

6

Spacer

3083804

$19.99

7

ROD CONNECTING

3082790

Unavailable

8

BEARING, SMALL END

3083626

Unavailable

9

Bearing, Ball

3084580

$31.99

10

GEAR,CRANKSHAFT (O/I)

3083745

Unavailable

11

KEY Substituted by 3081543

3080130

Unavailable

12

WASHER Substituted by 3086767

3083904

Unavailable

13

LOCKNUT

3083905

Unavailable

14

BEARING,LGE.END

3083803

Unavailable

15

CRANKSHAFT #1

3083899

$329.99

15

CRANKSHAFT ASM. (Incl. 5-7, 9, 10, 14-16)

3084582

Unavailable

16

CRANKSHAFT,#2

3083802

Unavailable

17

SPACER #1 (0.2mm)

3083629

Unavailable

17

SPACER #3 (0.1mm)

3083630

Unavailable
