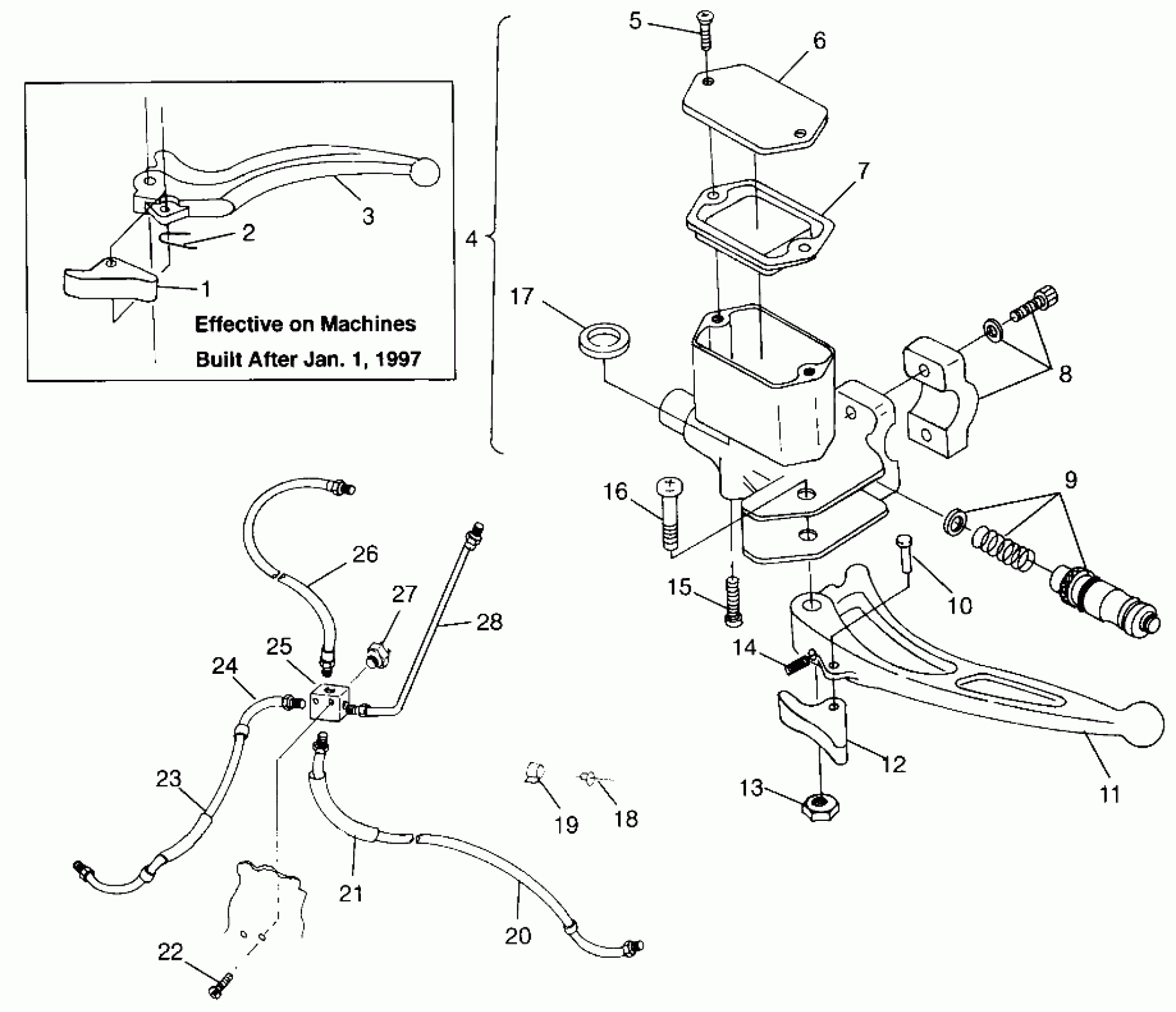

Polaris TRAIL BOSS - W97AA25C CONTROLS - MASTER CYLINDER/BRAKE LINE Trail Boss W97AA25C (4940574057B002) Diagram

#

Description
Price

1

KIT,LEVER,PARKBRAKE (Incl. 2, 10)

2201090

$40.46

2

SPRING, FLAT

-------

Unavailable

3

KIT,LEVER (Incl. 1, 2, 3, 10)

2201034

$63.99

4

KIT,MASTER CYL RES. (Incl. 5-6, 17)

2200809

Unavailable

4

MASTER CYLINDER (Incl. 5-17)

2050073

$243.99

5

KIT,BOLT(2),RES.CAP,MCYL

1930797

$11.19

6

CAP,M.CYL.RES.

1930796

Unavailable

7

DIAPHRAGM,M.CYL.RES.

1930795

$44.51

8

KIT,M.CYL.CLAMP

2200808

Unavailable

9

KIT,M.CYL.REBUILD Substituted by 1930799

2200810

$89.03

10

Rivet

1930804

Unavailable

11

KIT,M.CYL LEVER Substituted by 2201034 (Incl. 6, 12, 14)

2200811

$61.77

12

LEVER,PARKBRAKE Substituted by 2201034

1930802

$61.77

13

NUT,M.CYL.HANDLE PIVOT

1930806

Unavailable

14

SPRING,PARKING BRAKE Substituted by 2201034

1930803

$61.77

15

BOLT,MCYL.RESERVOIR,KIT

1930792

$23.99

16

BOLT,M.CYL.HANDLE PIVOT

1930805

Unavailable

17

Ring, Square, Master Cylinder Reservoir

-------

Unavailable

18

RIVET(50)

7621462

$1.49

19

CLAMP,NYLON,CABLE(10)

7080539

$4.79

20

LINE,BRAKE,LH,FR,W/FITTINGS

1930752

$87.99

21

CONDUIT, 30 CM. Substituted by 8360011-34

8360031-30

Unavailable

22

SCREW,(10)

7512024

$4.79

23

CONDUIT, 38 CM.

8360031-38

$2.63

24

LINE,BRAKE,RH,FR.W/FITTINGS

1930753

$87.99

25

FITTING,CROSS INVERT.FLARE

7052103

Unavailable

26

LINE,BRAKE,UP./FTGS.

1930748

$87.99

27

SWITCH,STOPLIGHT

4110164

Unavailable

28

LINE,BRAKE,REAR

1930751

Unavailable
