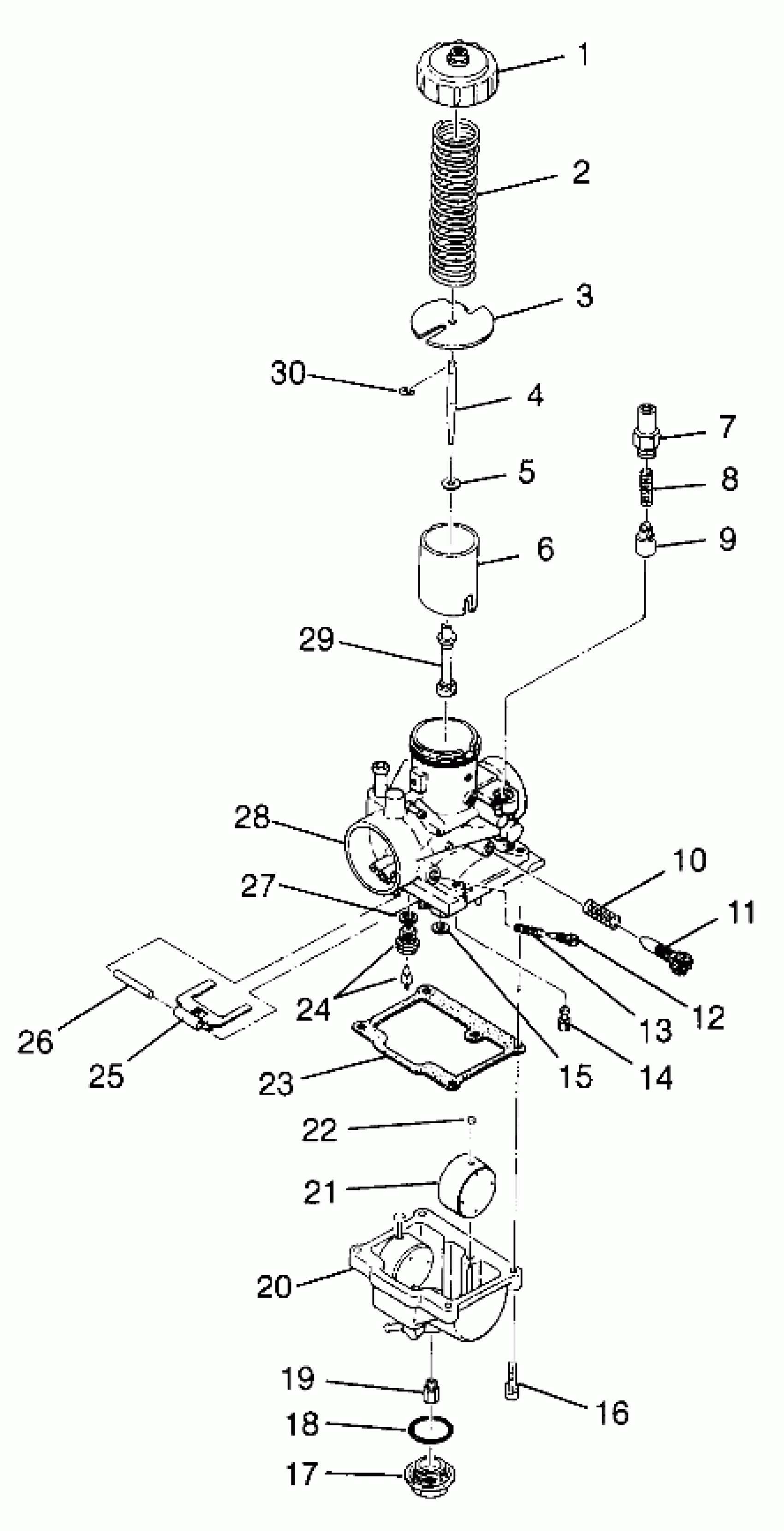

Polaris TRAIL BOSS - W97AA25C CARBURETOR Trail Boss W97AA25C (4940574057C013) Diagram

#

Description
Price

1

TOP,MIX CHAMBER

3130060

Unavailable

2

SPRING,THROTTLE

3130354

$28.32

3

PLATE,THROTTLE

3130002

$20.22

4

JET NEEDLE Substituted by 3130155 (5DP7-2)

3130356

$24.27

5

Washer

3130355

$7.19

6

VALVE,THROTTLE,(2.0) (2.0)

3130420

Unavailable

7

Cap, Plunger

3130359

$14.56

8

SPRING,PLUNGER

3130006

$8.89

9

PLUNGER ASM, STARTER

3130328

$32.37

10

SPRING,THROTTLE ADJ.

3130010

$8.89

11

Screw, Throttle Stop

3130324

$19.84

12

SCREW,AIR

3130011

$19.99

13

SPRING,AIR ADJUST

3130012

$8.89

14

JET,PILOT,#40(10) (#40)

3130067

$10.99

15

WASHER (10)

3130014

$1.59

16

SCREW & WASHER(10)

3130025

$3.19

17

BOLT,BANJO

3130321

$23.99

18

O RING

3130239

Unavailable

19

JET, MAIN, #145 Substituted by 3130112 (#145)

3130351

Unavailable

20

BOWL,FLOAT,(250)

3130441

$99.99

21

FLOAT ASM

3130021

$40.46

22

CAP,(10)

3130237

$4.03

23

PACKING,FLOAT CHAMBER

3130020

$16.17

24

VALVE, NEEDLE (2.5)

3130360

$43.99

25

ARM,FLOAT

3130018

$24.27

26

PIN, FLOAT

3130361

$8.89

27

PACKING(10)

3130017

$4.03

28

CARBURETOR (Incl. 1-30)

3130424

Unavailable

29

JET,NEEDLE(0-4),169 (0-4)

3130409

$39.99

30

E RING(10) Substituted by 3130508

3130003

Unavailable
