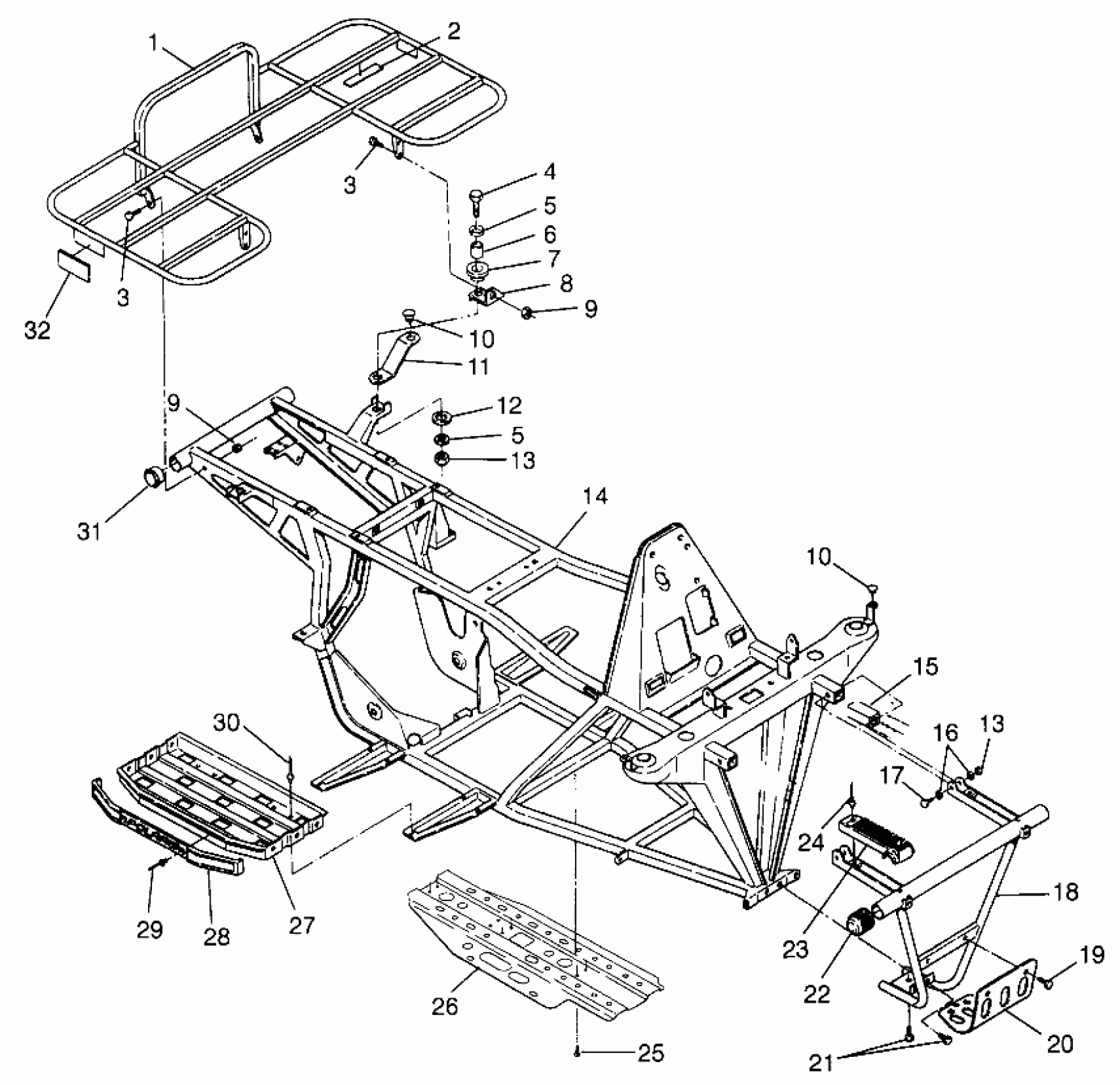

Polaris TRAIL BOSS - W97AA25C BUMPER and RACK MOUNTING Trail Boss W97AA25C (4940574057A007) Diagram

#

Description
Price

1

RACK,REAR,BLK.

2670136-067

Unavailable

2

PAD,RACK MOUNT

5810455

$3.19

3

BOLT, BLACK(10)

7512282

$1.49

3

BOLT, BLACK(10)

7512282

$1.49

4

SCREW-FLANGED(10)

7515304

$5.59

5

WASHER(10)

7555716

$1.59

5

WASHER(10)

7555716

$1.59

6

BUSHING-RES. MT.

5010192

$6.39

7

DAMPENER

5410241

Unavailable

8

BRKT,LH SUPPORT RACK Substituted by 5243468-067

5220899-067

Unavailable

8

BRKT,RH SUPPORT RACK Substituted by 5243469-067

5220901-067

Unavailable

9

NUT-LOCK(10)

7542122

$1.49

9

NUT-LOCK(10)

7542122

$1.49

10

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

10

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

11

SUPPORT,R.FENDER

5220902-067

$48.40

12

WASHER,RUBBER

5410436

$1.59

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

14

FRAME,MAIN,T.B.,BLK

1040592-067

Unavailable

15

PLUG, FRAME

5810467

Unavailable

16

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

17

BOLT(10)

7512329

$3.99

18

BUMPER,FRT,(BLACK)

2670106-067

Unavailable

19

SCREW(10)

7512208

$3.99

20

SKID-PLATE,FR.BUMPER

5220981

Unavailable

21

SCREW(10)

7512399

$5.59

22

CAP,BUMPER,FR,AQUA. (Aqua Marine)

5431013-179

$12.39

23

COVER,BRKT,BUMPER MT.

5431023

$10.71

24

RIVET(50)

7621229

Unavailable

25

BOLT(10)

7512232

$1.49

26

GUARD,ROCK,BLK.

5240560-067

$87.99

27

FOOTPAD,LH,BLK.

1040274-067

$81.75

27

FOOTPAD,RH,BLK.

1040417-067

Unavailable

28

Trim, Footrest

5431484

Unavailable

29

RIVET,(50)

7661825

$1.49

30

RIVET,INTERLOCK,B(50)

7661638

$1.49

31

PLUG,ENDCAP(10)

5432047

$4.95

32

REFLECTOR ASM,RED

2670133

$5.75
