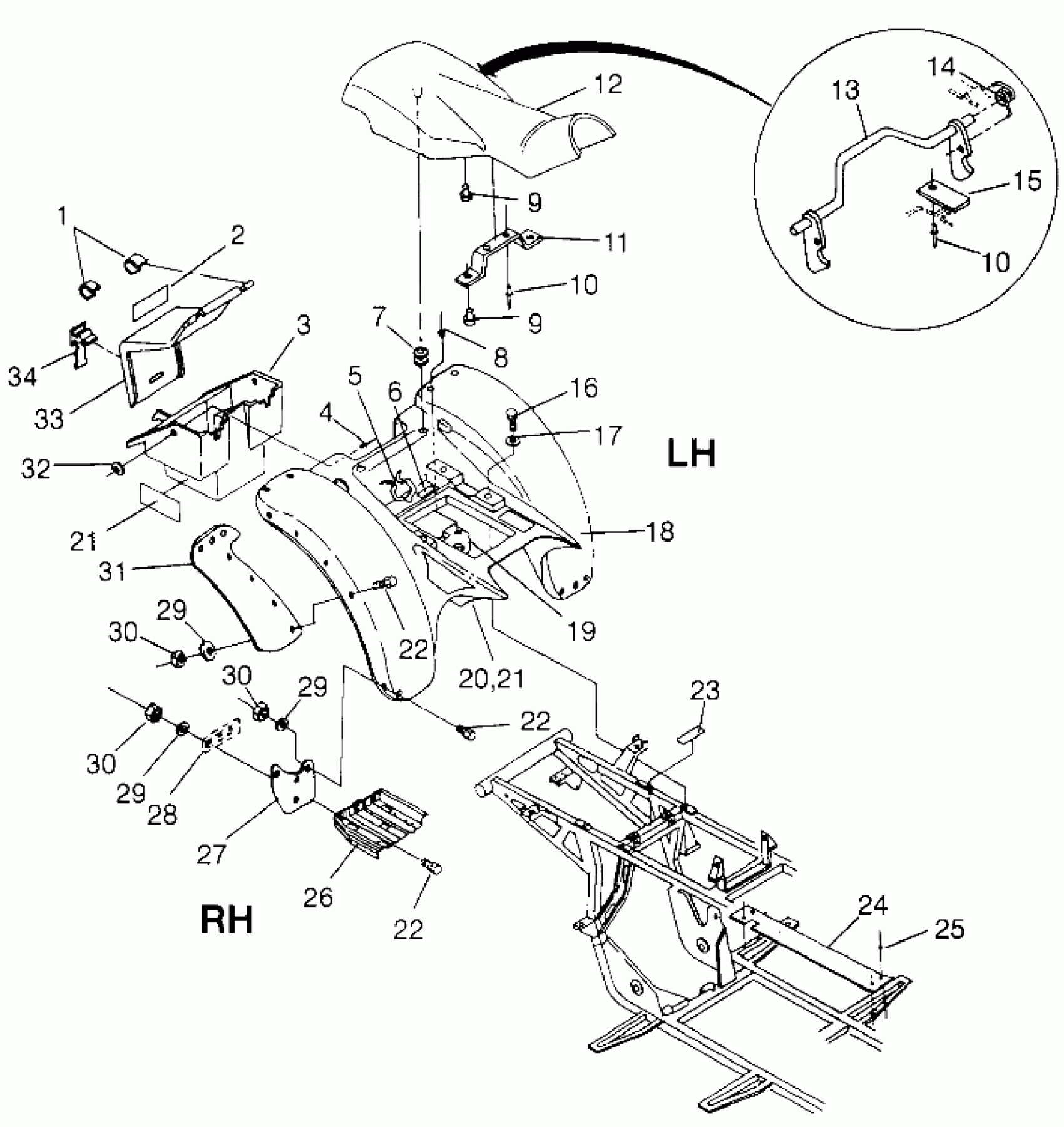

Polaris TRAIL BOSS - W968527 REAR CAB Trail Boss W968527 (4935883588A006) Diagram

#

Description
Price

1

CLIP, LID HINGE(10)

7670050

Unavailable

2

DECAL(CPSC),PASS.WRN. [No Longer Available]

7072805

Unavailable

3

BOX,TOOL COMP.

5430882

Unavailable

4

RIVET(50)

7621462

$1.19

5

RETAINER,TOOL POUCH

7080385

Unavailable

6

DECAL,CARB.INFO.

7073761

Unavailable

7

Grommet

5411042

$6.35

8

RIVET,3/16X.402(50)

7621432

$1.19

9

Bumper, Rubber

5410414

$3.17

9

Bumper, Rubber

5410414

$3.17

10

BLIND RIVET(50)

7621403

$1.19

10

BLIND RIVET(50)

7621403

$1.19

11

BRKT,SUPPORT SEAT BASE

5222837-067

Unavailable

12

COVER,SEAT,AQUA MARINE Substituted by 2681653

2681723-179

Unavailable

12

SEAT ASM,(ATV),AQUA MARINE Substituted by 2682203-179 (Incl. 9-15)

2681724-179

Unavailable

13

LATCH,SEAT

1011558

Unavailable

14

SPRING, LATCH

7041158

Unavailable

15

BRACKET,LEVER RETAINER

5211033

$34.99

16

BOLT(10)

7512232

$1.19

17

WASHER,WROUGHT(10)

7558302

$1.59

18

CAB,REAR,WHITE

5430991-133

Unavailable

19

BRKT,R.HOLDDOWN

5220880

Unavailable

20

TAPE,FOIL,R.CAB (Inside)

5810416

Unavailable

20

TAPE, FOIL

5810424

Unavailable

21

TAPE, FOIL

5810310

Unavailable

21

TAPE, FOIL

5810310

Unavailable

22

BOLT, BLACK(10)

7512282

Unavailable

22

BOLT, BLACK(10)

7512282

Unavailable

22

BOLT, BLACK(10)

7512282

Unavailable

23

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

24

GUARD,CLUTCH,OUTER

5222860-067

$7.06

25

RIVET,INTERLOCK,B(50)

7661638

$1.19

26

Weld., Foot Pad (See Pg., Ref.)

----

Unavailable

27

MUDFLAP,LH,LOW,REAR

5850076

Unavailable

27

MUDFLAP,RH,LOW.REAR

5850111

Unavailable

28

BRKT, LH MUD FLAP

5211131-067

Unavailable

29

WASHER, FLAT(10)

7555859

$1.19

29

WASHER, FLAT(10)

7555859

$1.19

29

WASHER, FLAT(10)

7555859

$1.19

30

NUT-LOCK(10)

7542122

$1.19

30

NUT-LOCK(10)

7542122

$1.19

30

NUT-LOCK(10)

7542122

$1.19

31

FLAP,MUD,LH REAR

5850060

Unavailable

31

FLAP,MUD,RH REAR

5850061

Unavailable

32

WASHER,13/64X1/2X18GA,FL-Y

7558212

$0.79

33

LID,TOOLBOX,(WHITE)

5430769-133

Unavailable

34

STRAP,TOOL COMPARTMENT

5410425

Unavailable
