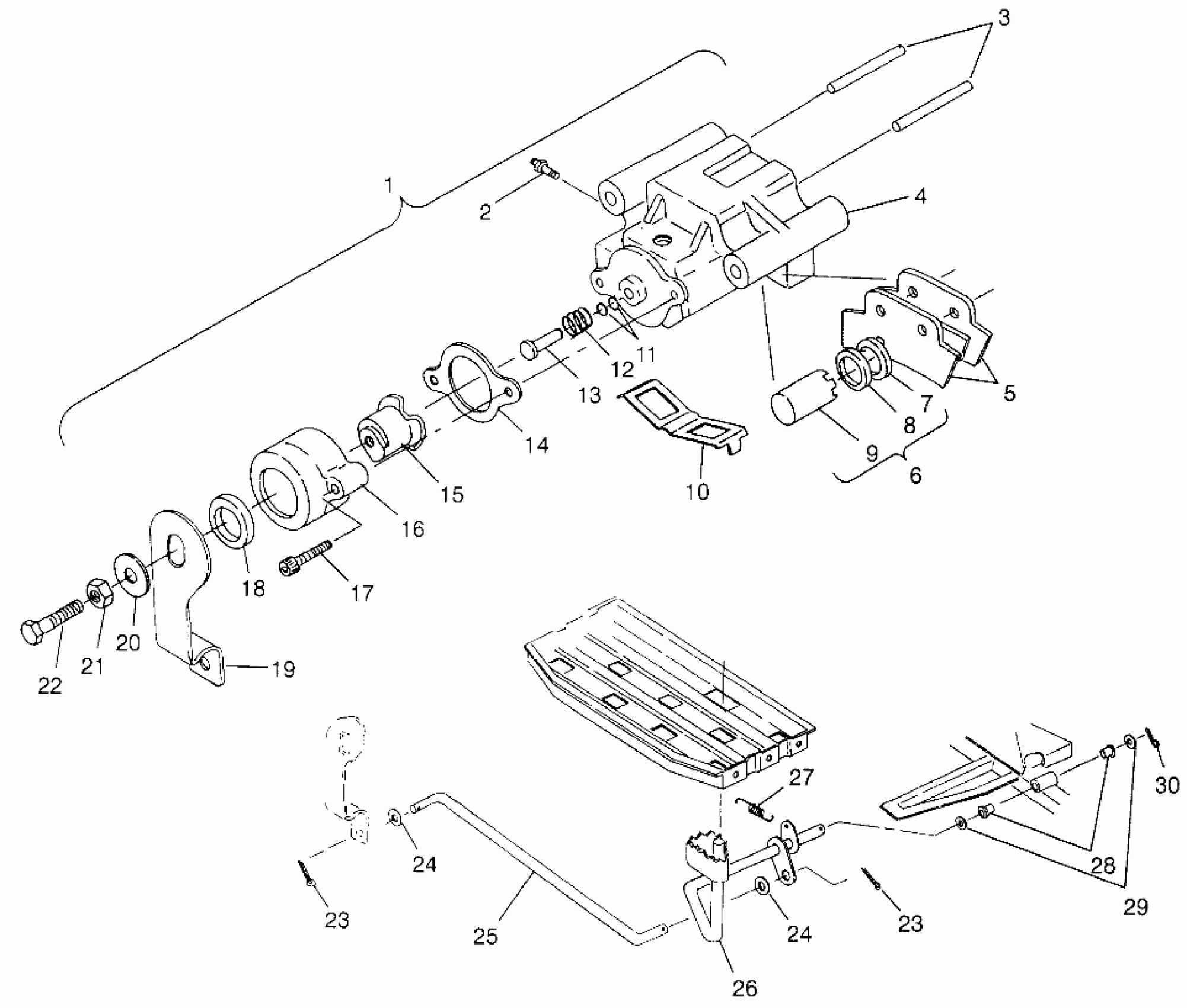

Polaris TRAIL BOSS - W968527 REAR BRAKE Trail Boss W968527 (4935883588B014) Diagram

#

Description
Price

1

CALIPER ASM,R.BRAKE Substituted by 1910224 (Incl. 3-22)

1910180

Unavailable

2

SCREW,BLEEDER

7080352

$3.17

3

PIN, DOWEL(10)

7661820

$13.99

4

CALIPER,R.BRAKE,MACH

5131272

Unavailable

5

KIT,R.BRAKEPAD,HVY.DUTY (Complete set of 2 pads)

2200899

Unavailable

6

KIT-PISTON & SEAL (Incl. 7 - 9)

2200463

$97.76

7

SQUARE RING-MOLDED (.134) (.134 Sq.)

5410766

$12.13

8

RING, SQUARE,(1''DIAM.) Substituted by 2200463 (.099 Sq.)

5410767

$97.76

9

PISTON,BRAKE Substituted by 2200463

5020667

$97.76

10

SPRING,ANTI-RATTLE

5240993

Unavailable

11

O RING-.364X.504X.07

5410542

$4.84

12

SPRING,BRAKE,COMP.

7041219

Unavailable

13

PIN,BRAKE CALIPER

5020666

Unavailable

14

GASKET, BRAKE

5830009

Unavailable

15

RAMP,MOVEABLE BRAKE Substituted by 2200905

5630458

Unavailable

16

RAMP, STAT.BRAKE Substituted by 2200905

5630457

Unavailable

17

SCREW(10)

7512173

Unavailable

18

SEAL, BRAKE

3610026

Unavailable

19

ARM,BRAKE CALIPER

5240624

Unavailable

20

WASHER, SPRING(10)

7555828

Unavailable

21

NUT(10)

7542129

$4.76

22

BOLT

7515145

Unavailable

23

PIN COTTER(10)

7661203

$1.19

23

PIN COTTER(10)

7661203

$1.19

24

WASHER(10)

7555806

$0.79

24

WASHER(10)

7555806

$0.79

25

ROD, BRAKE

5224531

$51.59

26

FOOTBRAKE,BLK.

1910144-067

Unavailable

27

SPRING-EXHAUST(10)

7042029

$5.65

28

BUSHING-PEDAL PIVOT

5431107

$8.73

29

WASHER(10)

7555919

$4.99

30

COTTER PIN(10)

7661401

$0.79
