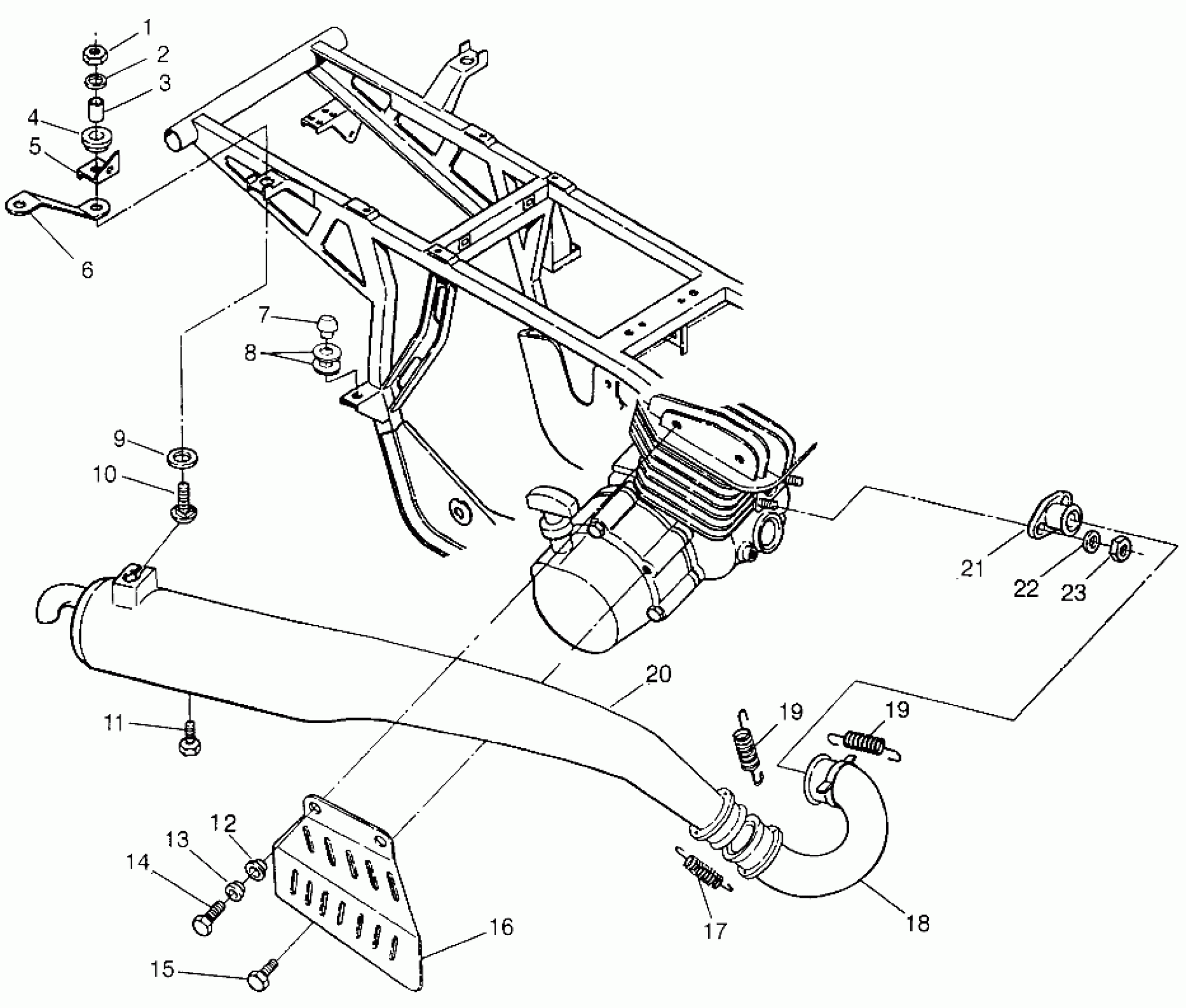

Polaris TRAIL BOSS - W968527 EXHAUST Trail Boss W968527 (4935883588A010) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

2

WASHER(10)

7555716

$1.59

3

BUSHING-RES. MT.

5010192

$6.39

4

DAMPENER

5410241

Unavailable

5

BRKT,LH SUPPORT RACK Substituted by 5243468-067

5220899-067

Unavailable

5

BRKT,RH SUPPORT RACK Substituted by 5243469-067

5220901-067

Unavailable

6

SUPPORT, REAR FENDER (See Pg. A7, Ref. 11)

-------

Unavailable

7

DAMPNER, VIB.

5410467

$8.79

8

WASHER(10)

7555726

$1.59

9

WASHER,RUBBER

5410436

$1.59

10

BOLT(10)

7515316

$2.39

11

BOLT(10)

7512666

$2.39

12

MOUNT, RUBBER (SEE PG. C7, REF. 6)

-------

Unavailable

13

COLLAR (See Pg. C7, Ref. 7)

-------

Unavailable

14

ASM., BOLT AND WASHER (See Pg. C7, Ref.5)

-------

Unavailable

15

ASM., BOLT AND WASHER (See Pg. C11, Ref. 14)

-------

Unavailable

16

SHIELD,MUFFLER,BLK.

5220671-067

Unavailable

17

SPRING, EXHAUST(10)

7042031

$5.65

18

HEADPIPE WELD.

1260540-029

Unavailable

19

SPRING-EXHAUST(10)

7042029

$4.84

19

SPRING-EXHAUST(10)

7042029

$4.84

20

MUFFLER/ARRESTER WELD.

1260535-029

Unavailable

21

MANIFOLD, BLK.

1260543-029

Unavailable

22

WASHER LOCK ,(10)

3080530

$3.19

23

NUT(10)

3080285

Unavailable
