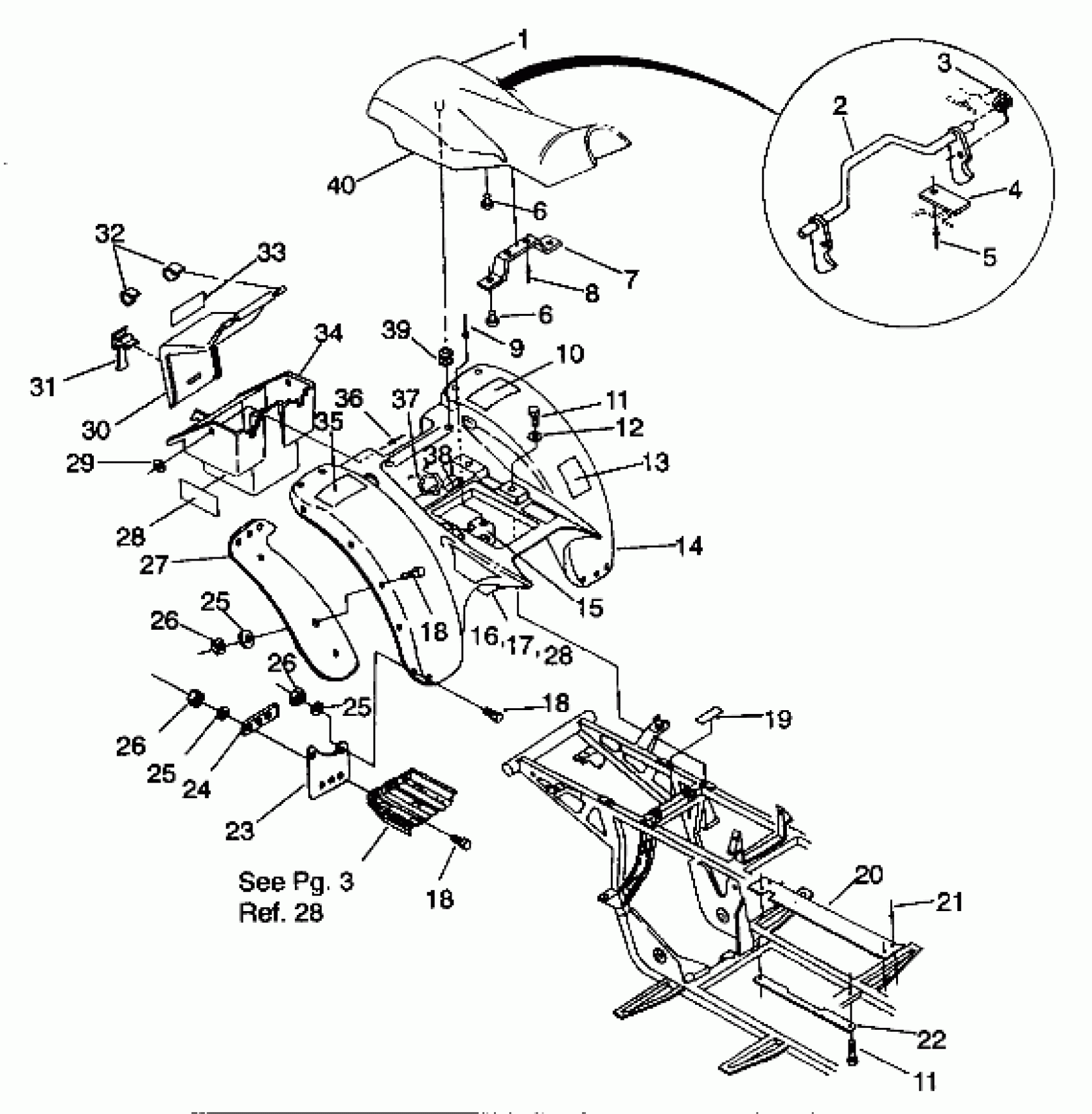

Polaris TRAIL BOSS - W938527 REAR CAB ASSEMBLY Trail Boss W938527 (4924072407002A) Diagram

#

Description
Price

1

SEAT ASM,BON.BLUE(ATV) Substituted by 2682357-157

2681724-157

Unavailable

2

LATCH,SEAT

1011558

Unavailable

3

SPRING, LATCH

7041158

Unavailable

4

BRACKET,LEVER RETAINER

5211033

$34.99

5

BLIND RIVET(50)

7621403

$1.19

6

Bumper, Rubber

5410414

$3.17

6

Bumper, Rubber

5410414

$3.17

7

BRKT,SUPPORT SEAT BASE

5222837-067

Unavailable

8

RIVET

7621481

Unavailable

9

RIVET,3/16X.402(50)

7621432

$1.19

10

DECAL(CPSC),WARN,R.RACK [No Longer Available]

7072788

Unavailable

11

BOLT(10)

7512232

$1.19

11

BOLT(10)

7512232

$1.19

12

WASHER,WROUGHT(10)

7558302

$1.59

13

DECAL,TIRE PRESSURE(T.B.)

7074111

Unavailable

14

CAB,REAR,WHITE

5430991-133

Unavailable

15

BRKT,R.HOLDDOWN

5220880

Unavailable

16

TAPE,FOIL,R.CAB (Inside)

5810416

Unavailable

17

TAPE, FOIL

5810424

Unavailable

18

BOLT, BLACK(10)

7512282

Unavailable

18

BOLT, BLACK(10)

7512282

Unavailable

18

BOLT, BLACK(10)

7512282

Unavailable

19

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

20

GUARD,CLUTCH,OUTER

5222860-067

$7.06

21

RIVET, (MONOBOLT) Substituted by 7661637

7661620

$1.19

22

GUARD,CLUTCH,INNER

5211359-067

Unavailable

23

MUDFLAP,LH,LOW,REAR

5850076

Unavailable

23

MUDFLAP,RH,LOW REAR

5850077

$23.65

24

BRKT, LH MUD FLAP

5211131-067

Unavailable

25

WASHER, FLAT(10)

7555859

$1.19

25

WASHER, FLAT(10)

7555859

$1.19

25

WASHER, FLAT(10)

7555859

$1.19

26

NUT-LOCK(10)

7542122

$1.19

26

NUT-LOCK(10)

7542122

$1.19

26

NUT-LOCK(10)

7542122

$1.19

27

FLAP,MUD,LH REAR

5850060

Unavailable

27

FLAP,MUD,RH REAR

5850061

Unavailable

28

TAPE, FOIL

5810310

Unavailable

28

TAPE, FOIL

5810310

Unavailable

29

WASHER,13/64X1/2X18GA,FL-Y

7558212

$0.79

30

LID,TOOLBOX,(WHITE)

5430769-133

Unavailable

31

STRAP,TOOL COMPARTMENT

5410425

Unavailable

32

CLIP, LID HINGE(10)

7670050

Unavailable

33

DECAL(CPSC),PASS.WRN. [No Longer Available]

7072805

Unavailable

34

BOX,TOOL COMP.

5430882

Unavailable

35

DECAL,WARN,RACK LOAD

7074173

Unavailable

36

RIVET(50)

7621462

$1.19

37

RETAINER,TOOL POUCH

7080385

Unavailable

38

DECAL,CARB.INFO.

7073761

Unavailable

39

GROMMET

5410413

Unavailable

40

COVER,SEAT,BON.BLUE

2681723-157

Unavailable
