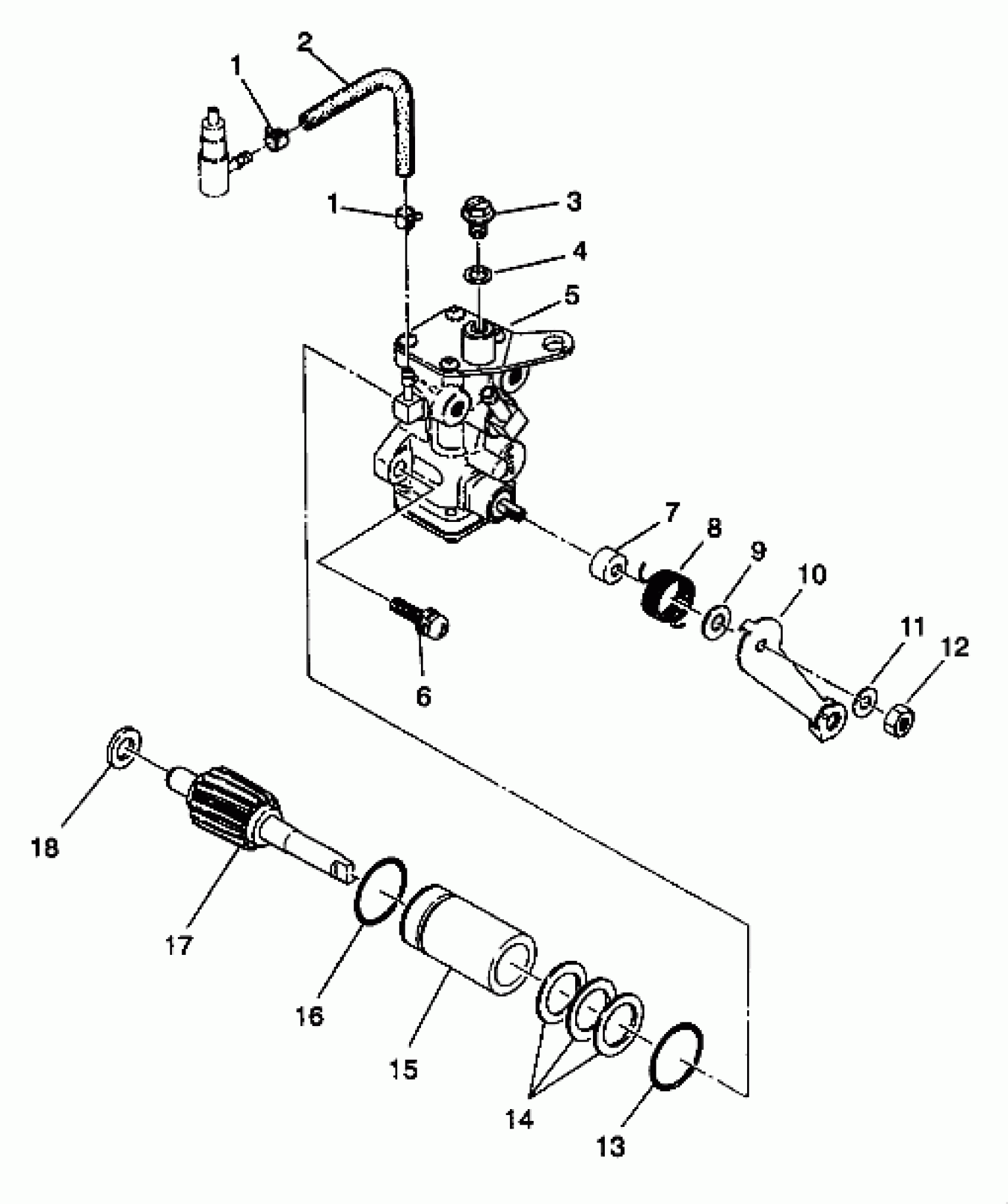

Polaris TRAIL BOSS - W938527 OIL PUMP ASSEMBLY Trail Boss W938527 (4924072407034A) Diagram

#

Description
Price

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

2

PIPE, RUBBER Substituted by 3083140

3083446

Unavailable

3

SCREW-AIR VENT

3083125

Unavailable

4

PACKING(10)

3083126

$4.03

5

OIL PUMP ASM. Substituted by 3085542 (Incl. 3-5, 7-13)

3083806

Unavailable

6

SCREW&WASHER,(10)

3083783

$2.39

7

Cap

3083758

$5.75

8

SPRING-RETURN

3083123

Unavailable

9

Collar, Camshaft

3083757

$4.39

10

LEVER, CONTROL

3083935

Unavailable

11

WASHER-SPRING(10)

3083121

$299.99

12

NUT(10)

3083120

$3.19

13

O RING

3083127

Unavailable

14

SPACER #3

3083673

Unavailable

14

SPACER #2

3083672

Unavailable

14

SPACER #1

3083671

Unavailable

15

BUSHING(OIL PUMP)

3083353

$31.99

16

O RING

3083129

Unavailable

17

Gear, Small

3083429

Unavailable

18

SPACER *

3083428

$1.59
