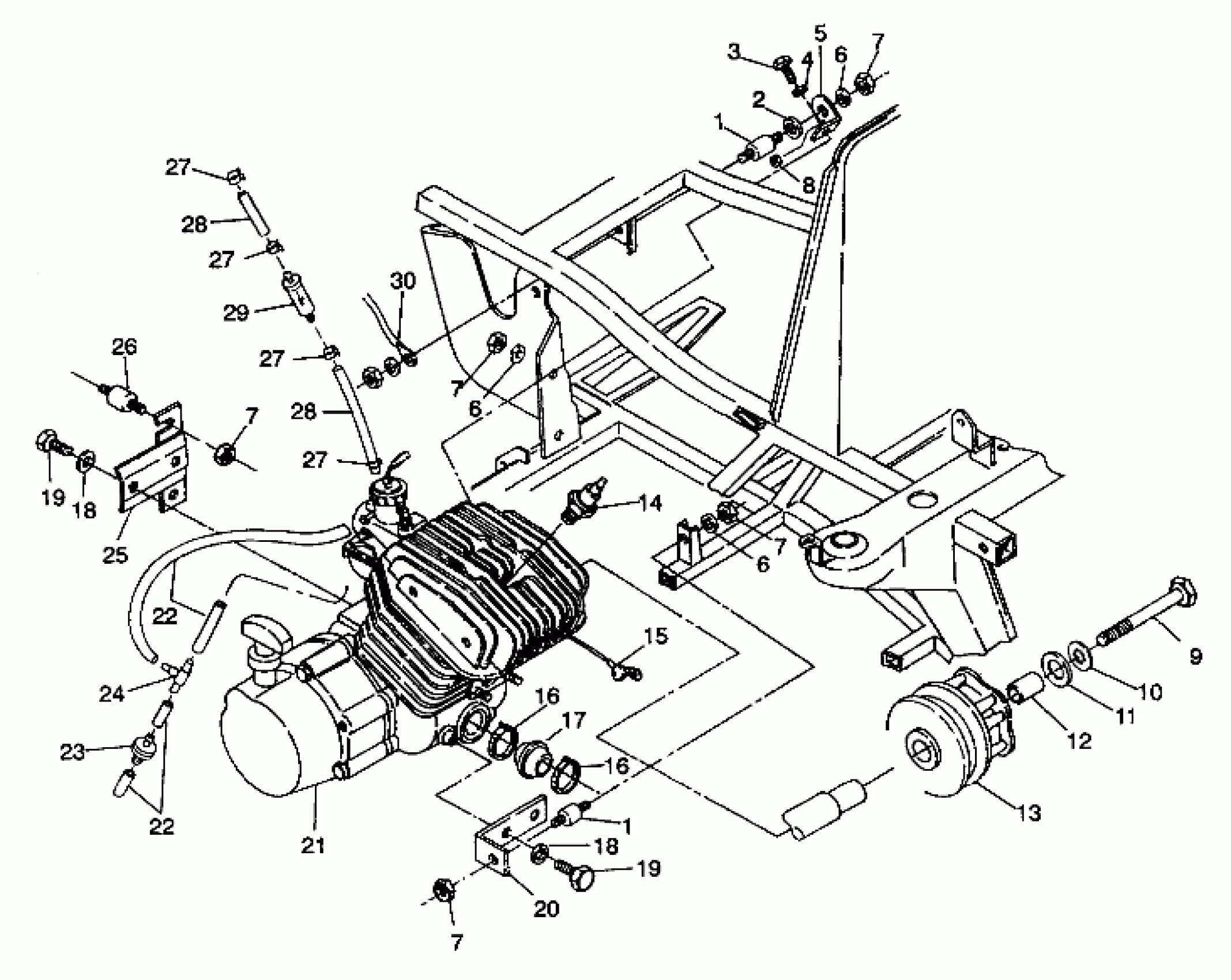

Polaris TRAIL BOSS - W938527 ENGINE MOUNTING Trail Boss W938527 (4924072407004A) Diagram

#

Description
Price

1

MOUNT,MOTOR

3110026

$40.46

1

MOUNT,MOTOR

3110026

$40.46

2

INSULATOR,MOTOR MT.

5430802

$28.32

3

BOLT(10)

7515321

Unavailable

4

LOCK WASHER(10)

7552901

$1.19

5

MOUNT, ENG.,TOP

5220471-067

Unavailable

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

7

NUT-LOCK(10)

7542439

$1.19

7

NUT-LOCK(10)

7542439

$1.19

7

NUT-LOCK(10)

7542439

$1.19

7

NUT-LOCK(10)

7542439

$1.19

7

NUT-LOCK(10)

7542439

$1.19

8

NUT(10)

7541925

$0.79

9

BOLT(10)

7512566

$33.24

10

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

11

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

12

BUSHING-.437 X.770 X.50

5430261

$7.14

13

Asm., Drive Clutch (See Pg.19)

----

Unavailable

14

SPARKPLUG (10)

3070156

$3.97

15

INSULATOR-CABLE

5410346

$7.73

16

CLAMP, NARROW BAND(10)

7080511

$4.76

16

CLAMP, NARROW BAND(10)

7080511

$4.76

17

BOOT,CLUTCH INTAKE

5410421

$11.32

18

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

18

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

19

SCREW(10)

7512490

$3.97

19

SCREW(10)

7512490

$3.97

20

PLATE,FR.MTR.MT.

5220881-067

Unavailable

21

ENG.EC25PF-08 Substituted by 3084717

1211534

Unavailable

22

VENT LINE,1/8,BULK Substituted by 8360009-600

8360009

Unavailable

22

VENT LINE,1/8,BULK Substituted by 8360009-600

8360009

Unavailable

23

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

24

Fitting, Tee

7052005

Unavailable

25

MOUNT, REAR Substituted by 5241056-067

5220757-067

Unavailable

26

MOUNT, MOTOR

3110028

Unavailable

27

CLAMP-HOSE,(10)

7080236

$1.59

27

CLAMP-HOSE,(10)

7080236

$1.59

27

CLAMP-HOSE,(10)

7080236

$1.59

27

CLAMP-HOSE,(10)

7080236

$1.59

28

GAS LINE,(GOODYEAR) [Cannot Purchase as Assembly]

8450042

Unavailable

28

GAS LINE,(GOODYEAR) [Cannot Purchase as Assembly]

8450042

Unavailable

29

FILTER,SMALL,IN-LINE,(10)

2530009

$6.46

30

CABLE,GROUND/ENG.

4010067

Unavailable
