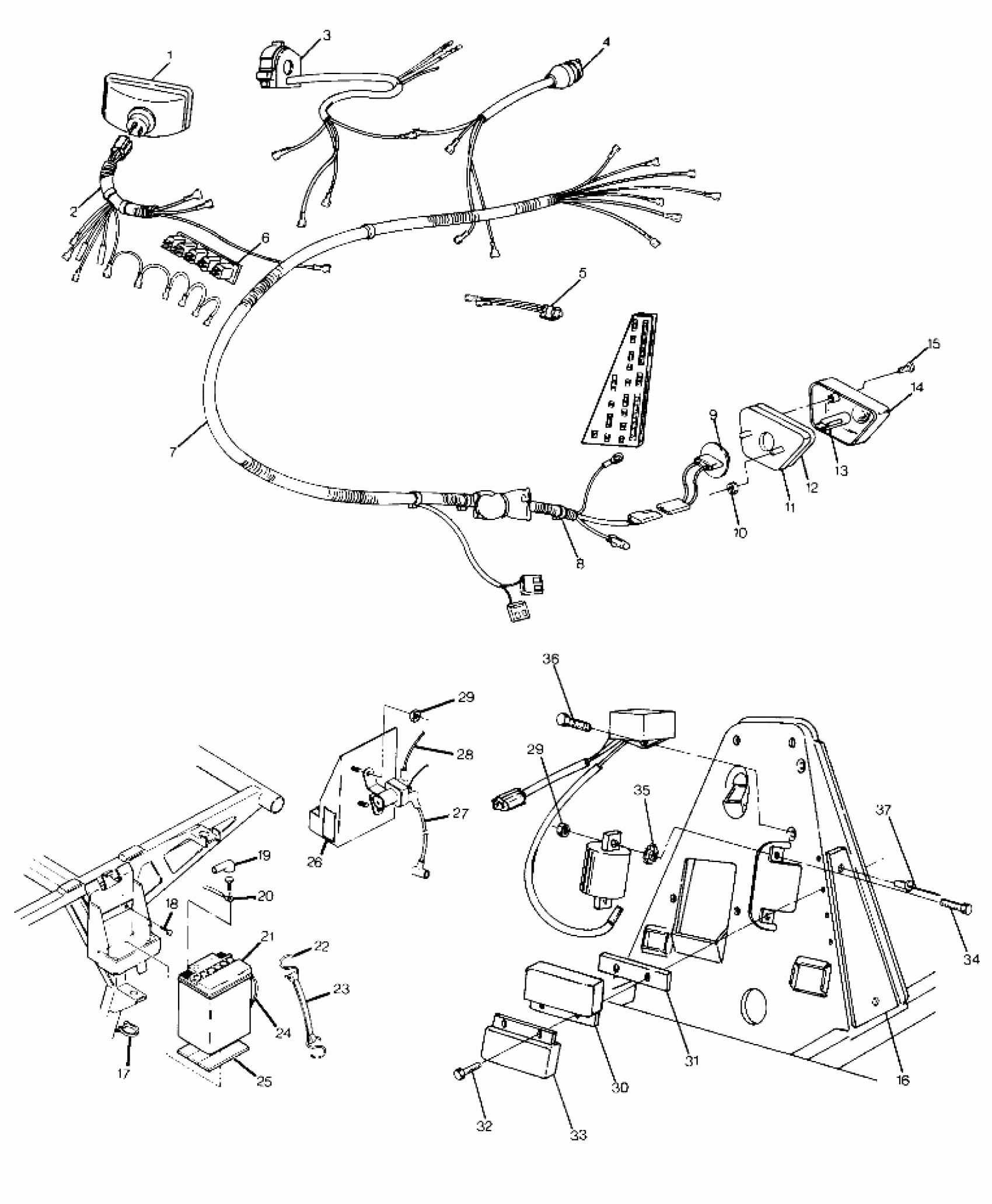

Polaris TRAIL BOSS - W898527 Wiring Harness (4916331633027A) Diagram

#

Description
Price

1

HEADLIGHT ASM.

4032038

Unavailable

2

HARNESS, HEADLIGHT Substituted by 2460427

2460283

Unavailable

3

SW,HI/LO/ST. Substituted by 4110157

4110087

Unavailable

4

SWITCH,IGN.(MODIFIED) Substituted by 4110140

4110086

$137.60

5

SWITCH,O'RIDE,REV.LIMIT

4110072

Unavailable

6

STRIP, SOCKET

4032037

$27.19

7

HARNESS,MAIN WIRE

2460278

Unavailable

8

STRAP, BLK

7080272

Unavailable

9

SOCKET,TAILLIGHT ASM.

4032033

Unavailable

10

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

11

BACKING,TAILLIGHT

4032036

Unavailable

12

GASKET,TAILLIGHT

4032031

Unavailable

13

BULB,TAILLIGHT,(10)

4030040

$8.79

14

LENS, TAILLIGHT Substituted by 4032046

4032030

Unavailable

15

Screw, Taillight

4032029

$4.79

16

BOARD,TERMINAL

4040022

Unavailable

17

CLAMP, POLY

7080303

Unavailable

18

SCREW(10)

7511942

Unavailable

19

INSULATOR-CABLE

5410346

$6.39

20

CABLE,BATTERY/ENGINE

4010066

Unavailable

21

Battery

4140006

$99.99

22

HOOK-BATT.H/D(10)

7010032

$1.59

23

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

23

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

24

LINE,VENT,(38.0'') Substituted by 8360009-600

5521087

Unavailable

25

PAD-BATTERY

5810290

$7.27

26

DECAL, BATTERY [No Longer Available]

7072606

Unavailable

27

CABLE,SOLENOID/STARTER

4010064

Unavailable

28

CABLE,BATTERY/SOLENOID

4010065

Unavailable

29

NUT(10)

7541925

$1.49

29

NUT(10)

7541925

$1.49

30

RECTIFIER, VOLTAGE

4060087

Unavailable

31

HEATSINK Substituted by 5210650

5211184

Unavailable

32

SCREW(10) Substituted by 7512018

7512013

Unavailable

33

LIMITER,REV.SPEED

4060085

Unavailable

34

SCREW(10)

7512007

$3.99

35

WASHER(10)

7571602

$4.79

36

BOLT(10)

7512232

$1.49

37

RIVET

7621335

Unavailable
