Swing Arm Weldment and Rear Shock Assembly (4916331633021A)

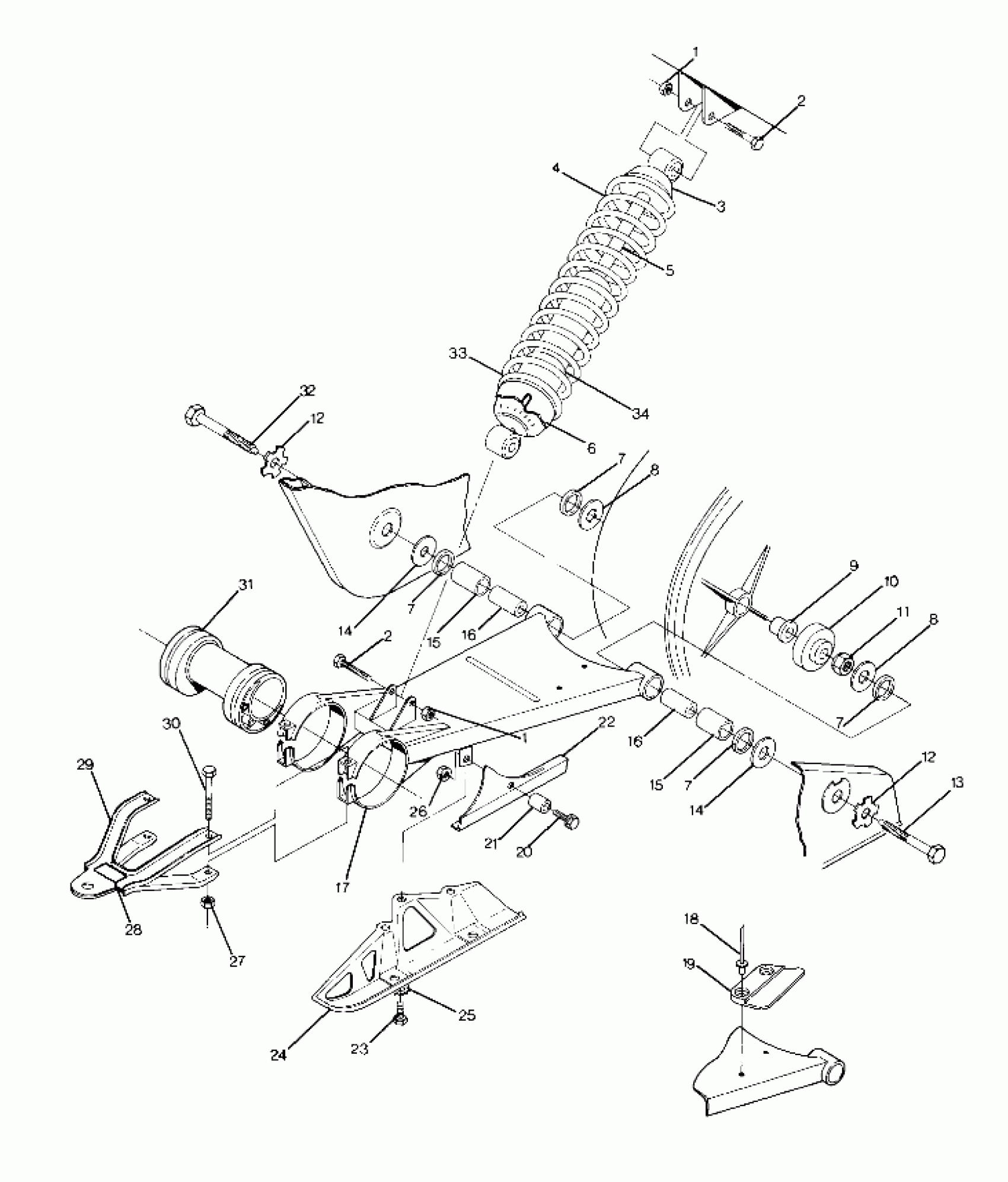

Polaris TRAIL BOSS - W898527 Swing Arm Weldment and Rear Shock Assembly (4916331633021A) Diagram
#
1
NUT-LOCK(10)
7542439
$1.49
1
NUT-LOCK(10)
7542439
$1.49
2
BOLT(10)
7515415
$1.49
2
BOLT(10)
7515415
$1.49
3
RETAINER, SHOCK
5222118
Unavailable
4
SPRING,COMP.REAR Substituted by 7041204-067
7041204
Unavailable
5
SHOCK, REAR Substituted by 7041448
7041218
$146.71
6
CAM,ADJUSTING SPRING
5630334
$32.37
7
SEAL,OIL
3610016
$28.32
7
SEAL,OIL
3610016
$28.32
7
SEAL,OIL
3610016
$28.32
7
SEAL,OIL
3610016
$28.32
8
WASHER(10)
7555779
Unavailable
8
WASHER(10)
7555779
Unavailable
9
BUSHING,SWING ARM MT.
5630267
Unavailable
10
ROLLER,CHAIN GUIDE
5431003
Unavailable
11
NUT,CROWN LOCK(10)
7542601
Unavailable
12
PLATE,BOLT LOCK
5220958
$35.99
12
PLATE,BOLT LOCK
5220958
$35.99
13
BOLT, SHOULDER
7512702
Unavailable
14
BUSHING, MACH.(10)
7555752
Unavailable
14
BUSHING, MACH.(10)
7555752
Unavailable
15
BEARING
3576507
Unavailable
15
BEARING
3576507
Unavailable
16
BUSHING,SWING ARM
5010237
Unavailable
16
BUSHING,SWING ARM
5010237
Unavailable
17
ARM, SWING,(BLUE) Substituted by 1580026-21
1580026
Unavailable
18
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
19
GUIDE, CHAIN
5431017
$1.83
20
SCREW-FLANGED(10)
7515304
$5.59
21
Bushing
5332828
$9.59
22
GUARD,CHAIN(MODIFIED) Substituted by 5430776
5430952
$34.74
23
SCREW(10)
7512252
Unavailable
24
GUARD, SWING ARM Substituted by 1040166-067
1040166
Unavailable
25
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
26
NUT LOCK(10)
7542321
$1.49
27
NUT,FLANGE(10)
7542522
$5.59
28
DECAL, HITCH Substituted by 7078261
7072533
Unavailable
29
HITCH WELD. Substituted by 1040162-067
1040162
Unavailable
30
BOLT(10)
7512569
Unavailable
31
HOUSING, AXLE
5130663
Unavailable
32
BOLT, SHOULDER
7512701
$23.99
33
ADAPTER,SPRING,SEAT
5630351
Unavailable
34
SLEEVE,SPRING PROTECTOR
5431032
$31.99
