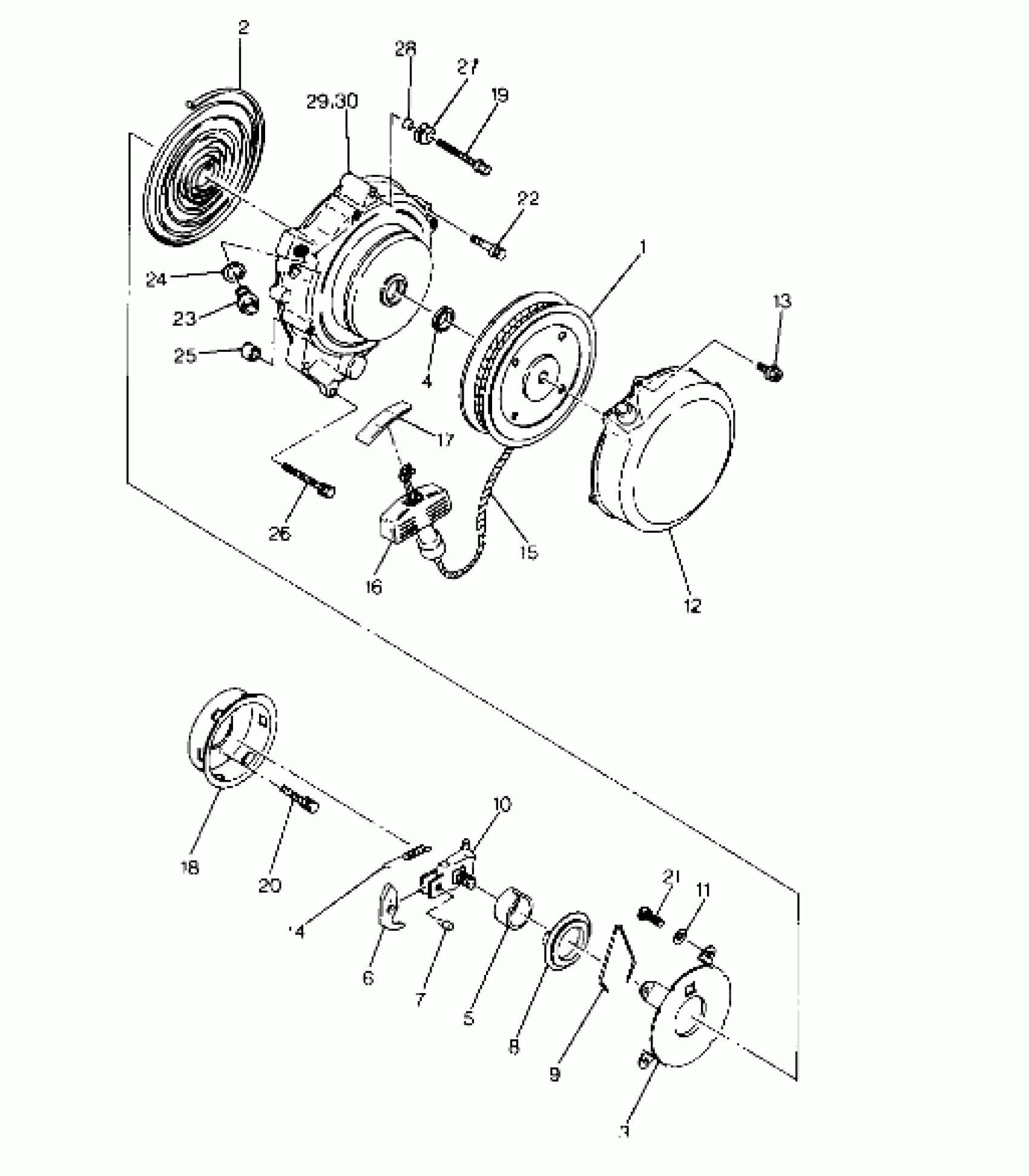

Polaris TRAIL BOSS - W898527 Recoil Starter Assembly (4916331633037A) Diagram

#

Description
Price

-

STARTER,RECOIL,COMPL. (Incl. 1-18)

3083924

Unavailable

1

REEL, COMPL.

3083814

$97.13

2

STARTER CASE,B UNIT [Item NotAvailable]

3083837

Unavailable

3

Case, Spring

3083925

Unavailable

4

Grommet

3083817

Unavailable

5

Hook, Spring

3083818

$39.99

6

Ratchet

3083819

Unavailable

7

Pin, Ratchet

3083820

Unavailable

8

GUIDE,RATCHET

3083821

Unavailable

9

SPRING,FRICTION

3083912

$25.59

10

GUIDE, COMPL.

3083913

Unavailable

11

WASHER, SPRING(10)

3083917

Unavailable

12

CASE,STARTER,COMPL.

3083914

Unavailable

13

Bolt, Flange

3083826

Unavailable

14

Spring, Return

3083827

$11.59

15

ROPE,100 FT,NYL.STARTER

2870621

Unavailable

16

Knob, Starter

3083659

Unavailable

17

Cap, Knob

3083660

Unavailable

18

Pulley, Starting

3083915

Unavailable

19

BOLT & WASHER ASM.

3083926

Unavailable

20

BOLT&WASHER ASM. Substituted by 3081665

3083792

$3.17

21

SCREW, BINDE

3083916

Unavailable

22

BOLT&WASHER ASM.

3082228

Unavailable

23

PLUG Substituted by 3086749

3083453

Unavailable

24

GASKET

3082956

$4.84

25

BUSHING, STARTER

3083669

Unavailable

26

BOLT&WASHER

3083729

$3.49

27

MOUNTING,RUBBER

3083731

$4.95

28

COLLAR

3083732

Unavailable

29

CASE,STARTER,B UNIT

3083911

$271.99

30

Starter Case B

-------

Unavailable
