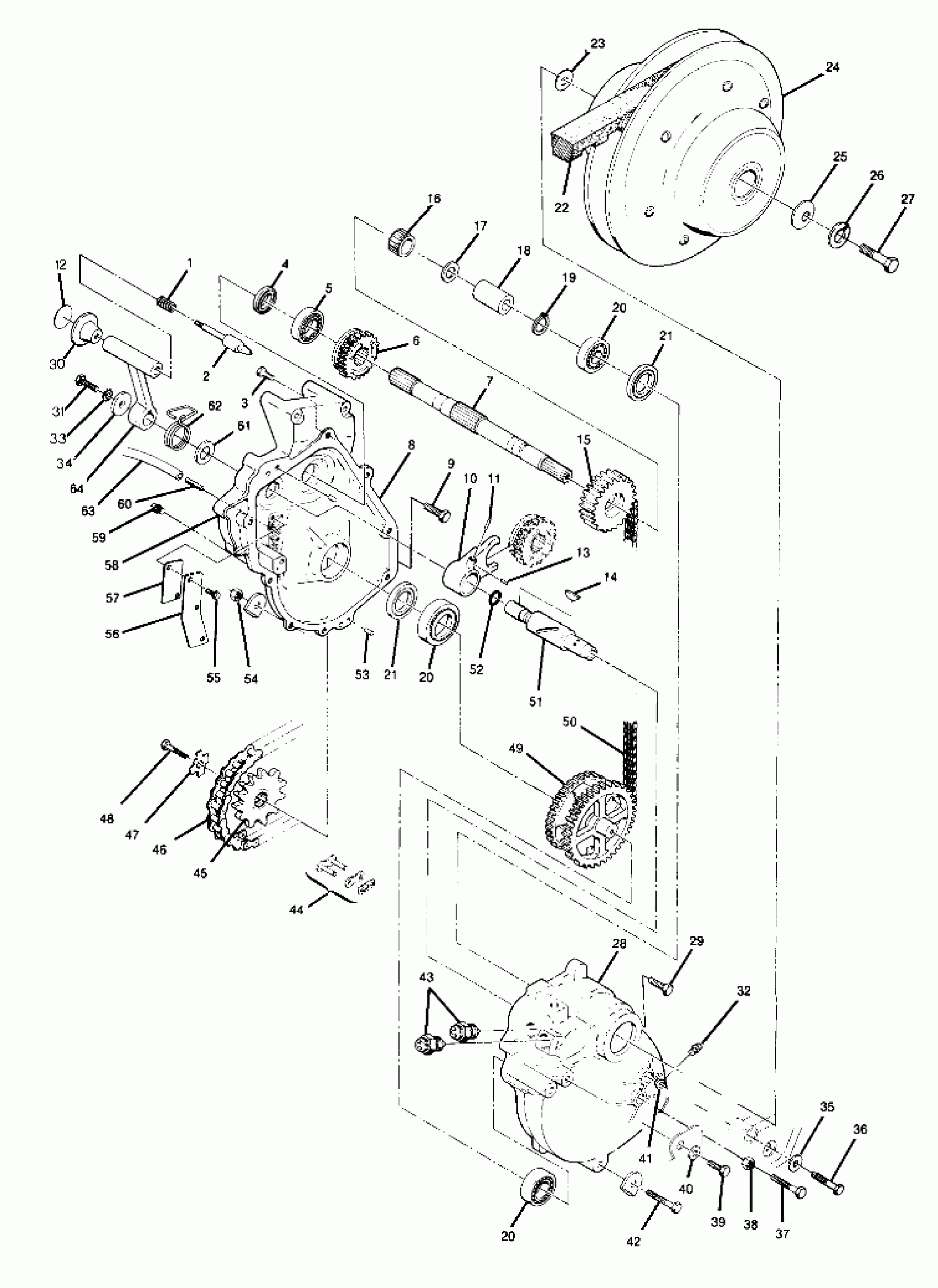

Polaris TRAIL BOSS - W898527 Gearcase Assembly (4916331633025A) Diagram
#
1
SPRING,SHIFT LEVER
7041170
$36.03
2
SHAFT,SHIFT LEVER
5020470
$24.33
3
SCREW(10)
7512242
$2.39
4
SEAL, OIL
3610014
Unavailable
5
BEARING, BALL
3514001
$19.99
6
PINION, REVERSE
5130621
$152.37
7
SHAFT, INPUT
5020467
Unavailable
8
Desc not available [No Longer Available]
8570041
Unavailable
9
SCREW(10)
7512225
$3.99
10
FORK, SHIFT Substituted by 5130662
5130594
Unavailable
11
PIN, DOWEL(10)
7661819
Unavailable
12
DECAL,SHIFT KNOB [No Longer Available]
7072375
Unavailable
13
PIN, SPRING(10)
7661206
Unavailable
14
WEIGHT, KEY(10)
7721112
Unavailable
15
GEAR, FWD.
5130620
$202.17
16
BEARING, NEEDLE
3554502
Unavailable
17
BUSHING, MACH.(10)
7555752
Unavailable
18
SPACER, INPUT SHAFT
5010210
$17.30
19
RING, RET.(10)
7710411
Unavailable
20
BEARING,205,W/O SEAL
3514304
$15.99
20
BEARING,205,W/O SEAL
3514304
$15.99
20
BEARING,205,W/O SEAL
3514304
$15.99
21
SEAL, OIL
3610015
Unavailable
21
SEAL, OIL
3610015
Unavailable
22
BELT-DRIVE(5) Substituted by 3211077
3211048
Unavailable
23
SPACER, DRIVEN
5211041
Unavailable
24
CLUTCH, DRIVEN Substituted by 1322180
1322136
Unavailable
25
WASHER, DOMED(10)
5220646
$2.39
26
LOCK WASHER(10)
7552901
$1.49
27
SCR-HH-5/16-18X4 GR5 ZY3
7515327
$5.59
28
GEARCASE, LH
5130677
Unavailable
29
SCREW(10)
7512243
Unavailable
30
KNOB
7030006
Unavailable
31
BOLT(10) Substituted by 7512240
7512111
Unavailable
32
PLUG,PIPE,MAGNETIC
7051512
Unavailable
33
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
34
WASHER(10)
7558221
$2.39
35
PLATE,BOLT LOCK
5220958
$35.99
36
BOLT, SHOULDER
7512701
$23.99
36
BOLT, SHOULDER
7512702
Unavailable
37
BOLT(10)
7515485
$3.03
38
NUT(10)
7542404
$1.59
39
BOLT(10) Substituted by 7512492
7515458
Unavailable
40
WASHER(10)
7552603
$1.49
41
BUSHING,SWING ARM MT.
5630267
Unavailable
42
BOLT(10)
7515472
$2.39
43
SW,REV./NEUT.INDIC.
4110062
$32.37
44
CONNECTOR LINK
3225024
$19.99
45
SPKT, 12T (Opt.)
3221044
Unavailable
45
SPKT, 11T (Opt.)
3221043
Unavailable
45
SPKT,13T,(SPLINED) Substituted by 3221041
3221045
$42.46
46
CHAIN,DRIVE, 88P Substituted by 3224056-088
3224042
Unavailable
47
WASHER,SHAKEPROOF,5/16
7577902
Unavailable
48
BOLT(10)
7512391
Unavailable
49
OUTPUTSHAFT W/GEAR ASM.
5130644
Unavailable
50
CHAIN, SILENT
3224038
Unavailable
51
SHAFT, SHIFT [No Longer Available]
5130676
Unavailable
52
O RING(10)
5410440
$4.84
53
PIN, DOWEL(10)
7661904
Unavailable
54
NUT LOCK(10)
7542403
$3.99
55
SCREW(10)
7512208
$3.99
56
PLATE, VENT
5211036
Unavailable
57
GASKET, VENT
5810305
Unavailable
58
GEARCASE, RH
5130611
Unavailable
59
PLUG, PIPE(10)
7051511
Unavailable
60
PIN, SPIRAL(10)
7661505
$1.10
61
MACHINERY BUSHING(10)
7556301
$3.19
62
SPRING,SHIFT LEVER,OUTER
7040151
Unavailable
63
LINE,VENT,(38.0'') Substituted by 8360009-600
5521087
Unavailable
64
LEVER, SHIFT
5430847
Unavailable
64
OIL, GEARCASE Substituted by 2870337
8690042
Unavailable
