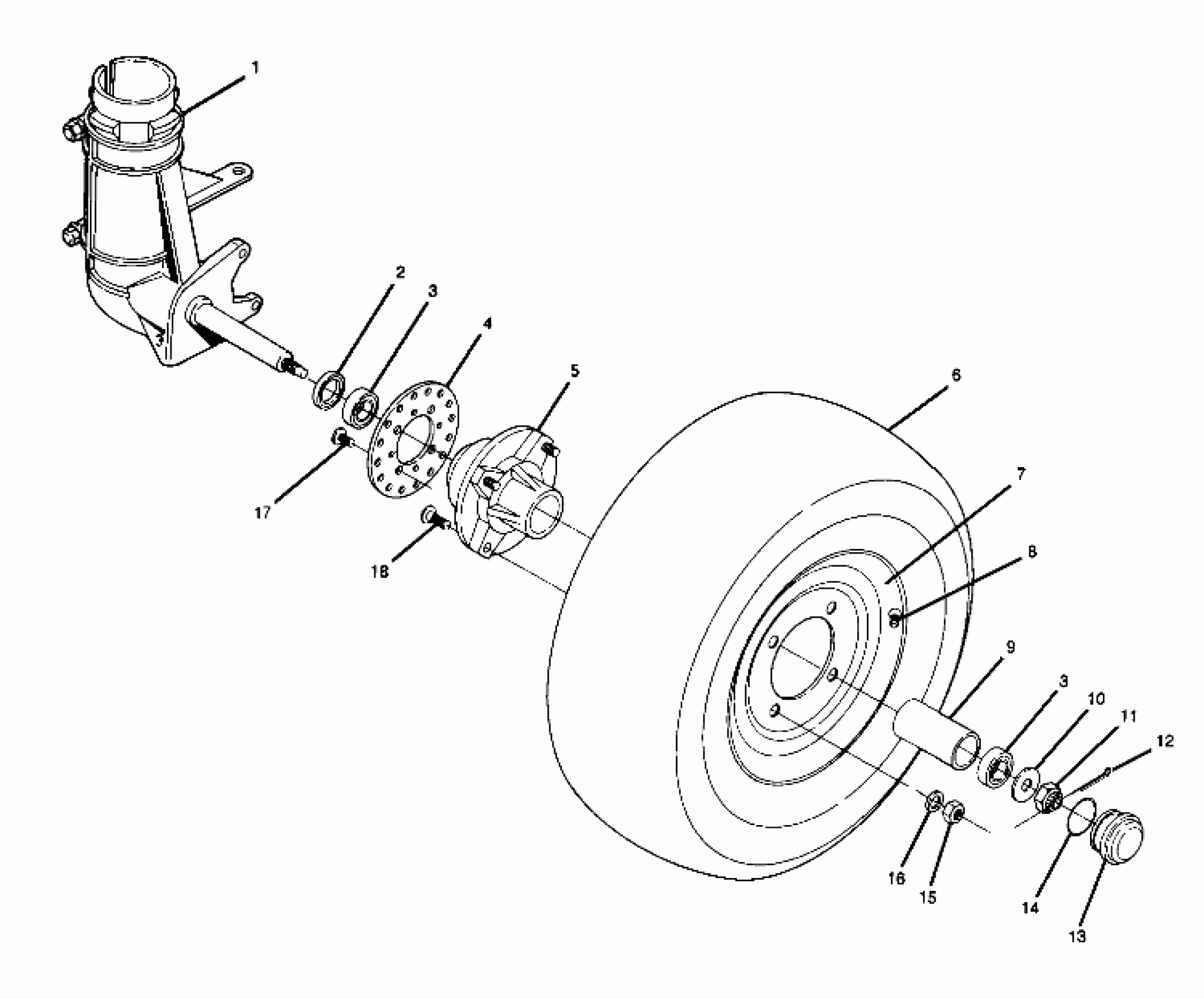

Polaris TRAIL BOSS - W898527 Front Wheel Assembly (4916331633015A) Diagram

#

Description
Price

-

SUPPORT,RH STRUT&SPINDLE Substituted by 5130804

5130656

Unavailable

1

SUPPORT,LH STRUT&SPINDLE Substituted by 5130803

5130655

Unavailable

2

SEAL,FRONT HUB

3610020

Unavailable

3

BEARING, BALL

3514001

$19.99

3

BEARING, BALL

3514001

$19.99

4

DISC BRAKE,FRONT

5211084

$124.99

5

HUB,WHEEL,FRONT

5130658

Unavailable

6

TIRE,FR,(22X8-10)

5410408

Unavailable

7

RIM,FRONT,PRIMED Substituted by 1520118 (Primed)

1520127

Unavailable

8

VALVE-RIM

1525017

$5.59

9

SPACER,FRONT HUB [No Longer Available]

5010236

Unavailable

10

WASHER(10)

7555721

$1.49

11

NUT(10)

7542712

$9.59

12

COTTER PIN(10)

7661407

$4.79

13

CAP, HUB

5431018

$14.39

14

O RING

5410470

$2.41

15

NUT HEX(10)

7542301

$1.59

16

LOCK WASHER(10)

7552901

$1.49

17

SCREW(10)

7515314

Unavailable

18

STUD,WHEEL,5/16-18(10)

7515330

Unavailable

18

LOCTITE, 242 [No Longer Available]

8570010

Unavailable
