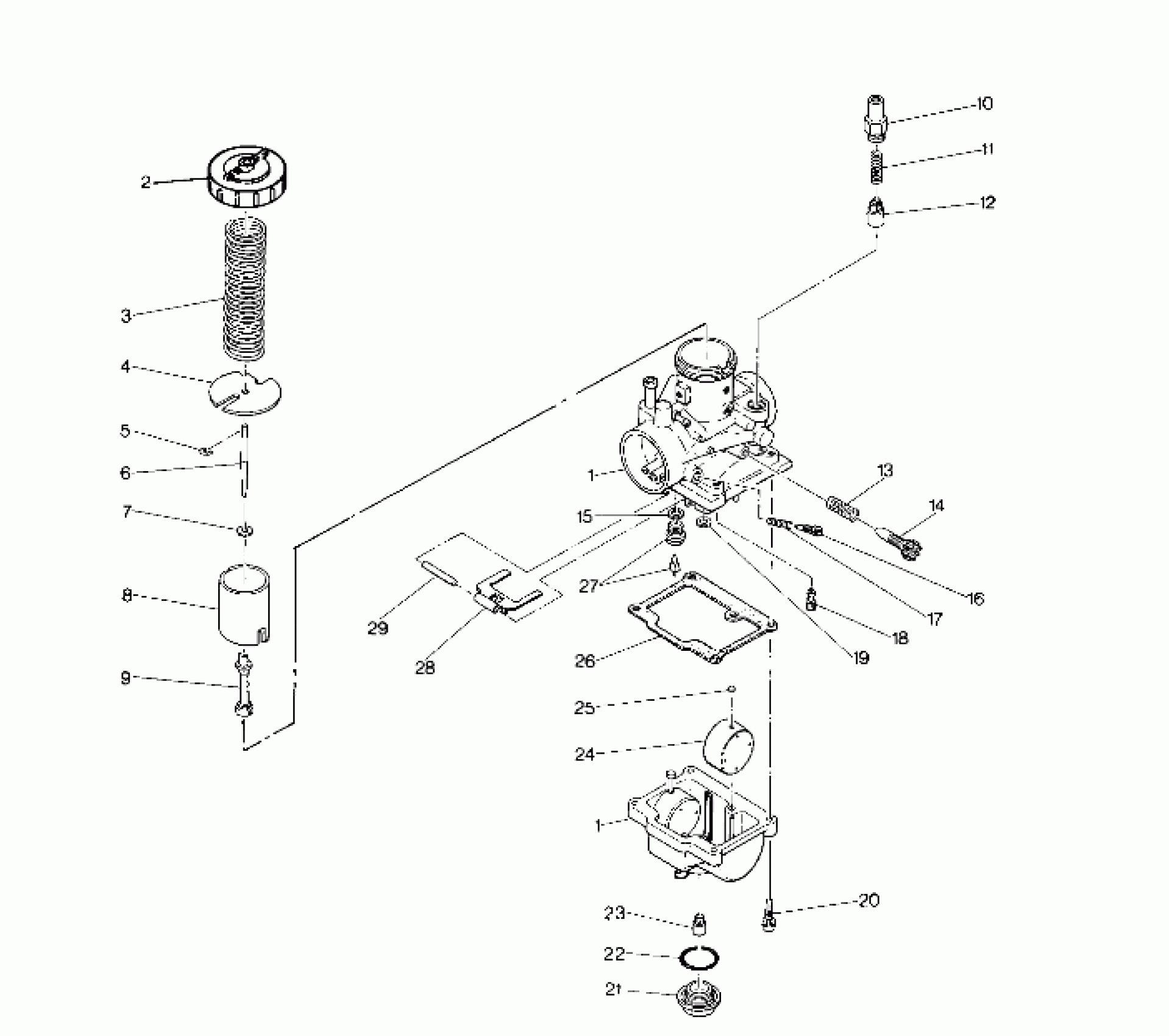

Polaris TRAIL BOSS - W898527 Carburetor Assembly (4916331633034A) Diagram
#
Description
Price
1
CARBURETOR Substituted by 3130424
3130383
Unavailable
1
CARBURETOR Substituted by 3130424
3130383
Unavailable
2
TOP,MIX CHAMBER
3130060
Unavailable
3
SPRING,THROTTLE
3130354
$28.32
4
PLATE,THROTTLE
3130002
$20.22
5
E RING(10) Substituted by 3130508
3130003
Unavailable
6
JET NEEDLE
3130155
$24.27
7
Washer
3130355
$7.19
8
VALVE,THROTTLE,(2.0)
3130420
Unavailable
9
JET,NEEDLE(0-4),169 (169)
3130409
$39.99
10
Cap, Plunger
3130359
$14.56
11
SPRING,PLUNGER
3130006
$8.89
12
PLUNGER ASM, STARTER
3130328
$32.37
13
SPRING,THROTTLE ADJ.
3130010
$8.89
14
Screw, Throttle Stop
3130324
$19.84
15
PACKING(10) Substituted by 3130017
3080524
Unavailable
16
SCREW,AIR
3130011
$19.99
17
SPRING,AIR ADJUST
3130012
$8.89
18
JET,PILOT,#40(10)
3130067
$10.99
19
WASHER (10)
3130014
$1.59
20
SCREW & WASHER(10)
3130025
$3.19
21
BOLT,BANJO Substituted by 3130321
3082471
Unavailable
22
O RING
3130239
Unavailable
23
JET,MAIN,HX.HD.#145
3130112
Unavailable
24
FLOAT ASM Substituted by 3130021
3080534
Unavailable
25
CAP,(10)
3130237
$4.03
26
PACKING,FLOAT CHAMBER
3130020
$16.17
27
VALVE, NEEDLE
3130360
$43.99
28
ARM,FLOAT
3130018
$24.27
29
PIN, FLOAT
3130361
$8.89
