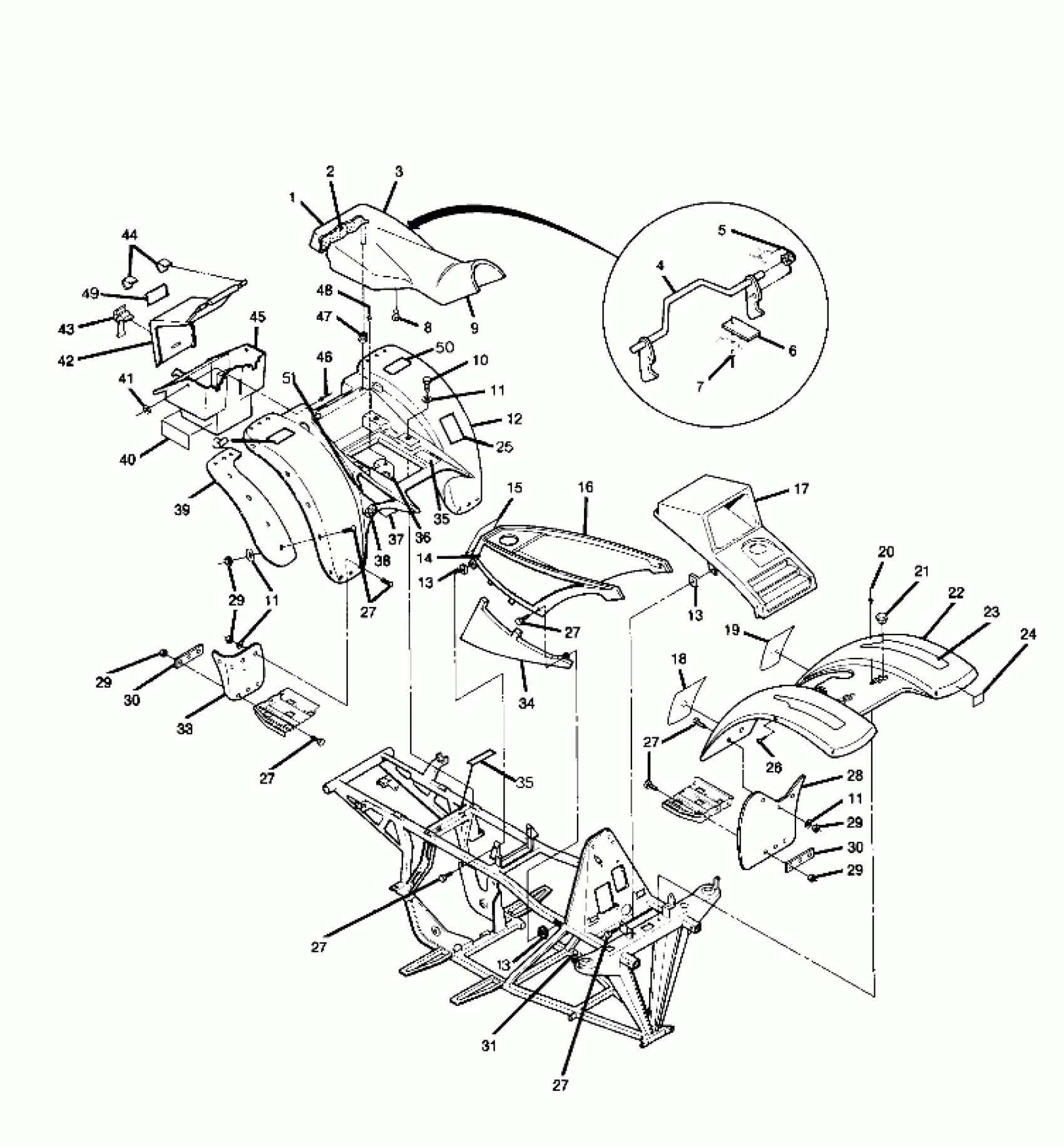

Polaris TRAIL BOSS - W898527 Body Assembly (4916331633001A) Diagram

#

Description
Price

1

SEAT ASM,T.B.SPORT Substituted by 2681724-157

2681393

Unavailable

2

SEAT BUN Substituted by 2681393

5431077

Unavailable

3

COVER,SEAT,T.B.

2681392

Unavailable

4

LATCH,SEAT

1011558

Unavailable

5

SPRING, LATCH

7041158

Unavailable

6

BRACKET,LEVER RETAINER

5211033

$34.99

7

BLIND RIVET(50)

7621403

$1.19

8

Bumper, Rubber

5410414

$3.17

9

BASE, SEAT Substituted by 2681393

5430974

Unavailable

10

BOLT(10)

7512232

$1.19

11

WASHER(10)

7558301

$1.19

11

WASHER(10)

7558301

$1.19

11

WASHER(10)

7558301

$1.19

12

CAB, REAR [No Longer Available] (Fender) - No. 22

5430991

Unavailable

13

NUT, SPEED(10)

7670060

$3.97

13

NUT, SPEED(10)

7670060

$3.97

13

NUT, SPEED(10)

7670060

$3.97

14

DECAL,STROBE,LH [No Longer Available]

7072696

Unavailable

14

DECAL,STROBE,RH [No Longer Available]

7072697

Unavailable

15

DECAL,AGE WARN.(CPSC) Substituted by 7074827

7072692

Unavailable

16

COVER, FUEL TANK Substituted by 5431197-133

5430972

Unavailable

17

COVER, OIL TANK [No Longer Available]

5430973

Unavailable

18

DECAL(CPSC),WARNING Substituted by 7073147

7072720

Unavailable

19

DECAL,WARNING(CPSC) [No Longer Available]

7072693

Unavailable

20

RIVET(50)

7621457

$1.19

21

PLUG, RACK HOLE

5430887

Unavailable

22

CAB, FRONT [No Longer Available]

5430990

Unavailable

23

DECAL,FR.FENDER [No Longer Available]

7072703

Unavailable

24

LABEL, 'U.S.A.' [No Longer Available]

7073025

Unavailable

25

DECAL(CPSC),TIRE PRESS(T.B.) [No Longer Available]

7072793

Unavailable

26

CLIP, PUSH-ON(10)

7670052

$1.98

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

28

MUDFLAP, LH FRONT Substituted by 5850082-070

5850082

$11.51

28

MUDFLAP, RH FRONT Substituted by 5850083-070

5850083

Unavailable

29

NUT-LOCK(10)

7542122

$1.19

29

NUT-LOCK(10)

7542122

$1.19

29

NUT-LOCK(10)

7542122

$1.19

29

NUT-LOCK(10)

7542122

$1.19

30

BRKT, MUD FLAP Substituted by 5211131-067

5211131

Unavailable

30

BRKT, MUD FLAP Substituted by 5211131-067

5211131

Unavailable

31

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

33

MUDFLAP,LH,LOW,REAR

5850076

Unavailable

33

MUDFLAP,RH,LOW REAR

5850077

$23.65

34

COVER,SIDE PANEL,LH [No Longer Available]

5430970

Unavailable

34

COVER,SIDE PANEL,RH [No Longer Available]

5430971

Unavailable

35

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

35

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

36

BRKT,R.HOLDDOWN

5220880

Unavailable

37

TAPE,FOIL,R.CAB (Inside)

5810416

Unavailable

38

DECAL,SHIFT PATTERN [No Longer Available]

7072525

Unavailable

39

FLAP,MUD,LH REAR

5850060

Unavailable

39

FLAP,MUD,RH REAR

5850061

Unavailable

40

TAPE, FOIL

5810310

Unavailable

41

WASHER,13/64X1/2X18GA,FL-Y

7558212

$0.79

42

LID,TOOL BOX

5430910

Unavailable

43

STRAP,TOOL COMPARTMENT

5410425

Unavailable

44

CLIP, LID HINGE(10)

7670050

Unavailable

45

BOX,TOOL COMP.

5430882

Unavailable

46

RIVET(50)

7621462

$1.19

47

GROMMET

5410413

Unavailable

48

RIVET,3/16X.402(50)

7621432

$1.19

49

DECAL(CPSC),PASS.WRN. [No Longer Available]

7072805

Unavailable

50

DECAL(CPSC),WARN,HVY.LOAD [No Longer Available]

7072786

Unavailable

51

DECAL, CAB, REAR Substituted by 7072808

7072704

Unavailable

51

DECAL,LH,R.CAB [No Longer Available]

7072794

Unavailable
